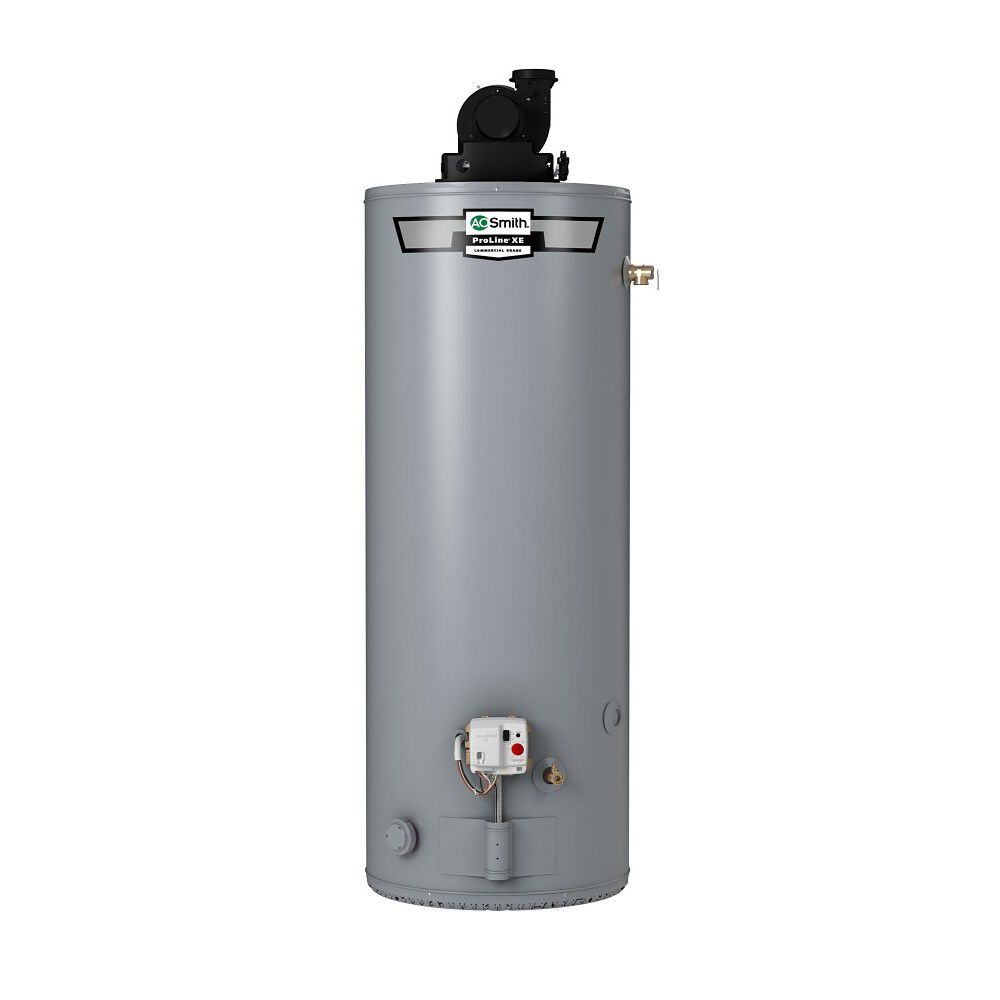

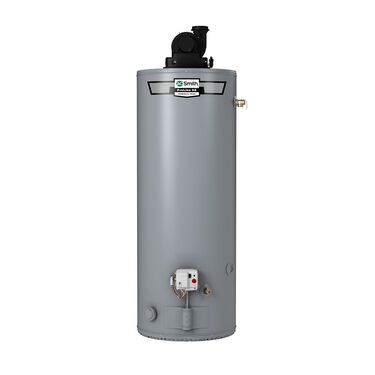

ProLine® XE 75-Gallon Power Vent Liquid Propane Water Heater

Model GPVX-75L
3.7 out of 5 Customer Rating
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getAggregateRating, 18ms
  • reviews, product
  • bvseo-msg: Unsuccessful GET. status = 'ERROR', msg = 'Not Found.';
Capacity (Gallons)
Fuel Source
Maximum BTU's
Side Loop

  • Delivers 116-gallon first hour rating
  • 76,000 BTU input power vent design delivers up to 0.69 Uniform Energy Factor
  • Patented eco-friendly Green Choice® Gas Burner design reduces NOx emissions by up to 33% and complies with Low-NOx emission requirements
  • Product Details
    • Delivers 116-gallon first hour rating
    • 76,000 BTU input power vent design delivers up to 0.69 Uniform Energy Factor
    • Patented eco-friendly Green Choice® Gas Burner design reduces NOx emissions by up to 33% and complies with Low-NOx emission requirements
    • Automatic pilot relight system shuts reduces gas consumption and eliminates nuisance pilot outages
    • Includes side mounted recirculation taps for easy installation with combination space heating/potable water heating applications
    • Patented Blue Diamond® glass tank lining protects against corrosion
    • DynaClean™ automatic cleaning system protects against sediment build-up
    • Stainless steel Coregard™ anode rod protects against corrosion longer than ordinary anodes
    • Commercial-grade brass drain valve for durable and easy operation
    • 6-year limited tank and parts warranty

    • The ProLine® XE 75-Gallon Power Vent Liquid Propane Gas Water Heater is engineered to maximize efficiency while offering greater flexibility in installation options. Featuring a 75-gallon (nominal) tank and a 76,000 BTU gas burner, the GPVX-75L Power Vent delivers a recovery rate of 80.4 gallons per hour. It carries a 6-year limited warranty, and meets Low NOx emission requirements. Environmentally-friendly insulation and factory-installed heat trap nipples reduce heat loss for maximum energy savings. This ProLine® XE water heater is designed with A. O. Smith's superior commercial-grade tank protection. Advanced tank features include stainless steel Coregard™ anode rod, Blue Diamond® glass lining and DynaClean™ automatic sediment-cleaning system, all designed to help protect the tank from the corrosive effects of water and extend the life of the water heater. A. O. Smith’s ProLine® water heaters are residential products built to commercial-grade standard and are only available for purchase through professional wholesalers and contractors.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    75 Gallons
    Rated Storage Volume
    72 Gallons
    UEF
    0.69
    Thermal Efficiency
    82%
    Maximum BTUs
    76,000
    Power Source
    GAS
    Limited Tank Warranty
    6 Years
    Limited Parts Warranty
    6 Years
    T&P Relief Valve
    TRUE
    Water Connection Location
    TOP
    Water Connection Size
    0.75"
    Emissions
    Low NOx
    First Hour Rating
    116 Gallons
    ASME Certified
    No
    Amperes
    5
    Blanket Included
    No
    Destination Country
    US
    Digital Display
    true
    Flue Diameter
    5.00
    Fuel Source
    PROPANE
    Height to Gas Valve
    13.75
    Height to T&P
    53.25
    Ignition Type
    Electronic Hot Surface Igniter
    Installation Type
    INDOOR
    Application
    RESIDENTIAL
    Product Tier
    ProLine® XE
    Recovery Rise at 90°F
    84
    Shipping Height
    72.25
    Shipping Length
    35.2
    Shipping Width
    27.38
    Side Loop
    Yes
    Voltage
    120
    Dimension & Venting
    Type
    Water Heater
    Height
    61.25"
    Diameter
    26 in."
    Shipping Weight
    277lbs
    Vent Type
    Power Vent
    Find a Replacement
    Current Product
    Option 2
    ProLine® XE 75-Gallon Power Vent Liquid Propane Water Heater
    ProLine® XE Ultra-Low NOx Indoor 199,000 BTU Condensing Natural Gas Tankless Water Heater
    GPVX-75L
    ATI-540H
    Rebates up to $300 +
    Rebates up to $300 +
    Nominal Capacity
    75 Gallons
    Rated Storage Volume
    72 Gallons
    Diameter
    26 in."
    Width
    17.75"
    Depth
    33.11"
    11.25"
    Height
    61.25"
    23.63"
    Shipping Weight
    277lbs
    70lbs
    Power Source
    GAS
    GAS
    Limited Tank Warranty
    6 Years
    15 Years
    Limited Parts Warranty
    6 Years
    5 Years
    T&P Relief Valve
    TRUE
    Water Connection Location
    TOP
    BOTTOM
    Water Connection Size
    0.75"
    First Hour Rating
    116 Gallons
    Thermal Efficiency
    82%
    0%
