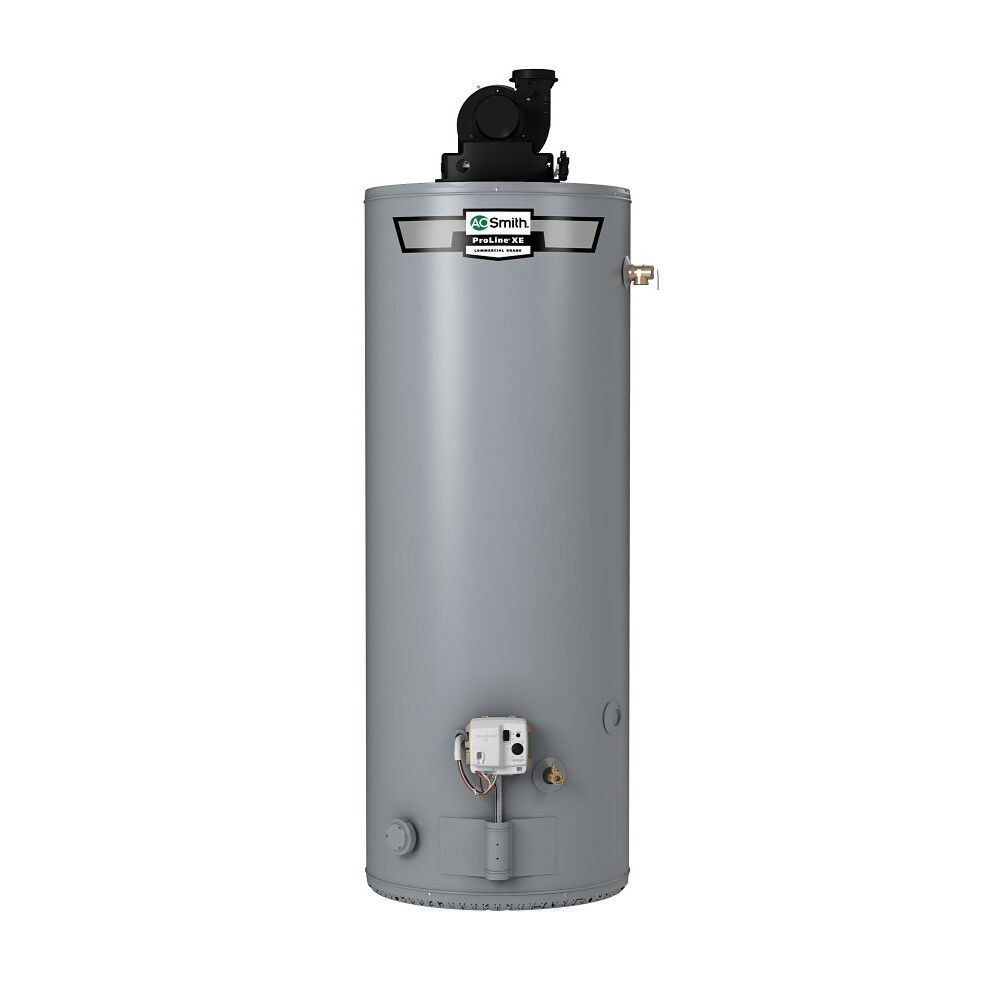

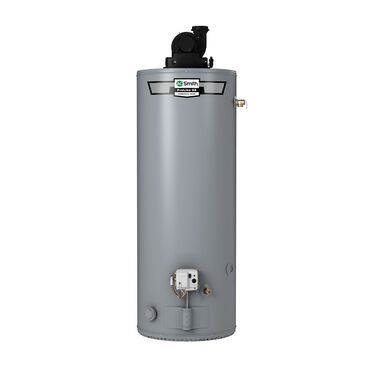

ProLine® XE 75-Gallon Power Vent Natural Gas Water Heater

Model GPVX-75L
4.5 out of 5 Customer Rating
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getAggregateRating, 9ms
  • reviews, product
  • bvseo-msg: Unsuccessful GET. status = 'ERROR', msg = 'Not Found.';
Capacity (Gallons)
Fuel Source
Maximum BTU's
Side Loop
  • Delivers 116-gallon first hour rating
  • 76,000 BTU input power direct vent design delivers up to 0.69 Uniform Energy Factor
  • Patented eco-friendly Green Choice® Gas Burner design reduces NOx emissions by up to 33% and complies with Low-NOx emission requirements
Product Details
  • Delivers 116-gallon first hour rating
  • 76,000 BTU input power direct vent design delivers up to 0.69 Uniform Energy Factor
  • Patented eco-friendly Green Choice® Gas Burner design reduces NOx emissions by up to 33% and complies with Low-NOx emission requirements
  • Automatic pilot relight system shuts reduces gas consumption and eliminates nuisance pilot outages
  • Includes side mounted recirculation taps for easy installation with combination space heating/potable water heating applications
  • Patented Blue Diamond® glass tank lining protects against corrosion
  • DynaClean™ automatic cleaning system protects against sediment build-up
  • Stainless steel Coregard™ anode rod protects against corrosion longer than ordinary anodes
  • Commercial-grade brass drain valve for durable and easy operation
  • 6-year limited tank and parts warranty

  • The ProLine® XE 75-Gallon Power Vent Natural Gas Water Heater is engineered to maximize efficiency while offering greater flexibility in installation options. Featuring a 75-gallon (nominal) tank and a 76,000 BTU gas burner, the GPVX-75L Power Vent delivers a recovery rate of 80.4 gallons per hour. It carries a 6-year limited warranty, and meets Low NOx emission requirements. Environmentally-friendly insulation and factory-installed heat trap nipples reduce heat loss for maximum energy savings. This ProLine® XE water heater is designed with A. O. Smith's superior commercial-grade tank protection. Advanced tank features include stainless steel Coregard™ anode rod, Blue Diamond® glass lining and DynaClean™ automatic sediment-cleaning system, all designed to help protect the tank from the corrosive effects of water and extend the life of the water heater. A. O. Smith’s ProLine® water heaters are residential products built to commercial-grade standard and are only available for purchase through professional wholesalers and contractors.

Specifications
Tech Specs
Nominal Gallon Capacity
75 Gallons
Rated Storage Volume
72 Gallons
UEF
0.69
Thermal Efficiency
82%
Maximum BTUs
76,000
Power Source
GAS
Limited Tank Warranty
6 Years
Limited Parts Warranty
6 Years
T&P Relief Valve
TRUE
Water Connection Location
TOP
Water Connection Size
0.75"
Emissions
Low NOx
First Hour Rating
116 Gallons
ASME Certified
No
Amperes
5
Blanket Included
No
Destination Country
US
Digital Display
true
Flue Diameter
5.00
Fuel Source
NATURAL
Height to Gas Valve
13.75
Height to T&P
53.25
Ignition Type
Electronic Hot Surface Igniter
Installation Type
INDOOR
Application
RESIDENTIAL
Product Tier
ProLine® XE
Recovery Rise at 90°F
84
Shipping Height
72.25
Shipping Length
35.2
Shipping Width
27.38
Side Loop
Yes
Voltage
120
Dimension & Venting
Type
Water Heater
Height
61.25"
Diameter
26 in."
Shipping Weight
277lbs
Vent Type
Power Vent
Find a Replacement
Current Product
Option 2
ProLine® XE 75-Gallon Power Vent Natural Gas Water Heater
ProLine® XE Ultra-Low NOx Indoor 199,000 BTU Condensing Natural Gas Tankless Water Heater
GPVX-75L
ATI-540H
Rebates up to $300 +
Rebates up to $300 +
Nominal Capacity
75 Gallons
Rated Storage Volume
72 Gallons
Diameter
26 in."
Width
17.75"
Depth
33.11"
11.25"
Height
61.25"
23.63"
Shipping Weight
277lbs
70lbs
Power Source
GAS
GAS
Limited Tank Warranty
6 Years
15 Years
Limited Parts Warranty
6 Years
5 Years
T&P Relief Valve
TRUE
Water Connection Location
TOP
BOTTOM
Water Connection Size
0.75"
First Hour Rating
116 Gallons
Thermal Efficiency
82%
0%
