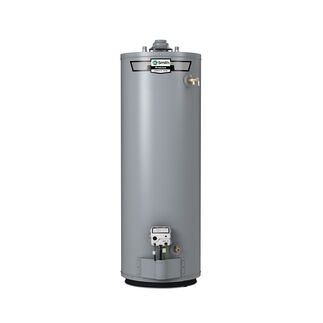

ProLine® 40-Gallon Atmospheric Vent Tall Natural Gas Water Heater

Model XCR-40
5 out of 5 Customer Rating
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getAggregateRating, 10ms
  • reviews, product
  • bvseo-msg: Unsuccessful GET. status = 'ERROR', msg = 'Not Found.';
Capacity (Gallons)
Limited Tank Warranty
Height Classification
Advanced Options
Fuel Source
First Hour Rating
Maximum BTU's
Side Loop
Diameter
  • Delivers 80-gallon first hour rating
  • 40,000 BTU input atmospheric vent design delivers up to 0.66 Uniform Energy Factor
  • Patented eco-friendly Green Choice® Gas Burner design reduces NOx emissions by up to 33% and complies with Low-NOx emission requirements
Product Details
  • Delivers 80-gallon first hour rating
  • 40,000 BTU input atmospheric vent design delivers up to 0.66 Uniform Energy Factor
  • Patented eco-friendly Green Choice® Gas Burner design reduces NOx emissions by up to 33% and complies with Low-NOx emission requirements
  • Push-button piezo ignitor makes lighting pilot fast & easy
  • Intelligent electronic gas control provides precise temperature control and LED status indicator
  • Patented Blue Diamond® glass tank lining protects against corrosion
  • DynaClean™ automatic cleaning system protects against sediment build-up
  • Stainless steel Coregard™ anode rod protects against corrosion longer than ordinary anodes
  • Commercial-grade brass drain valve for durable and easy operation
  • 10-year limited tank and parts warranty

  • The ProLine® 40-Gallon Atmospheric Vent Tall Natural Gas Water Heater is designed to deliver an economical performance that can lower your energy bills and also provide long-lasting value. Featuring a 40-gallon (nominal) tank and a 40,000 BTU gas burner, the XCR-40 Standard Vent delivers a first hour rating of 80 gallons and a recovery rate of 42 gallons per hour. It carries a 10-year limited tank warranty, and meets Low NOx emission requirements. Environmentally-friendly insulation and factory-installed heat trap nipples reduce heat loss for maximum energy savings. This ProLine® water heater is designed with A. O. Smith's superior commercial-grade tank protection. Advanced tank features include stainless steel Coregard™ anode rod, Blue Diamond® glass lining and DynaClean™ automatic sediment-cleaning system, all designed to help protect the tank from the corrosive effects of water and extend the life of the water heater. A. O. Smith’s ProLine® water heaters are residential products built to commercial-grade standard and are only available for purchase through professional wholesalers and contractors.

Specifications
Tech Specs
Nominal Gallon Capacity
40 Gallons
Rated Storage Volume
38 Gallons
UEF
0.64
Maximum BTUs
40,000
Power Source
GAS
Limited Tank Warranty
10 Years
Limited Parts Warranty
10 Years
T&P Relief Valve
TRUE
Water Connection Location
TOP
First Hour Rating
80 Gallons
ASME Certified
No
Blanket Included
No
Destination Country
US
Flue Diameter
4.00
Fuel Source
NATURAL
Installation Type
INDOOR
Application
RESIDENTIAL
Product Tier
ProLine®
Shipping Height
62
Shipping Length
24.13
Shipping Width
21.13
Side Loop
No
Dimension & Venting
Type
Water Heater
Height
61-3/4"
Diameter
20 in."
Width
20"
Shipping Weight
150lbs
Vent Type
Atmospheric Vent
