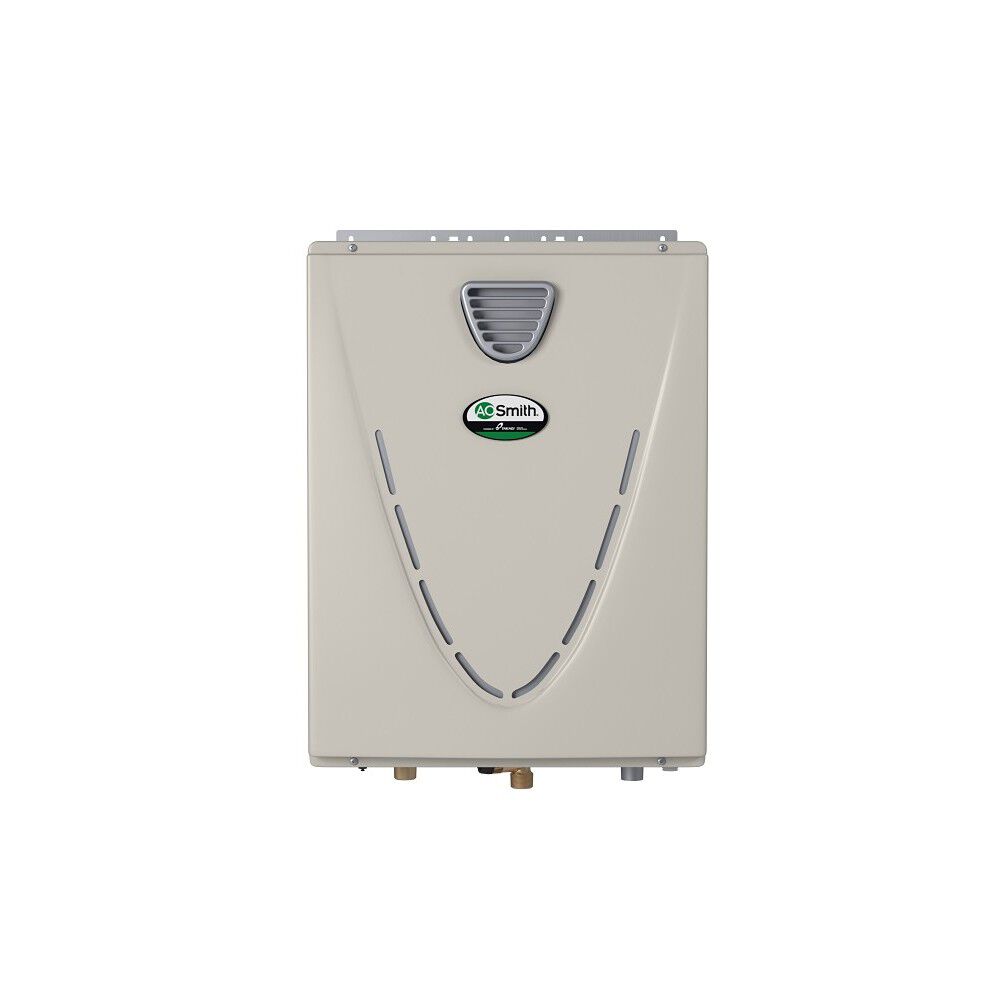

ProLine® XE Ultra-Low NOx Outdoor 199,000 BTU Condensing Propane Tankless Water Heater

Model ATO-540H
4.5 out of 5 Customer Rating
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getAggregateRating, 14ms
  • reviews, product
  • bvseo-msg: Unsuccessful GET. status = 'ERROR', msg = 'Not Found.';
Installation Type
Fuel Source
Maximum BTU's

  • ENERGY STAR® certified
  • Continuous flow rate up to 10.0 GPM
  • Primary commercial-grade copper heat exchanger is 25x better than stainless steel at heat transfer, stabilizing outgoing water temperatures quicker
  • Product Details
    • ENERGY STAR® certified
    • Continuous flow rate up to 10.0 GPM
    • Primary commercial-grade copper heat exchanger is 25x better than stainless steel at heat transfer, stabilizing outgoing water temperatures quicker
    • Secondary heat exchanger is made of 316L Stainless Steel to protect against corrosion
    • Highly efficient condensing Ultra-Low Nox tankless water heater delivers up to .94 Uniform Energy Factor (UEF)
    • Flexible power direct vent design allows for venting up to 100 feet using either PVC, CPVC, polypropylene or ABS Pipe (solid core)
    • Common vent up to 8 units
    • Includes a wall mount temperature remote controller and advanced diagnostics to simplify troubleshooting
    • Safety features include exhaust & water temperature safety control, overheat cut-off fuse and air-fuel ratio (AFR) sensor
    • 15-year limited warranty on heat exchanger in residential applications

    • The 540 series is well suited for residential use. Utilizing commercial grade copper alloy for the heat exchanger tubing, the 540 series is also suitable for heavier-residential usages such as domestic recirculation systems. Remote control included as a standard feature on all Outdoor models. Indoor models are certified up to 10,100 ft. altitude. Provides a variety of installation options: outdoor and direct vent. Complies with Ultra-Low NOx regulations and meets the energy efficiency requirements. Easy-Link System capable up to 4 units. The ATO-540H-P tankless water heater uses up to 199,000 BTU/hr of liquid propane to deliver an endless supply of hot water for a 3 bath home in northern climates and up to a 4 bath home in southern climates (one shower head per bath). Utilizing condensing technology, this heater is extremely efficient with a Uniform Energy Factor of 0.95. With an industry leading 15-year limited warranty, the ATO-540H-P tankless water heater provides years of hot water through innovation and quality. A. O. Smith’s ProLine® water heaters are residential products built to commercial-grade standard and are only available for purchase through professional wholesalers and contractors.

    Specifications
    Tech Specs
    UEF
    0.95
    Maximum BTUs
    199,000
    Power Source
    GAS
    Limited Tank Warranty
    15 Years
    Limited Parts Warranty
    5 Years
    Water Connection Location
    BOTTOM
    Emissions
    Low NOx
    ASME Certified
    No
    Destination Country
    US
    Digital Display
    true
    Energy Star Certified
    true
    Fuel Source
    PROPANE
    Installation Type
    OUTDOOR
    Limited Heat Exchanger Warranty
    15 Years
    Max Flow Rate
    5.80
    Minimum BTUs
    13,000.00
    Application
    RESIDENTIAL
    Shipping Height
    33.25
    Shipping Length
    21.75
    Shipping Width
    15.625
    Side Loop
    No
    Dimension & Venting
    Type
    Water Heater
    Height
    23.63"
    Width
    17.75"
    Shipping Weight
    69lbs
    Vent Type
    Power Direct Vent
