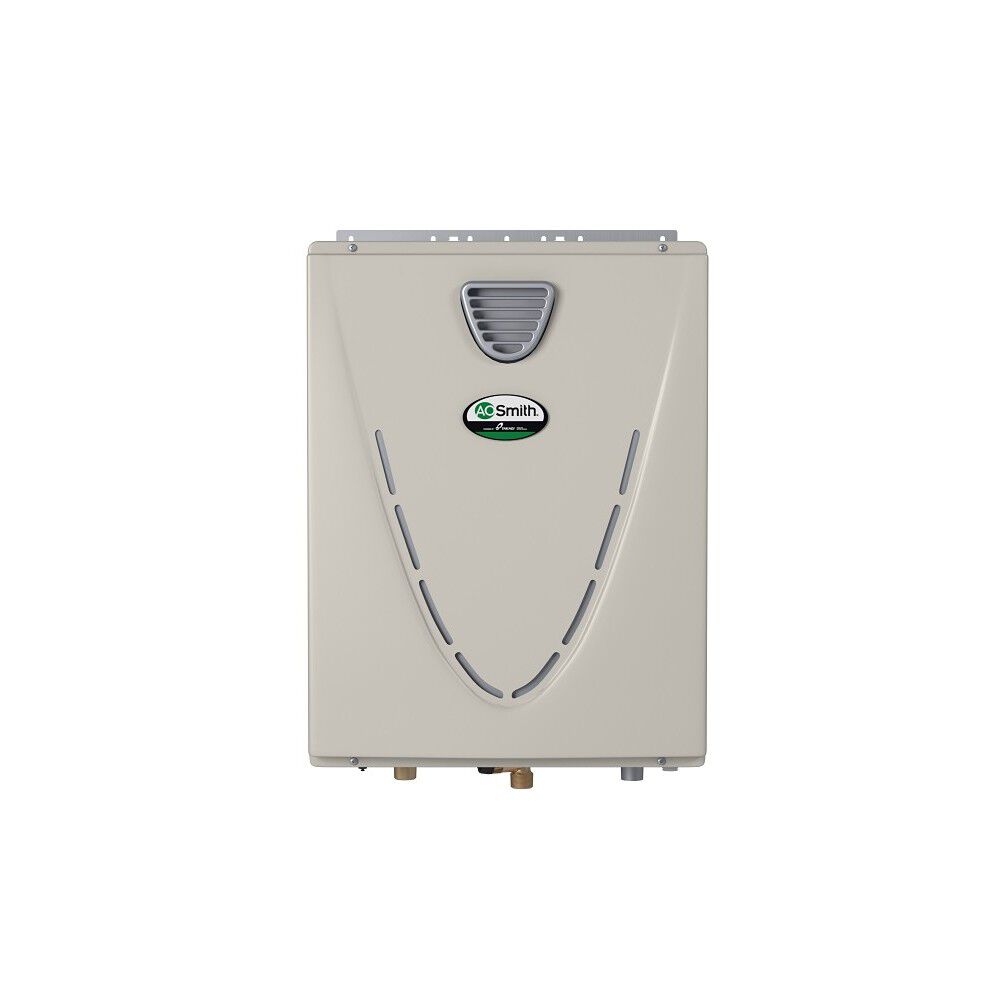

ProLine® XE Ultra-Low NOx Outdoor 199,000 BTU Condensing Natural Gas Tankless Water Heater

Model ATO-540H 100
5 out of 5 Customer Rating
  • reviews, product
  • BV SEO Enabled: RR Not Found
Installation Type
Fuel Source
Maximum BTU's

  • ENERGY STAR® certified
  • Continuous flow rate up to 10.0 GPM
  • Primary commercial-grade copper heat exchanger is 25x better than stainless steel at heat transfer, stabilizing outgoing water temperatures quicker
  • ProLine® XE Ultra-Low NOx Outdoor 199,000 BTU Condensing Natural Gas Tankless Water Heater
    Model ATO-540H 100
    5 out of 5 Customer Rating
    • reviews, product
    • BV SEO Enabled: RR Not Found
    What to Expect from this Model
    modal-clock
    Unlimited
    single shower length
    modal-frame
    Unlimited
    back-to-back
    modal-frame
    2.7 showers
    at the same time
    modal-tank-capacity
    Unlimited
    max tub size
    modal-cost
    $199/year
    est. energy cost
    Based on location results for Columbus, OH 43215
    Product Details
    • ENERGY STAR® certified
    • Continuous flow rate up to 10.0 GPM
    • Primary commercial-grade copper heat exchanger is 25x better than stainless steel at heat transfer, stabilizing outgoing water temperatures quicker
    • Secondary heat exchanger is made of 316L Stainless Steel to protect against corrosion
    • Highly efficient condensing Ultra-Low Nox tankless water heater delivers up to .94 Uniform Energy Factor (UEF)
    • Flexible power direct vent design allows for venting up to 100 feet using either PVC, CPVC, polypropylene or ABS Pipe (solid core)
    • Common vent up to 8 units
    • Includes a wall mount temperature remote controller and advanced diagnostics to simplify troubleshooting
    • Safety features include exhaust & water temperature safety control, overheat cut-off fuse and air-fuel ratio (AFR) sensor
    • 15-year limited warranty on heat exchanger in residential applications

    • The 540 series is well suited for residential use. Utilizing commercial grade copper alloy for the heat exchanger tubing, the 540 series is also suitable for heavier-residential usages such as domestic recirculation systems. Remote control included as a standard feature on all Outdoor models. Indoor models are certified up to 10,100 ft. altitude. Provides a variety of installation options: outdoor and direct vent. Complies with Ultra-Low NOx regulations and meets the energy efficiency requirements. Easy-Link System capable up to 4 units. The ATO-540H-N tankless water heater uses up to 199,000 BTU/hr of natural gas to deliver an endless supply of hot water for a 3 bath home in northern climates and up to a 4 bath home in southern climates (one shower head per bath). Utilizing condensing technology, this heater is extremely efficient with a Uniform Energy Factor of 0.95. With an industry leading 15-year limited warranty, the ATO-540H-N tankless water heater provides years of hot water through innovation and quality. A. O. Smith’s ProLine® water heaters are residential products built to commercial-grade standards and are only available for purchase through professional wholesalers and contractors.

    Specifications
    Tech Specs
    UEF
    0.95
    Maximum BTUs
    199,000
    Power Source
    GAS
    Limited Parts Warranty
    5 Years
    Water Connection Location
    BOTTOM
    Emissions
    Ultra-Low NOx
    ASME Certified
    No
    Destination Country
    US
    Digital Display
    Yes
    ENERGY STAR® Certified
    Yes
    Fuel Source
    NATURAL
    Installation Type
    OUTDOOR
    Limited Heat Exchanger Warranty
    15 Years
    Max Flow Rate
    5.8 GPM
    Minimum BTUs
    15,000
    Application
    RESIDENTIAL
    Product Tier
    ProLine® XE
    Shipping Height
    33.25"
    Shipping Length
    21.75"
    Shipping Width
    15.625"
    Side Loop
    No
    Dimension & Venting
    Type
    Water Heater
    Height
    23.63"
    Width
    17.75"
    Shipping Weight
    69 lbs
    Vent Type
    Power Direct Vent
    Find a Replacement
    Current Product
    Option 2
    ProLine® XE Ultra-Low NOx Outdoor 199,000 BTU Condensing Natural Gas Tankless Water Heater
    Adapt™ SC Standard Condensing Ultra-Low NOx 199,000 BTU Natural Gas Tankless Water Heater
    ATO-540H
    ATM-199M-N
    Rebates up to $300 +
    Rebates up to $300 +
    Nominal Capacity
    1 Gallons
    Width
    17.75"
    17.12"
    Depth
    11.25"
    11.85"
    Height
    23.63"
    32.46"
    Shipping Weight
    69lbs
    93lbs
    Power Source
    GAS
    GAS
    Limited Tank Warranty
    0 Years
    0 Years
    Limited Parts Warranty
    5 Years
    5 Years
    Water Connection Location
    BOTTOM
    BOTTOM
    Water Connection Size
    0.75"
    Thermal Efficiency
    0%
    0%
