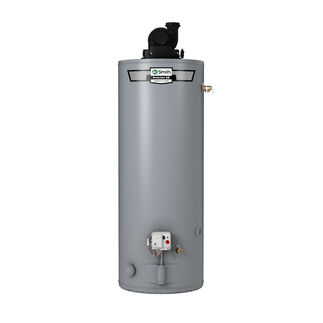

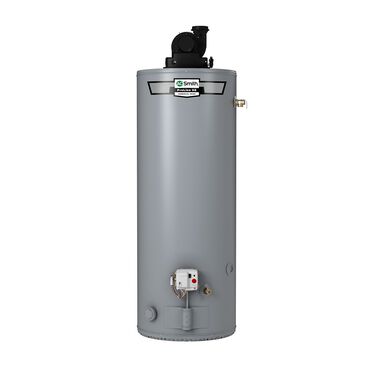

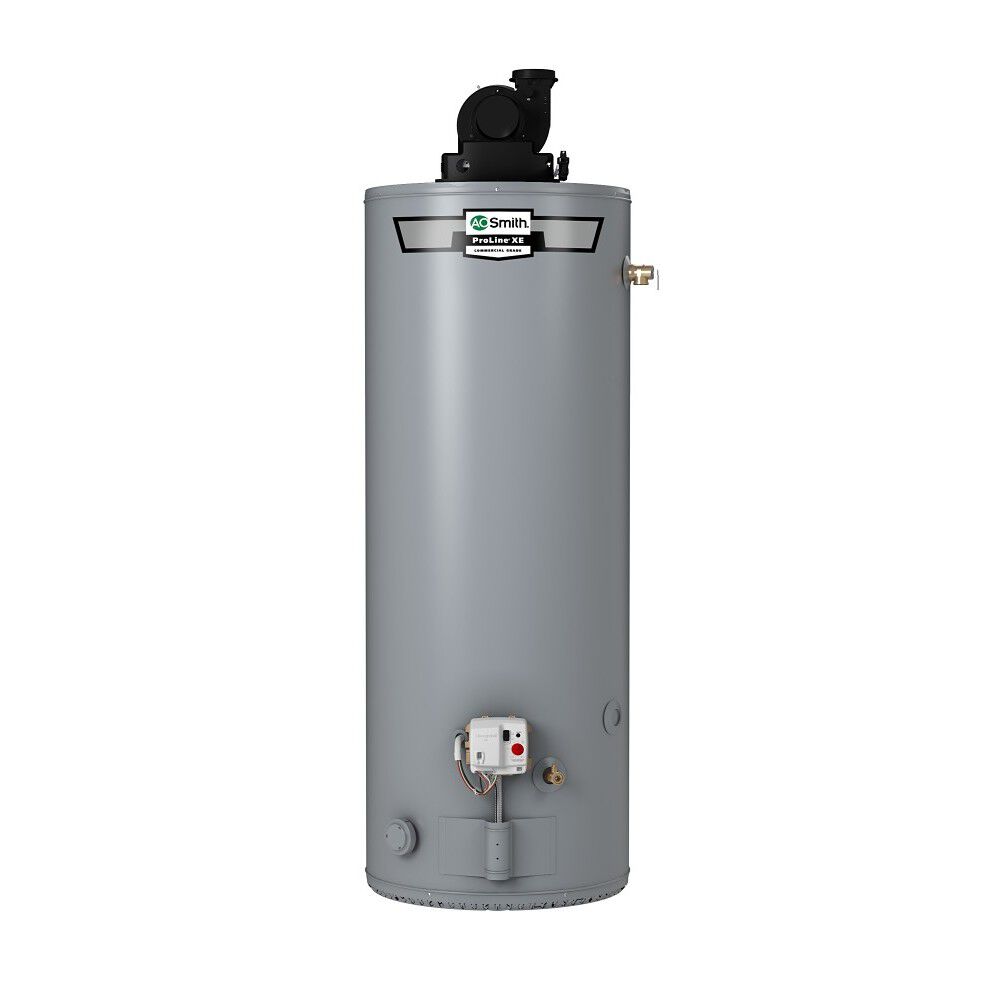

ProLine® XE 50-Gallon Power Vent Liquid Propane Water Heater

Model GPVL-50
5 out of 5 Customer Rating
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getAggregateRating, 6ms
  • reviews, product
  • bvseo-msg: Unsuccessful GET. status = 'ERROR', msg = 'Not Found.';
Capacity (Gallons)
Fuel Source
Maximum BTU's
Side Loop
  • 40,000 BTU input power vent design delivers up to 0.72 Uniform Energy Factor
Product Details
  • 40,000 BTU input power vent design delivers up to 0.72 Uniform Energy Factor
  • Patented eco-friendly Green Choice® Gas Burner design reduces NOx emissions by up to 33% and complies with Low-NOx emission requirements
  • Automatic pilot relight system shuts reduces gas consumption and eliminates nuisance pilot outages
  • Patented Blue Diamond® glass tank lining protects against corrosion
  • DynaClean™ automatic cleaning system protects against sediment build-up
  • Stainless steel Coregard™ anode rod protects against corrosion longer than ordinary anodes
  • Commercial-grade brass drain valve for durable and easy operation
  • 6-year limited tank and parts warranty

  • The ProLine® XE 50-Gallon Power Vent Liquid Propane Water Heater is engineered to maximize efficiency while offering greater flexibility in installation options. Featuring a 50-gallon (nominal) tank and a 40,000 BTU propane burner, the GPVL-50 (LP) Power Vent delivers a first hour rating of 79 gallons and a recovery rate of 44.7 gallons per hour. This model features a 0.72 Uniform Energy Factor and carries a 6-year limited warranty. Environmentally-friendly insulation and factory-installed heat trap nipples reduce heat loss for maximum energy savings. This ProLine® XE water heater is designed with A. O. Smith's superior commercial-grade tank protection. Advanced tank features include stainless steel Coregard™ anode rod, Blue Diamond® glass lining and DynaClean™ automatic sediment-cleaning system, all designed to help protect the tank from the corrosive effects of water and extend the life of the water heater. A. O. Smith’s ProLine® water heaters are residential products built to commercial-grade standard and are only available for purchase through professional wholesalers and contractors.

Specifications
Tech Specs
Nominal Gallon Capacity
50 Gallons
Rated Storage Volume
49 Gallons
UEF
0.72
Maximum BTUs
40,000
Power Source
GAS
Limited Tank Warranty
6 Years
Limited Parts Warranty
6 Years
T&P Relief Valve
TRUE
Water Connection Location
TOP
Water Connection Size
1"
Emissions
Low NOx
First Hour Rating
79 Gallons
ASME Certified
No
LEED Rating
1.00
Amperes
5
Blanket Included
No
Destination Country
US
Digital Display
true
Flue Diameter
4.00
Fuel Source
PROPANE
Height to Gas Valve
12.00
Height to T&P
43.75
Ignition Type
Electronic Hot Surface Igniter
Installation Type
INDOOR
Application
RESIDENTIAL
Product Tier
ProLine® XE
Shipping Height
62.75
Shipping Length
33.5
Shipping Width
25.5
Side Loop
No
Voltage
120
Dimension & Venting
Type
Water Heater
Height
60"
Diameter
24 in."
Shipping Weight
198lbs
Vent Type
Power Vent
Find a Replacement
Current Product
Option 2
ProLine® XE 50-Gallon Power Vent Liquid Propane Water Heater
ProLine® XE Ultra-Low NOx Indoor 199,000 BTU Condensing Propane Tankless Water Heater
GPVL-50
ATI-540H
Rebates up to $300 +
Rebates up to $300 +
Nominal Capacity
50 Gallons
Rated Storage Volume
49 Gallons
Diameter
24 in."
Width
17.75"
Depth
31.75"
11.25"
Height
60"
23.63"
Shipping Weight
198lbs
70lbs
Power Source
GAS
GAS
Limited Tank Warranty
6 Years
15 Years
Limited Parts Warranty
6 Years
5 Years
T&P Relief Valve
TRUE
Water Connection Location
TOP
BOTTOM
Water Connection Size
1"
First Hour Rating
79 Gallons
Thermal Efficiency
0%
0%
