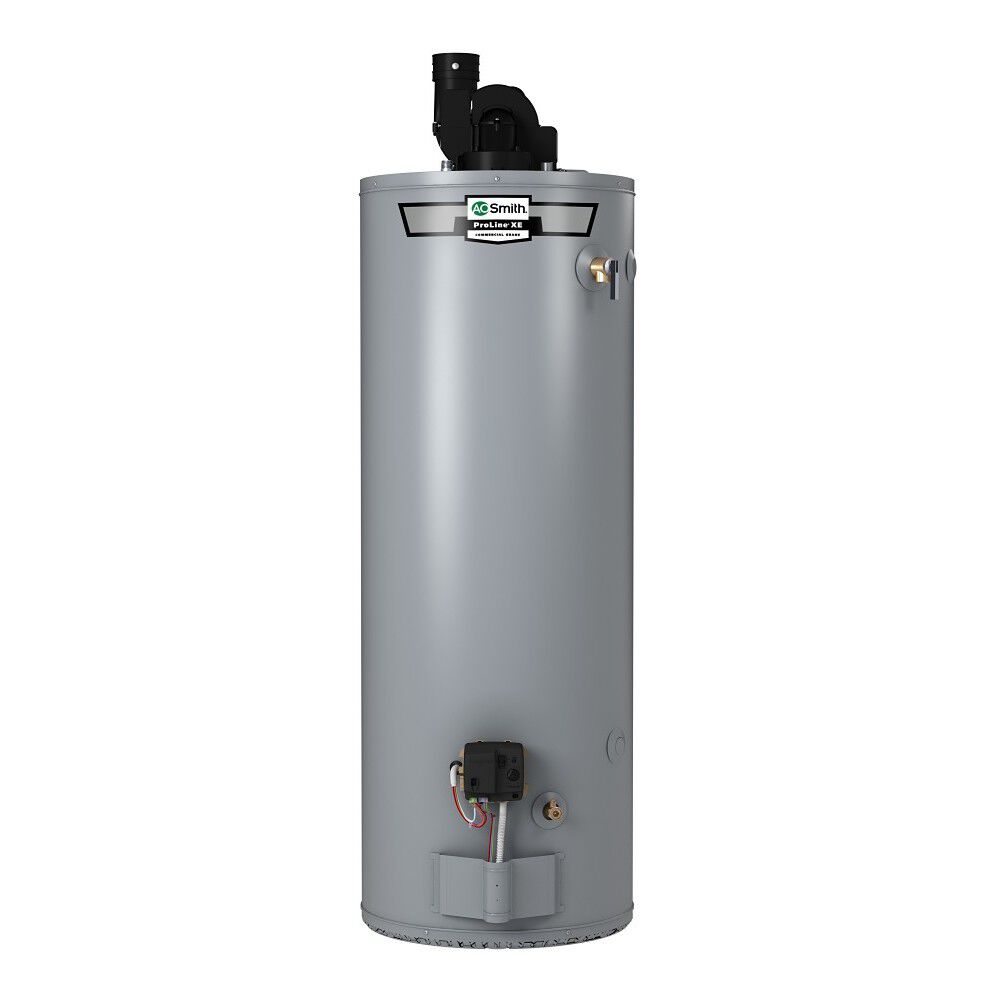

ProLine® XE 40-Gallon Power Direct Vent Natural Gas Water Heater

Model GPDL-40 200
4.4 out of 5 Customer Rating
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getAggregateRating, 19ms
  • reviews, product
  • bvseo-msg: Unsuccessful GET. status = 'ERROR', msg = 'Not Found.';
Capacity (Gallons)
Fuel Source
First Hour Rating
Side Loop

  • Delivers 74-gallon first hour rating
  • 40,000 BTU input power direct vent design delivers up to 0.68 Uniform Energy Factor
  • Product Details
    • Delivers 74-gallon first hour rating
    • 40,000 BTU input power direct vent design delivers up to 0.68 Uniform Energy Factor
    • Patented eco-friendly Green Choice® Gas Burner design reduces NOx emissions by up to 33% and complies with Low-NOx emission requirements
    • Automatic pilot relight system shuts reduces gas consumption and eliminates nuisance pilot outages
    • Patented Blue Diamond® glass tank lining protects against corrosion
    • DynaClean™ automatic cleaning system protects against sediment build-up
    • Stainless steel CoreGard™ anode rod protects against corrosion longer than ordinary anodes
    • Commercial-grade brass drain valve for durable and easy operation
    • 6-year limited tank and parts warranty

    • The ProLine® XE 40-Gallon Power Direct Vent Natural Gas Water Heater features a two-pipe combustion system that draws clean air from outside the home, eliminating any worries about indoor ventilation. Featuring a 40-gallon (nominal) tank and a 40,000 BTU gas burner, the GPDL-40 Power Direct Vent delivers a first hour rating of 74 gallons and a recovery rate of 45 gallons per hour. This model features a 0.68 Uniform Energy Factor and carries a 6-year limited warranty. Environmentally-friendly insulation and factory-installed heat trap nipples reduce heat loss for maximum energy savings. This ProLine® water heater is designed with A. O. Smith's superior commercial-grade tank protection. Advanced tank features include stainless steel CoreGard™ anode rod, Blue Diamond® glass lining and DynaClean™ automatic sediment-cleaning system, all designed to help protect the tank from the corrosive effects of water and extend the life of the water heater. A. O. Smith’s ProLine® water heaters are residential products built to commercial-grade standards and are only available for purchase through professional wholesalers and contractors.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    40 Gallons
    Rated Storage Volume
    38 Gallons
    UEF
    0.68
    Thermal Efficiency
    84%
    Maximum BTUs
    40,000
    Power Source
    GAS
    Limited Tank Warranty
    6 Years
    Limited Parts Warranty
    6 Years
    T&P Relief Valve
    Yes
    Water Connection Location
    TOP
    Water Connection Size
    1"
    Emissions
    Low NOx
    First Hour Rating
    74 Gallons
    ASME Certified
    No
    LEED Rating
    1.00
    Amperes
    5
    Blanket Included
    No
    Destination Country
    US
    ENERGY STAR® Certified
    true
    Flue Diameter
    4.00
    Fuel Source
    NATURAL
    Height to Gas Valve
    12.00
    Height to T&P
    42.50
    Ignition Type
    Electronic Hot Surface Igniter
    Installation Type
    INDOOR
    Application
    RESIDENTIAL
    Product Tier
    ProLine® XE
    Recovery Rise at 90°F
    45
    Shipping Height
    60.56"
    Shipping Length
    31.2"
    Shipping Width
    23.4"
    Side Loop
    No
    Voltage
    120
    Dimension & Venting
    Type
    Water Heater
    Height
    58.5"
    Diameter
    22 in."
    Shipping Weight
    174lbs
    Vent Type
    Power Direct Vent
    Find a Replacement
    Current Product
    Option 2
    ProLine® XE 40-Gallon Power Direct Vent Natural Gas Water Heater
    ProLine® XE Ultra-Low NOx Indoor 160,000 BTU Condensing Natural Gas Tankless Water Heater
    GPDL-40
    ATI-240H
    Rebates up to $300 +
    Rebates up to $300 +
    Nominal Capacity
    40 Gallons
    Rated Storage Volume
    38 Gallons
    Diameter
    22 in."
    Width
    17.75"
    Depth
    30.25"
    11.25"
    Height
    58.5"
    23.63"
    Shipping Weight
    174lbs
    70lbs
    Power Source
    GAS
    GAS
    Limited Tank Warranty
    6 Years
    0 Years
    Limited Parts Warranty
    6 Years
    5 Years
    T&P Relief Valve
    Yes
    Water Connection Location
    TOP
    BOTTOM
    Water Connection Size
    1"
    First Hour Rating
    74 Gallons
    Thermal Efficiency
    84%
    0%
