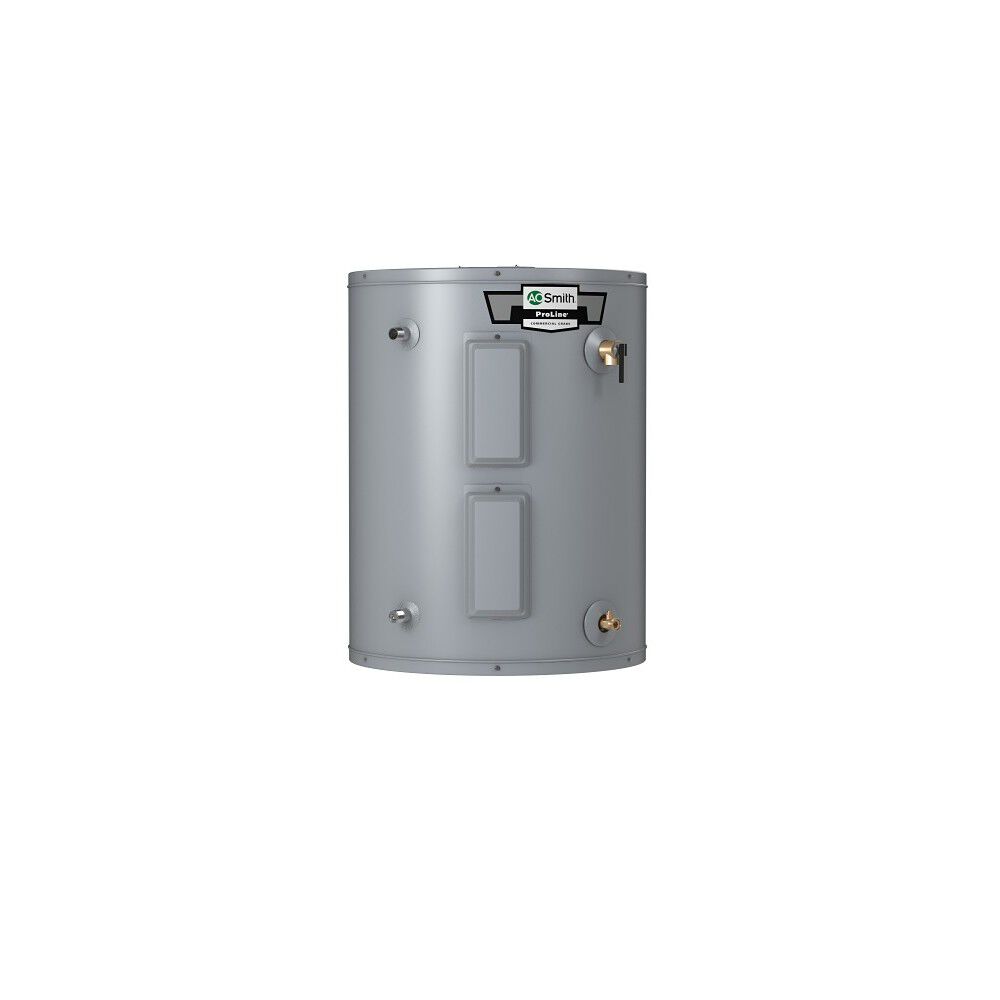

ProLine® 38-Gallon Lowboy Side-Connect Electric Water Heater

Model ENJ-40
Capacity (Gallons)
First Hour Rating
Blanket
Limited Tank Warranty

  • Delivers 54-gallon first hour rating
  • Dual 4,500-watt commercial-grade heating elements deliver reliable and efficient hot water
  • Lowboy water heater designed for installation under a counter, in a crawl space or in other tight spaces
  • Product Details
    • Delivers 54-gallon first hour rating
    • Dual 4,500-watt commercial-grade heating elements deliver reliable and efficient hot water
    • Lowboy water heater designed for installation under a counter, in a crawl space or in other tight spaces
    • Side-mounted plumbing and electrical connections (optional top-mounted water connections for field conversion)
    • Patented Blue Diamond® glass tank lining protects against corrosion
    • DynaClean™ automatic cleaning system protects against sediment build-up
    • Stainless steel Coregard™ anode rod protects against corrosion longer than ordinary anodes
    • Commercial-grade brass drain valve for durable and easy operation
    • CSA Certified and ASME Rated T&P Relief Valve, Factory-Installed
    • 6-year limited tank and parts warranty

    • The ProLine® Lowboy Side Connect electric water heater is designed to take up as little room as possible and is the ideal choice for when installation space is limited to tight spaces such as under counters and in crawl spaces. With a 38-gallon (nominal) tank, the ENJ-40 delivers a first hour rating of 54 gallons at an Uniform Energy Factor of 0.93. The sacrificial anode helps protect the tank from the corrosive effects of water, and is accompanied by a 6-year limited tank warranty. A. O. Smith’s ProLine® water heaters are residential products built to commercial-grade standard and are only available for purchase through professional wholesalers and contractors.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    38 Gallons
    Rated Storage Volume
    35 Gallons
    UEF
    0.93
    Power Source
    ELECTRIC
    Limited Tank Warranty
    6 Years
    Limited Parts Warranty
    6 Years
    Water Connection Location
    SIDE
    Water Connection Size
    0.75"
    First Hour Rating
    54 Gallons
    ASME Certified
    No
    Blanket Included
    No
    Destination Country
    US
    Installation Type
    INDOOR
    Max Wattage
    4,500
    Number of Elements
    2
    Shipping Height
    37
    Shipping Length
    30.25
    Shipping Width
    27.13
    Side Loop
    No
    Voltage
    240
    Dimension & Venting
    Type
    Water Heater
    Height
    33.5"
    Diameter
    26 in."
    Shipping Weight
    118lbs
    Find a Replacement
    Current Product
    Option 2
    ProLine® 38-Gallon Lowboy Side-Connect Electric Water Heater
    ProLine® 38-Gallon Lowboy Side-Connect Electric Water Heater
    ENJ-40
    ENJB-40
    Rebates up to $300 +
    Rebates up to $300 +
    Nominal Capacity
    38 Gallons
    38 Gallons
    Rated Storage Volume
    35 Gallons
    35 Gallons
    Diameter
    26 in."
    24 in."
    Depth
    26"
    Height
    33.5"
    31.25"
    Shipping Weight
    118lbs
    121lbs
    Power Source
    ELECTRIC
    ELECTRIC
    Limited Tank Warranty
    6 Years
    6 Years
    Limited Parts Warranty
    6 Years
    6 Years
    Water Connection Location
    SIDE
    SIDE
    Water Connection Size
    0.75"
    0.75"
    First Hour Rating
    54 Gallons
    57 Gallons
    Thermal Efficiency
    0%
    0%
