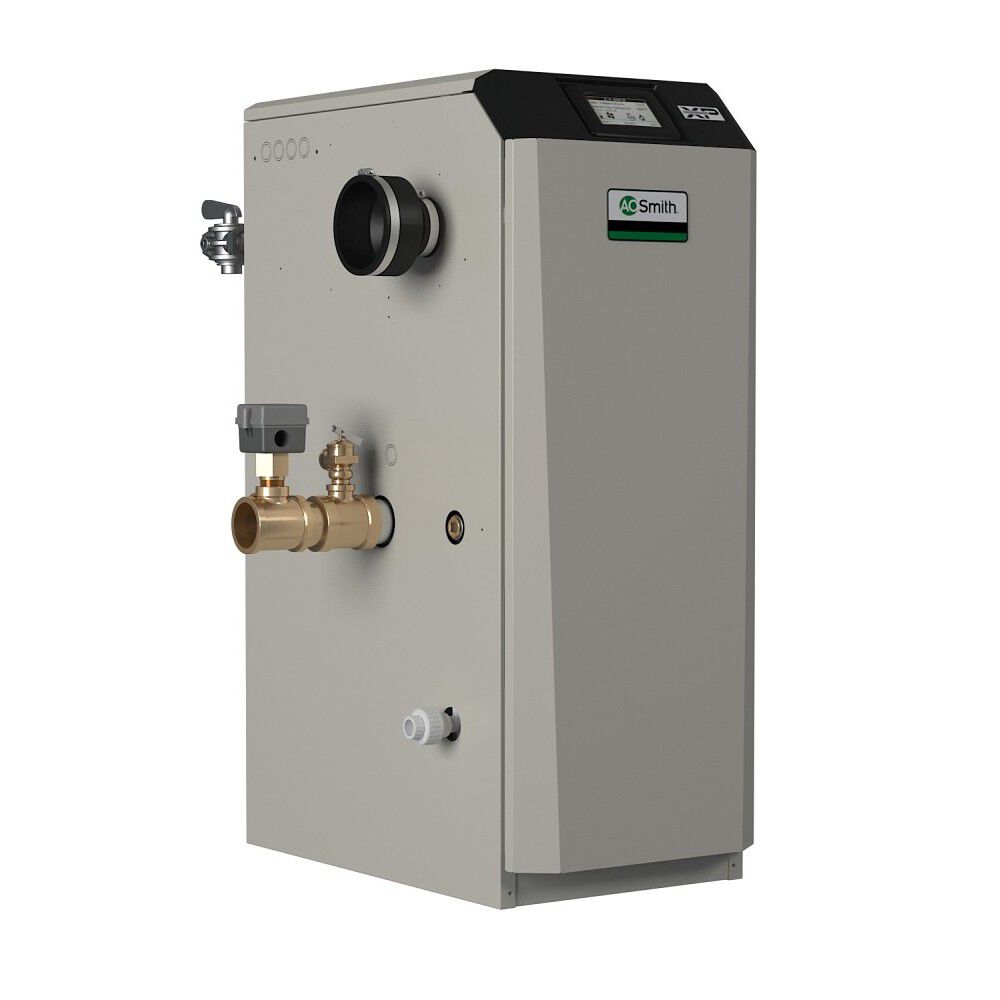

XP Circulating Commercial Gas Water Heater

Model XWH-285NP 100
Maximum BTU's
Fuel Source
  • Delivers up to 332 GPH at 100°F Rise
  • Up to 96% Thermal Efficiency
  • Advanced fully modulating system achieves 5:1 turndown
Product Details
  • Delivers up to 332 GPH at 100°F Rise
  • Up to 96% Thermal Efficiency
  • Advanced fully modulating system achieves 5:1 turndown
  • Ultra-Low NOx Operation - Complies with SCAQMD and other air quality districts requiring less than 20 ppm NOx
  • Advanced Control System - Large touch screen display, economy mode with programmable setback
  • Factory Supplied All Bronze Pump and Tank Sensor
  • Factory start-up Included and REQUIRED
  • 5-Year Heat Exchanger Limited Warranty

  • The ENERGY STAR® Certified A. O. Smith high efficiency condensing XP Water Heater utilizes a state-of-the-art heat exchanger and control technology to provide large volumes of hot water for demanding commercial and industrial potable hot water applications. The all stainless steel heat exchanger construction allows the XP Water Heater to operate in a continuous condensing mode while maximizing longevity and delivering up to 96% thermal efficiency. The XP features a stainless steel heat exchanger that is built to ASME Section IV requirements. Fully modulating combustion with 5:1 turndown means the XP can fire as low as 20% of maximum input. Model XWH-285 uses 285,000 BTU/Hr input to deliver 332 GPH at 100°F rise. A. O. Smith offers the largest commercial product selection available, including the most specified commercial unit in the U.S. We offer more than 500 different commercial models, including gas fired, oil-fired and electric configurations, ranging in capacities from 5 to 10,000 gallons, with input range from 50,000 BTU to the equivalent of 4,000,000 BTU. Our comprehensive line is the natural fit for spec jobs requiring everything from the smallest commercial installation up to the largest multi-structure complex.

Specifications
Tech Specs
Rated Storage Volume
2.4 Gallons
Maximum BTUs
285,000
Power Source
GAS
Limited Parts Warranty
1 Years
Water Connection Location
SIDE
ASME Certified
Yes
ASME Stamp
HLW
Destination Country
US
Energy Star Certified
true
Flue Diameter
4.00
Fuel Source
NATURAL
Installation Type
INDOOR
Limited Heat Exchanger Warranty
5 Years
Minimum BTUs
57,000.00
Application
COMMERCIAL
Shipping Height
49
Shipping Length
26
Shipping Width
30
Side Loop
No
Dimension & Venting
Type
Water Heater
Height
42"
Shipping Weight
236lbs
Vent Type
Direct Vent
