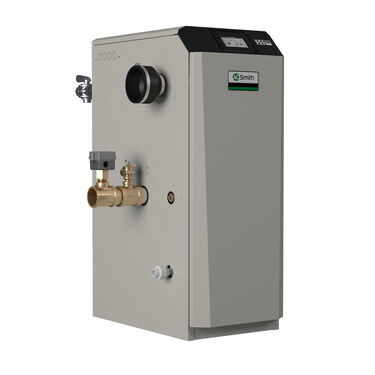

XP Circulating Commercial Gas Water Heater

Model XWH-201NP 100
Maximum BTU's
Fuel Source

  • Delivers up to 235 GPH at 100°F Rise
  • Up to 96% Thermal Efficiency
  • Advanced fully modulating system achieves 5:1 turndown
  • Product Details
    • Delivers up to 235 GPH at 100°F Rise
    • Up to 96% Thermal Efficiency
    • Advanced fully modulating system achieves 5:1 turndown
    • Ultra-Low NOx Operation - Complies with SCAQMD and other air quality districts requiring less than 20 ppm NOx
    • Advanced Control System - Large touch screen display, economy mode with programmable setback
    • Factory Supplied All Bronze Pump and Tank Sensor
    • 5-Year Heat Exchanger Limited Warranty

    • The ENERGY STAR® Certified A. O. Smith high efficiency condensing XP Water Heater utilizes a state-of-the-art heat exchanger and control technology to provide large volumes of hot water for demanding commercial and industrial potable hot water applications. The all stainless steel heat exchanger construction allows the XP Water Heater to operate in a continuous condensing mode while maximizing longevity and delivering up to 96% thermal efficiency. The XP features a stainless steel heat exchanger that is built to ASME Section IV requirements. Fully modulating combustion with 5:1 turndown means the XP can fire as low as 20% of maximum input. Model XWH-201 uses 201,000 BTU/Hr input to deliver 235 GPH at 100°F rise. A. O. Smith offers the largest commercial product selection available, including the most specified commercial unit in the U.S. We offer more than 500 different commercial models, including gas fired, oil-fired and electric configurations, ranging in capacities from 5 to 10,000 gallons, with input range from 50,000 BTU to the equivalent of 4,000,000 BTU. Our comprehensive line is the natural fit for spec jobs requiring everything from the smallest commercial installation up to the largest multi-structure complex.

    Specifications
    Tech Specs
    Rated Storage Volume
    1.7 Gallons
    Maximum BTUs
    201,000
    Power Source
    GAS
    Limited Parts Warranty
    1 Years
    Water Connection Location
    SIDE
    ASME Certified
    Yes
    ASME Stamp
    HLW
    Destination Country
    US
    ENERGY STAR® Certified
    true
    Flue Diameter
    3.00
    Fuel Source
    NATURAL
    Installation Type
    INDOOR
    Limited Heat Exchanger Warranty
    5 Years
    Minimum BTUs
    39,800.00
    Application
    COMMERCIAL
    Shipping Height
    39"
    Shipping Length
    24"
    Shipping Width
    29"
    Side Loop
    No
    Dimension & Venting
    Type
    Water Heater
    Height
    32.75"
    Shipping Weight
    181lbs
    Vent Type
    Direct Vent
