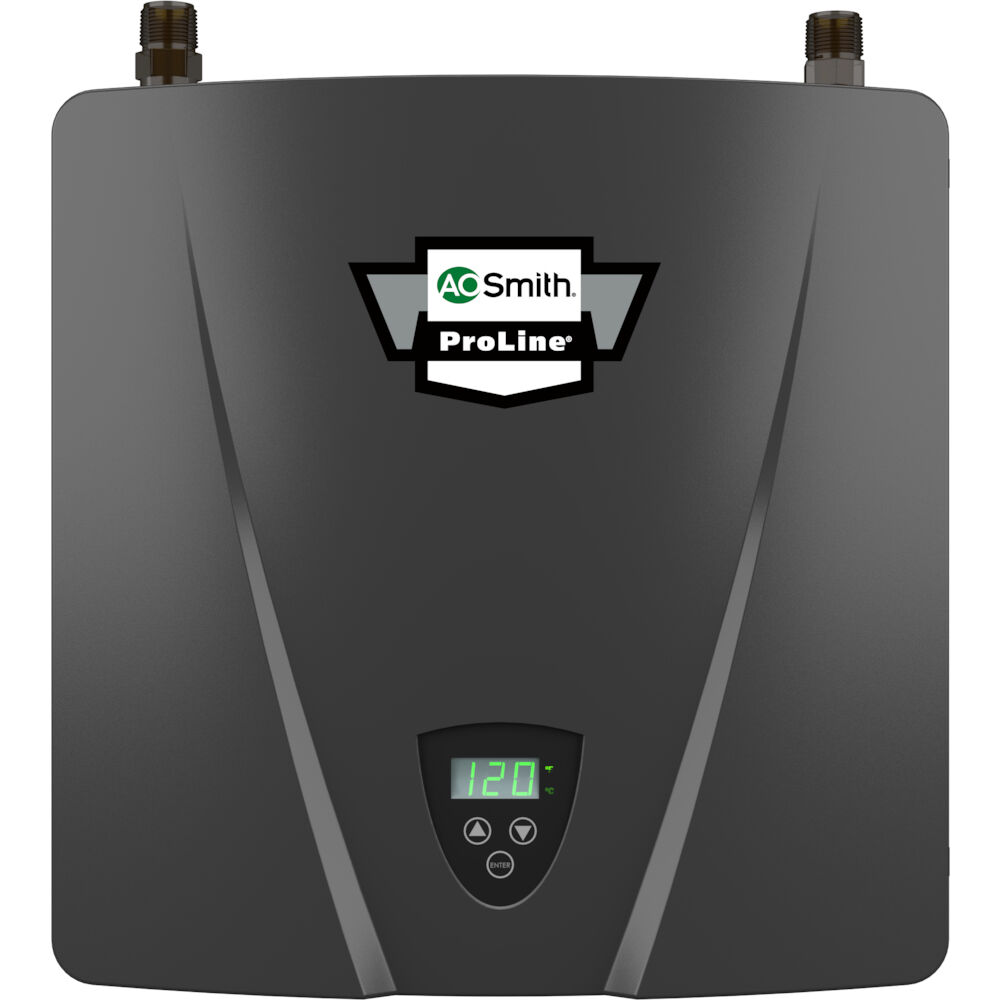

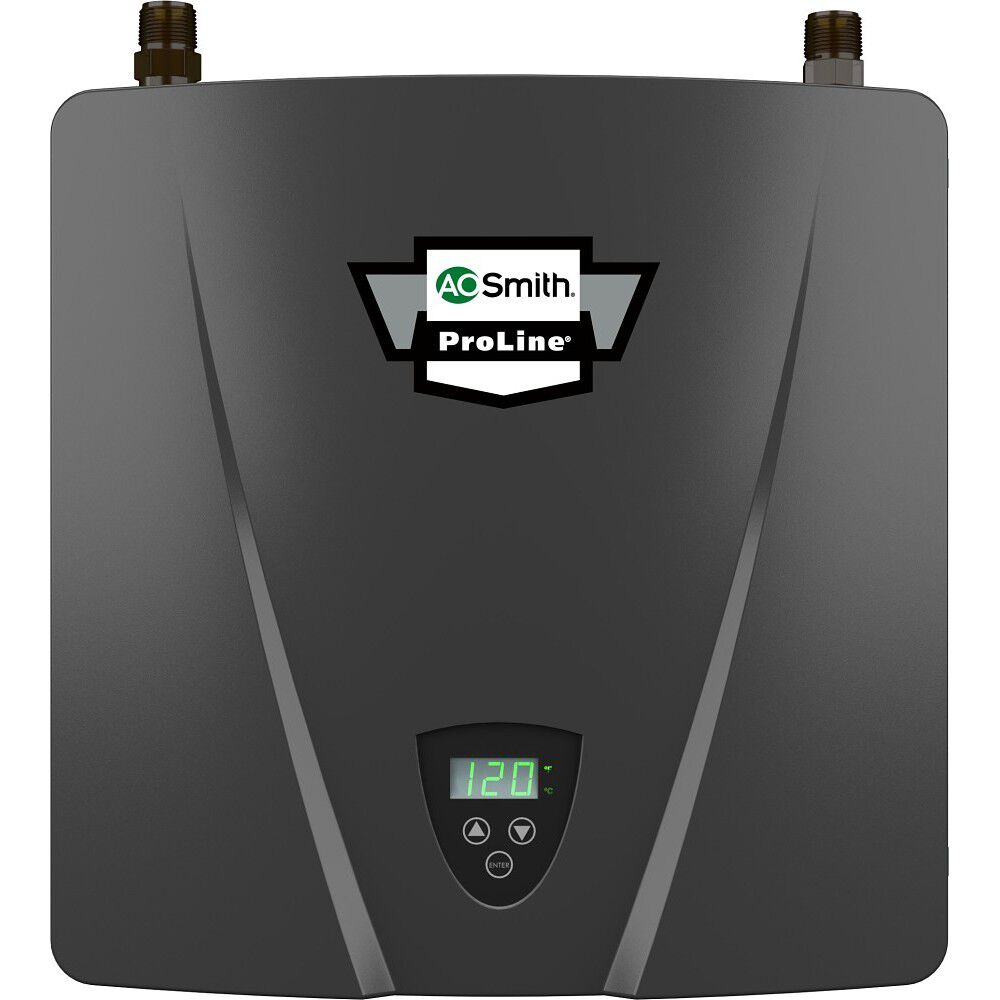

240V / 22 kW 4-Chamber Commercial Electric Tankless Water Heater

Model C4LA-220E
Max Wattage
Voltage
Amperes

  • Delivers continuous hot water when sized appropriately
  • Dry-fire protection prevents premature element failure for care-free installation
  • Easily wall mount with no venting required
  • Product Details
    • Delivers continuous hot water when sized appropriately
    • Dry-fire protection prevents premature element failure for care-free installation
    • Easily wall mount with no venting required
    • Uses standard heating elements for easy maintenance & replacement
    • Save valuable storage space with compact design
    • Includes self diagnostics and leak detection shutdown for added peace of mind
    • Includes user friendly digital interface for temperature control and diagnostics
    • Scale reduction technology and DupontTM Zytel® chambers protect against hard water build up and extends the product life
    • 5-year limited tank and parts warranty

    • The 240V / 22 kW 4-Chamber Commercial Electric Tankless Water Heater can provide continuous hot water when sized appropriately. A. O. Smith's Commercial Electric Tankless water heaters only heat water when needed, leading to potential energy and utility bill savings. These models are easy to install and save valuable storage space--they can be wall mounted, using standard 3/4-in NPT water connections and do not require venting. Designed with a soft start, the electric tankless produce a soft electric draw when powering on, reducing light dimming impact. Electric tankless water heaters typically require greater electrical supply capacity than standard tank-type models. Please check with your local professional to ensure your home's power supply and breaker panel can support this model. A. O. Smith offers the largest commercial product selection available, including the most specified commercial unit in the U.S. We offer more than 500 different commercial models, including gas fired, oil-fired and electric configurations, ranging in capacities from 5 to 10,000 gallons, with input range from 50,000 BTU to the equivalent of 4,000,000 BTU. Our comprehensive line is the natural fit for spec jobs requiring everything from the smallest commercial installation up to the largest multi-structure complex.

    Specifications
    Tech Specs
    UEF
    0.92
    Power Source
    ELECTRIC
    Limited Tank Warranty
    5 Years
    Limited Parts Warranty
    1 Years
    ASME Certified
    No
    Amperes
    100
    Destination Country
    US
    Installation Type
    INDOOR
    Limited Heat Exchanger Warranty
    5 Years
    Max Flow Rate
    2.20
    Max Wattage
    22,000
    Number of Elements
    4
    Application
    COMMERCIAL
    Product Tier
    ProLine®
    Shipping Height
    21.56
    Shipping Length
    19.81
    Shipping Width
    11.06
    Side Loop
    No
    Voltage
    240
    Dimension & Venting
    Type
    Water Heater
    Shipping Weight
    22lbs
