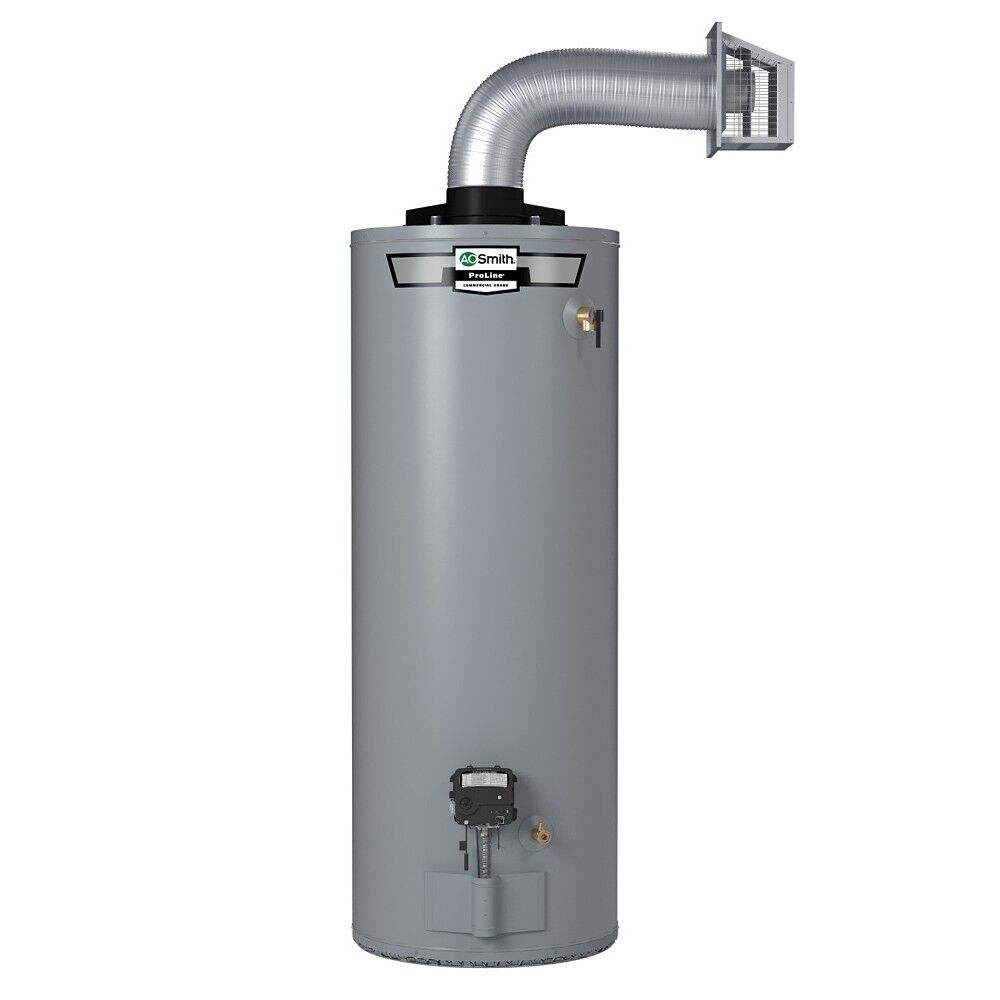

ProLine® 50-Gallon Direct Vent Natural Gas Water Heater

Model GDVT-50
3.5 out of 5 Customer Rating
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getAggregateRating, 16ms
  • reviews, product
  • bvseo-msg: Unsuccessful GET. status = 'ERROR', msg = 'Not Found.';
Capacity (Gallons)
Fuel Source
Height Classification
Advanced Options
First Hour Rating
Side Loop
Maximum BTU's
  • Delivers 83-gallon first hour rating
  • 47,000 BTU input direct vent design delivers up to 0.65 Uniform Energy Factor
  • Patented eco-friendly Green Choice® Gas Burner design reduces NOx emissions by up to 33% and complies with Low-NOx emission requirements
Product Details
  • Delivers 83-gallon first hour rating
  • 47,000 BTU input direct vent design delivers up to 0.65 Uniform Energy Factor
  • Patented eco-friendly Green Choice® Gas Burner design reduces NOx emissions by up to 33% and complies with Low-NOx emission requirements
  • Push-button piezo ignitor makes lighting pilot fast & easy
  • Patented Blue Diamond® glass tank lining protects against corrosion
  • DynaClean™ automatic cleaning system protects against sediment build-up
  • Stainless steel Coregard™ anode rod protects against corrosion longer than ordinary anodes
  • Commercial-grade brass drain valve for durable and easy operation
  • CSA Certified and ASME Rated T&P Relief Valve, Factory-Installed
  • 6-year limited tank and parts warranty

  • The FVIR-compliant ProLine® 50-Gallon Direct Vent Natural Gas Water Heater is to designed to draw air from outside the home, eliminating problems caused by insufficient indoor ventilation. The unit has horizontal air intake and venting on all models up to 80” from the outside wall with no electrical power needed. Featuring a 50-gallon (nominal) tank and a 47,000 BTU gas burner, the GDVT-50 Direct Vent delivers a first hour rating of 83 gallons and a recovery rate of 51 gallons per hour. It carries a 6-year limited tank warranty, and meets Low NOx emission requirements. Environmentally-friendly insulation and factory-installed heat trap nipples reduce heat loss for maximum energy savings. This ProLine® water heater is designed with A. O. Smith's superior commercial-grade tank protection. Advanced tank features include stainless steel Coregard™ anode rod, Blue Diamond® glass lining and DynaClean™ automatic sediment-cleaning system, all designed to help protect the tank from the corrosive effects of water and extend the life of the water heater. A. O. Smith’s ProLine® water heaters are residential products built to commercial-grade standard and are only available for purchase through professional wholesalers and contractors.

Specifications
Tech Specs
Nominal Gallon Capacity
50 Gallons
Rated Storage Volume
48 Gallons
UEF
0.65
Maximum BTUs
47,000
Power Source
GAS
Limited Tank Warranty
6 Years
Limited Parts Warranty
6 Years
T&P Relief Valve
TRUE
Water Connection Location
TOP
Water Connection Size
0.75"
Emissions
Low NOx
First Hour Rating
83 Gallons
ASME Certified
No
Blanket Included
No
Destination Country
US
Flue Diameter
5.00
Fuel Source
NATURAL
Height to Gas Valve
14.25
Height to T&P
53.25
Ignition Type
Pilot with Piezo Igniter
Installation Type
INDOOR
Application
RESIDENTIAL
Product Tier
ProLine®
Shipping Height
73
Shipping Length
31.5
Shipping Width
23.5
Side Loop
No
Dimension & Venting
Type
Water Heater
Height
60.25"
Diameter
22 in."
Shipping Weight
215lbs
Vent Type
Direct Vent
Find a Replacement
Current Product
Option 2
ProLine® 50-Gallon Direct Vent Natural Gas Water Heater
ProLine® XE Ultra-Low NOx Indoor 180,000 BTU Condensing Natural Gas Tankless Water Heater
GDVT-50
ATI-340H
Rebates up to $300 +
Rebates up to $300 +
Nominal Capacity
50 Gallons
Rated Storage Volume
48 Gallons
Diameter
22 in."
Width
17.75"
Depth
28.75"
11.25"
Height
60.25"
23.625"
Shipping Weight
215lbs
70lbs
Power Source
GAS
GAS
Limited Tank Warranty
6 Years
0 Years
Limited Parts Warranty
6 Years
5 Years
T&P Relief Valve
TRUE
Water Connection Location
TOP
BOTTOM
Water Connection Size
0.75"
First Hour Rating
83 Gallons
Thermal Efficiency
0%
0%
