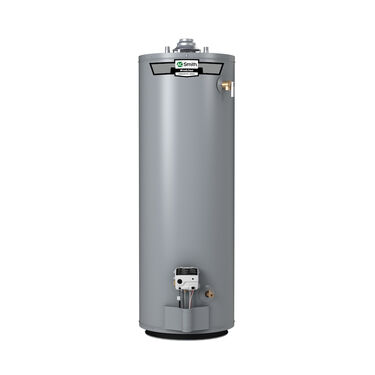

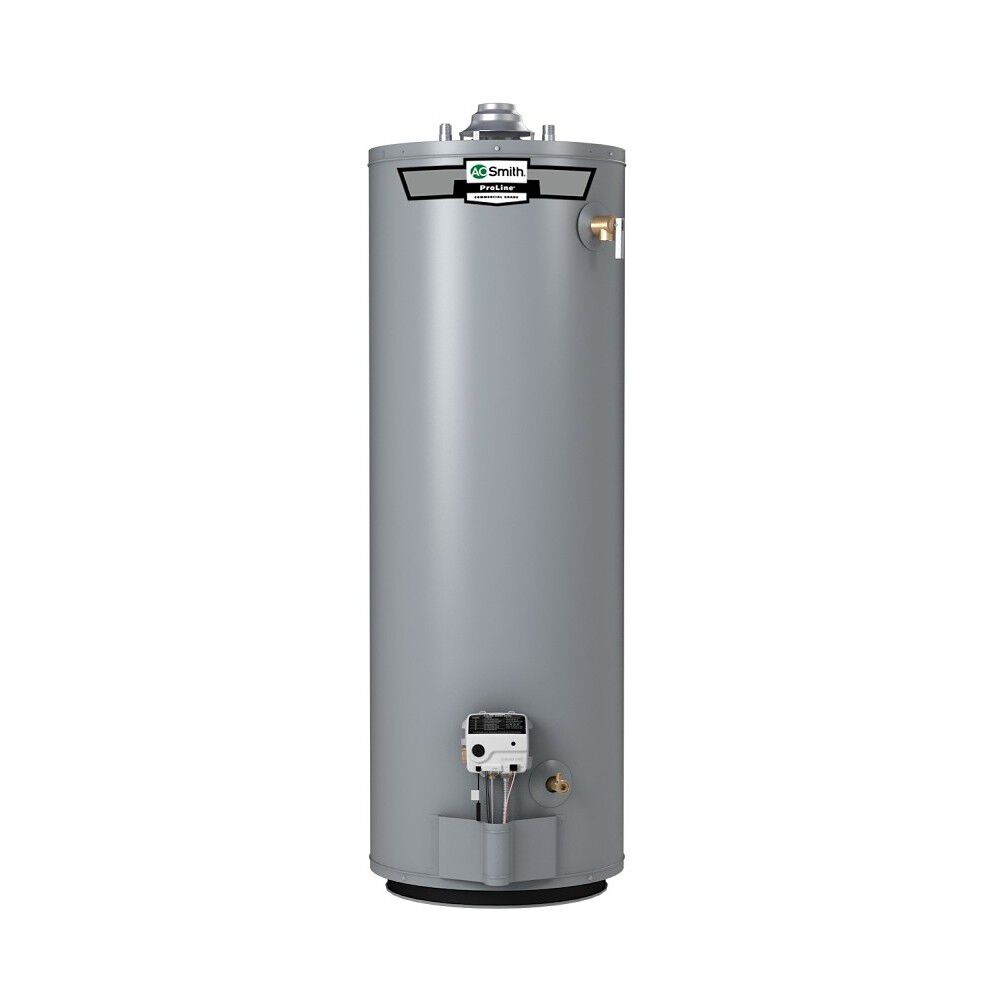

ProLine® 40-Gallon Ultra-Low Nox Atmospheric Vent Natural Gas Water Heater

Model XUR-40 410
4.4 out of 5 Customer Rating
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getAggregateRating, 10ms
  • reviews, product
  • bvseo-msg: Unsuccessful GET. status = 'ERROR', msg = 'Not Found.';
Capacity (Gallons)
Height Classification
UEF
Advanced Options
Limited Tank Warranty
Diameter

Featuring a 40-gallon (nominal) tank and a 40,000 BTU gas burner, the GUC-40 Standard Vent delivers a first hour rating of 72 gallons and a recovery rate of 41 gallons per hour.

Find a Local Pro
What to Expect from this Model
modal-clock
tooltip
Number of minutes you can enjoy a shower before running out of hot water. Assumes a 2.1 GPM flow rate
25.4 minutes
single shower length
modal-frame
tooltip
Number of back-to-back showers you can take without running out of hot water. Assumes a 2.1 GPM flow rate and an 8 minute shower length
3.2 showers
back-to-back
modal-frame
tooltip
Number of showers you can take at the same time without running out of hot water. Assumes a 2.1 GPM flow rate and an 8 minute shower length
2.4 showers
at the same time
modal-tank-capacity
tooltip
Biggest tub this water heater will fill without running out of hot water. Assumes a 5.0 GPM flow rate, and a 67% fill level
60 gallons
max tub size
modal-cost
tooltip
The estimated annual cost to operate this water heater in your location
$278/year
est. energy cost
Based on location results for Columbus, OH 43215
modal-edit
Edit Location / Advanced Settings
Specifications
Tech Specs
Nominal Gallon Capacity
40 Gallons
Rated Storage Volume
38 Gallons
UEF
0.64
Maximum BTUs
40,000
Power Source
GAS
Limited Tank Warranty
10 Years
Limited Parts Warranty
10 Years
T&P Relief Valve
Yes
Water Connection Size
0.75"
Emissions
Ultra-Low NOx
First Hour Rating
83 Gallons
ASME Certified
No
Blanket Included
No
Destination Country
US
Flue Diameter
4.00
Fuel Source
NATURAL
Height to Gas Valve
11.00
Height to T&P
51.75
Ignition Type
Pilot with Piezo Igniter
Installation Type
INDOOR
Application
RESIDENTIAL
Product Tier
ProLine®
Shipping Height
62.31"
Shipping Length
24"
Shipping Width
21"
Side Loop
No
Dimension & Venting
Type
Water Heater
Height
58.25"
Diameter
20 in."
Shipping Weight
146lbs
Vent Type
Atmospheric Vent
