Product Details
- Utilizes the industry’s lightest 199,000 BTU high efficiency condensing tankless heater
- Constructed of sturdy metal frame for back-to-back configurations
- Configure up to 1,194,000 BTU/h or up to 20 units together on a single rack system with multi-link system
- Redundant combustion system provides peace of mind & allows you to easily isolate for maintenance
- Easy field installation with three simple connections (cold water, hot water, and gas)
- Easily integrate storage into your design
- A. O. Smith common venting system means fewer wall penetrations and use schedule 40 PVC on intake and exhaust
- Warranty: 6 year limited heat exchanger, 5 year limited tankless parts and 1 year limited rack parts

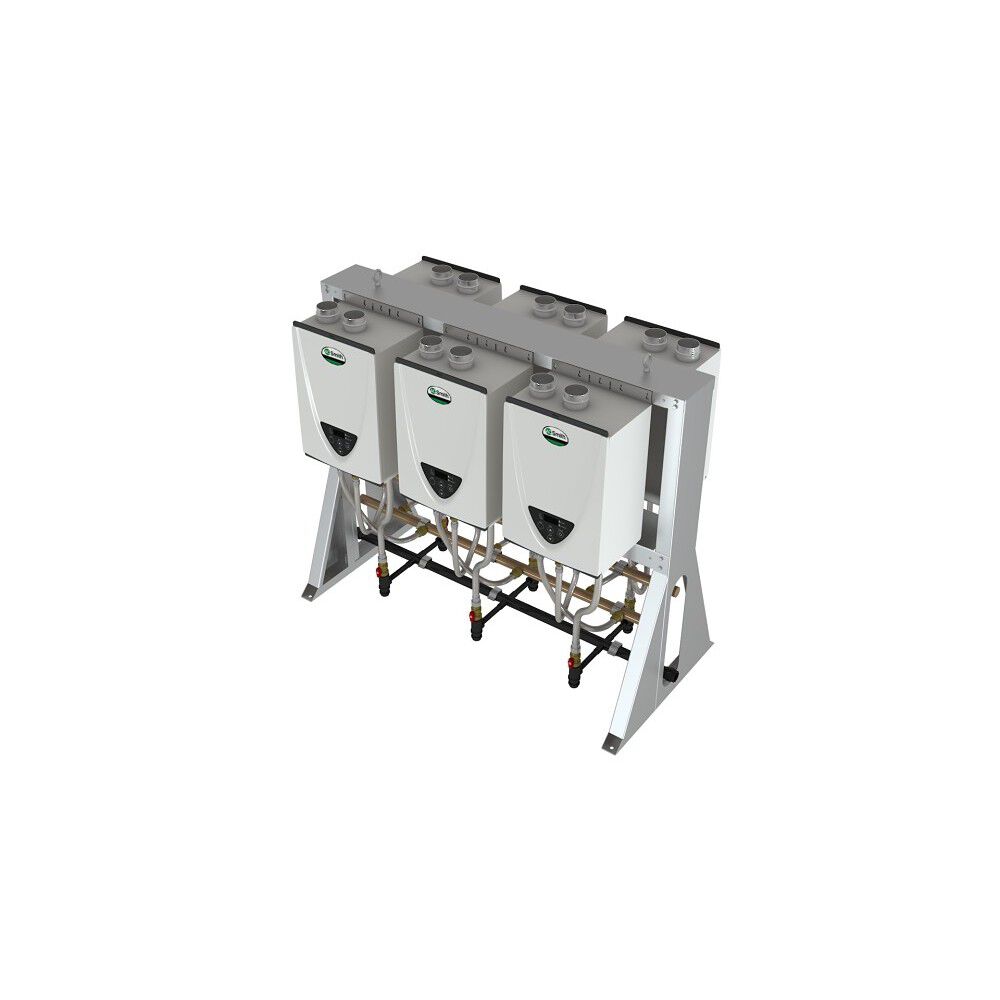

The Free Standing Back-to-Back design is available in 2, 3, 4, 5, and 6 unit configurations. Up to 1,194,000 BTU on a single rack system. Reduce installation costs with three simple connections (cold water, hot water, and gas). This model comes with 6-year limited heat exchanger warranty, a 5-year limited tankless parts warranty and a 1-year limited rack parts warranty.
Specifications
Tech Specs
Maximum BTUs
995,000
Power Source
GAS
Limited Tank Warranty
6 Years
Limited Parts Warranty
5 Years
Water Connection Size
0.75"
ASME Certified
No
Destination Country
US
Fuel Source
NATURAL
Installation Type
OUTDOOR
Limited Heat Exchanger Warranty
6 Years
Number of Water Heaters
5
Application
COMMERCIAL
Rack-Mounted
Yes
Shipping Height
69.5"
Shipping Length
69.5"
Shipping Width
39"
Side Loop
No
Dimension & Venting
Type
Water Heater
Height
53.09"
Width
30.5"
Shipping Weight
597 lbs
Height to Gas Valve
7.5"
Product Literature
Technical Literature
