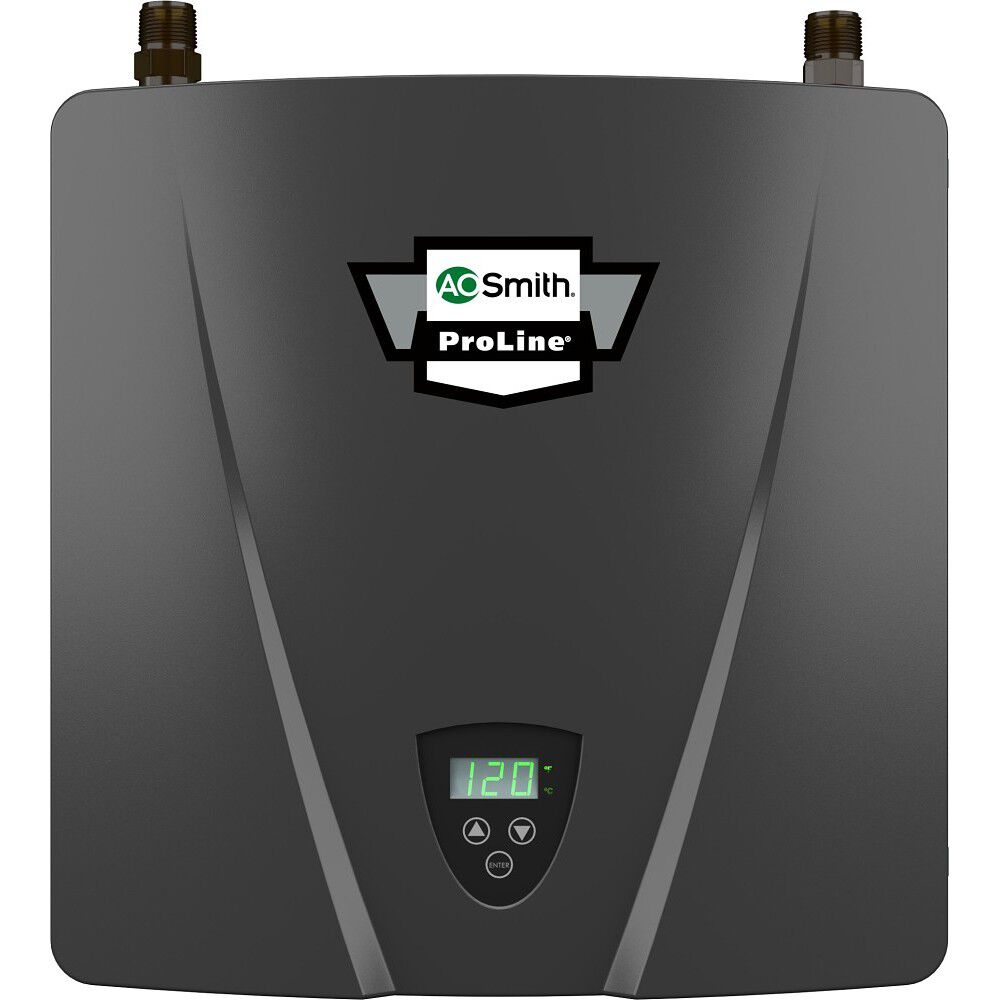

240V / 22 kW 4-Chamber Electric Tankless Water Heater

Model R4LA-220E 100
Voltage
Max Wattage

  • Delivers continuous hot water when sized appropriately
  • Dry-fire protection prevents premature element failure for care-free installation
  • Easily wall mount with no venting required
  • What to Expect from this Model
    modal-clock
    Unlimited
    single shower length
    modal-frame
    Unlimited
    back-to-back
    modal-frame
    showers
    at the same time
    modal-tank-capacity
    Unlimited
    max tub size
    modal-cost
    $524/year
    est. energy cost
    Based on location results for Columbus, OH 43215
    Product Details
    • Delivers continuous hot water when sized appropriately
    • Dry-fire protection prevents premature element failure for care-free installation
    • Easily wall mount with no venting required
    • Uses standard heating elements for easy maintenance & replacement
    • Save valuable storage space with compact design
    • Includes self diagnostics and leak detection shutdown for added peace of mind
    • Includes user friendly digital interface for temperature control and diagnostics
    • Scale reduction technology protects against hard water build up and extends the product life
    • 5-year limited warranty on chambers and 1-year limited warranty on all parts

    • The 240 Volt 22 Kilowatt 4-Chamber Electric Tankless Water Heater can provide continuous hot water when sized appropriately. A. O. Smith's Electric Tankless water heaters only heat water when needed, leading to potential energy and utility bill savings. These models are easy to install and save valuable storage space--they can be wall mounted, using standard 3/4-in NPT water connections and do not require venting. Designed with a soft start, the electric tankless produce a soft electric draw when powering on, reducing light dimming impact. Electric tankless water heaters typically require greater electrical supply capacity than standard tank-type models. This model requires 240 volts, 92 amps, 2 x 50 amp double pole breaker and #6 AWG wire size. Please check with your local professional to ensure your home's power supply and breaker panel can support this model. A. O. Smith’s ProLine® water heaters are residential products built to commercial-grade standards and are only available for purchase through professional wholesalers and contractors.

    Specifications
    Tech Specs
    UEF
    0.92
    Power Source
    ELECTRIC
    Limited Tank Warranty
    15 Years
    Limited Parts Warranty
    5 Years
    ASME Certified
    No
    Amperes
    100
    Destination Country
    US
    Installation Type
    INDOOR
    Limited Heat Exchanger Warranty
    5 Years
    Max Flow Rate
    2.20
    Max Wattage
    22,000
    Number of Elements
    4
    Product Tier
    ProLine®
    Shipping Height
    21.56"
    Shipping Length
    19.81"
    Shipping Width
    11.06"
    Side Loop
    No
    Voltage
    240
    Dimension & Venting
    Type
    Water Heater
    Height
    17.75"
    Width
    11.5"
    Shipping Weight
    22lbs
