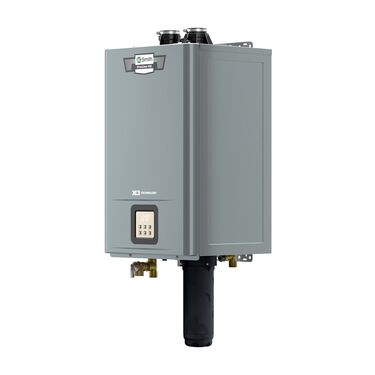

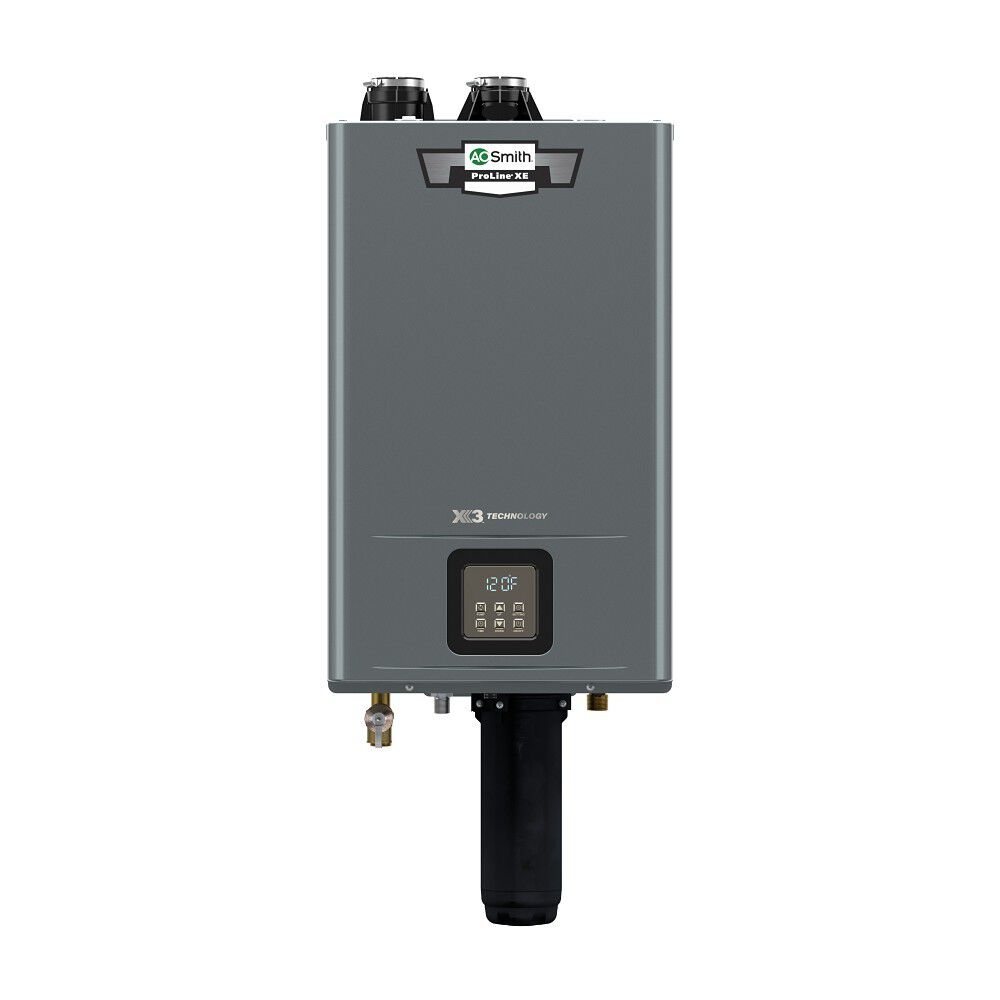

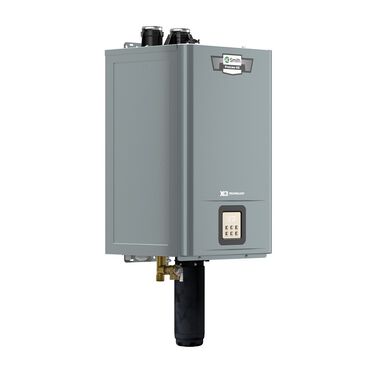

Adapt™ Premium Condensing Ultra-Low NOx 160,000 BTU Natural Gas Tankless Water Heater with X3® Scale Prevention Technology

Model ATHR-160X3 100
X3® Scale Prevention Technology
Maximum BTU's

  • ENERGY STAR® certified with a UEF of 0.95
  • Flexibility in Installation—Field convertible from natural gas to liquid propane; PVC venting flexibility (2” up to 75’ & 3" up to 150’); Install indoor or outdoor (outdoor kit sold separately)
  • Save up to $116/year on annual operating costs—When compared to a standard 50-gallon atmospheric natural gas tank water heater.
  • Product Details
    • ENERGY STAR® certified with a UEF of 0.95
    • Flexibility in Installation—Field convertible from natural gas to liquid propane; PVC venting flexibility (2” up to 75’ & 3" up to 150’); Install indoor or outdoor (outdoor kit sold separately)
    • Save up to $116/year on annual operating costs—When compared to a standard 50-gallon atmospheric natural gas tank water heater.
    • Lasts 3x Longer!—with X3® Scale Prevention Technology provides protection for the heat exchanger.
    • Improved Efficiency & Reliability—Patented heavy-duty, stainless-steel heat exchanger features only two weld points and eliminates the need for a secondary heat exchanger
    • Reduced Wait Time for Hot Water—Integrated recirculation pump assists in the delivery of hot water quickly (recirculation plumbing from fixture to unit required)
    • Expandable for Larger Applications—Cascade up to 12 like heaters when multiple water heaters are required to work in conjunction (cable included)
    • Built-in Control Display—Check status, error codes and settings and review up to two (2) recirculating schedules using the built-in display
    • Optional Remote Activation—An optional kit allows the user to engage the heater to recirculate hot water at a touch of a button for on-demand, continuous hot water

    • The ATHR-160X3 ADAPT™ premium condensing gas tankless water heater uses up to 160,000 BTUs of Natural Gas or Liquid Propane to deliver a max flow rate of 10.5 gal/min. A. O. Smith’s ADAPT™ premium condensing gas tankless water heaters deliver robust, on-demand performance and the flexibility to install in virtually any residential setting.

      Built-in X3® Scale Prevention Technology helps maintain like-new performance by protecting the heat exchanger from build-up. Scale-prevention protection can prolong the life of the heat exchanger by up to 300% compared to an unprotected unit.

      The ADAPT™ line features a built-in Control Display for setting and reviewing up to two recirculating schedules—as well as checking heater status and error codes. Manage temperature settings and activate the heater and recirculation pump remotely with optional kits (sold separately).

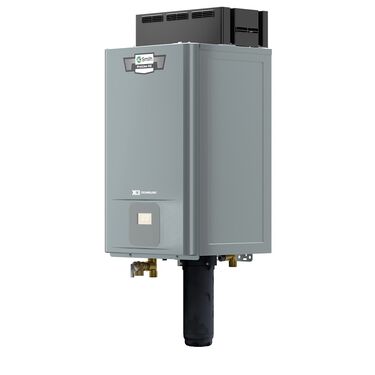

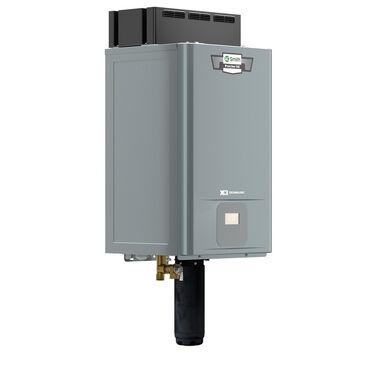

      All models are ENERGY STAR® certified with a Uniform Energy Factor of 0.95 and comply with Ultra-Low NOx regulations. All ADAPT™ models are field convertible from Natural Gas to Liquid Propane (kit included) and can be installed indoors or outdoors with an Outdoor Vent Cap Kit (sold separately).

      Cascade up to 12 like heaters together for larger applications requiring multiple water heaters to work in conjunction, cable included.

    Specifications
    Tech Specs
    UEF
    0.95
    Maximum BTUs
    160,000
    Power Source
    GAS
    Limited Parts Warranty
    5 Years
    Water Connection Location
    BOTTOM
    Water Connection Size
    3/4-in"
    Emissions
    Ultra-Low NOx
    ASME Certified
    No
    Amperes
    5
    Destination Country
    US
    ENERGY STAR® Certified
    true
    Flue Diameter
    2.00
    Fuel Source
    NATURAL
    Ignition Type
    Electronic Hot Surface Igniter
    Installation Type
    BOTH
    Limited Heat Exchanger Warranty
    15 Years
    Max Flow Rate
    4.80
    Minimum BTUs
    9,000.00
    Product Tier
    ProLine® XE
    Shipping Height
    20.75"
    Shipping Length
    40"
    Shipping Width
    22.25"
    Side Loop
    No
    Vent Material
    ABS, PVC, CPVC and polypropylene
    Voltage
    120
    Dimension & Venting
    Type
    Water Heater
    Height
    41.8"
    Width
    16.53"
    Shipping Weight
    125lbs
