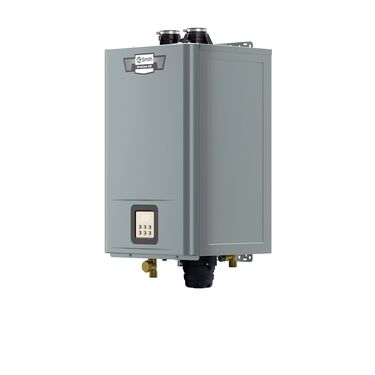

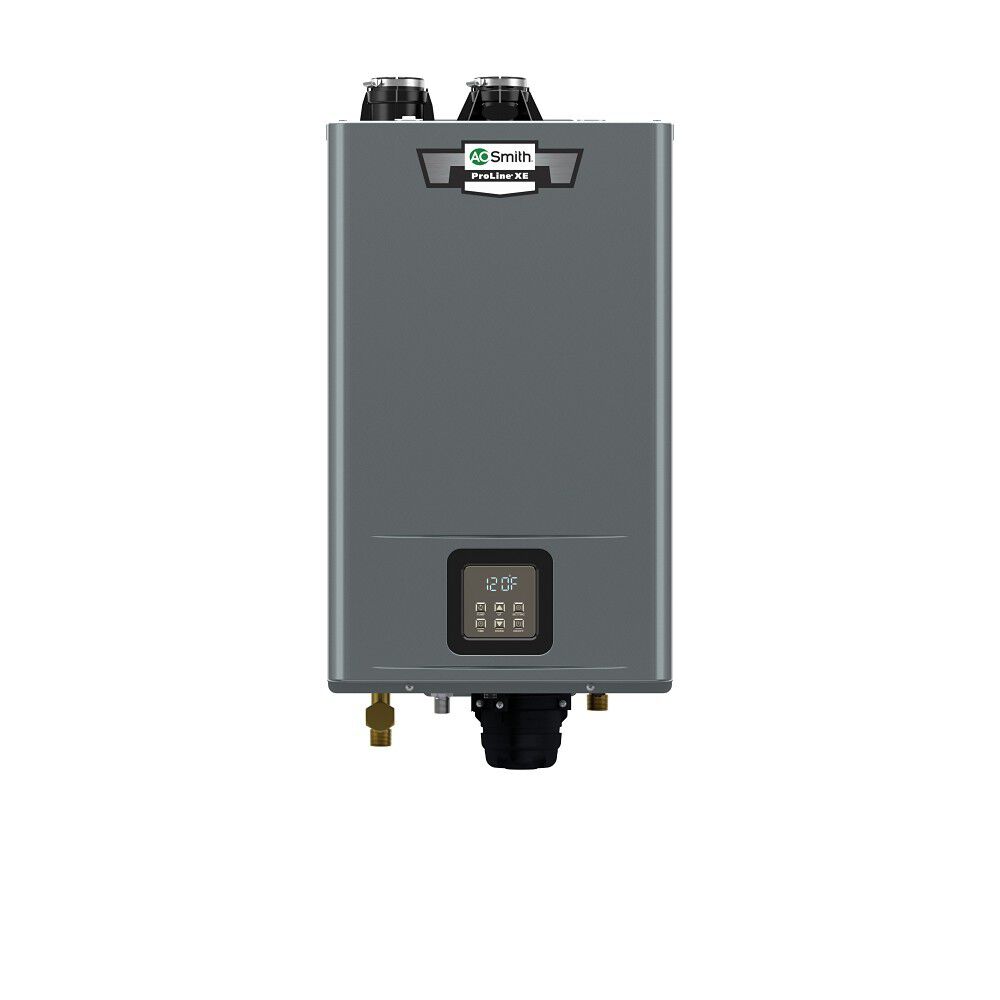

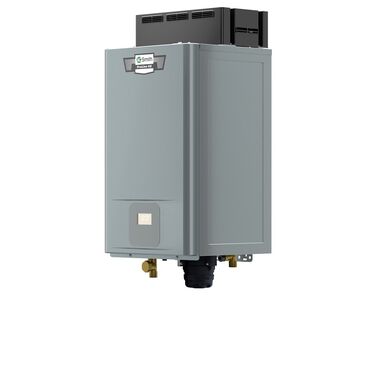

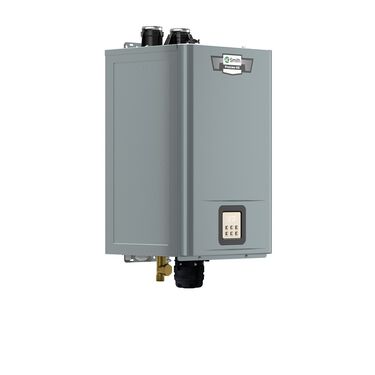

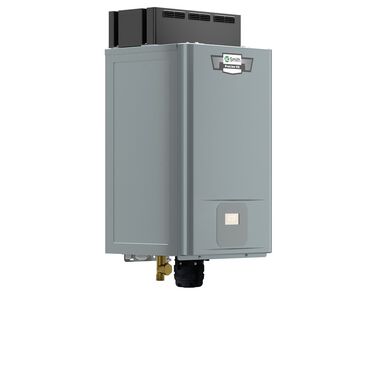

Adapt™ Premium Condensing Ultra-Low NOx 160,000 BTU Natural Gas Tankless Water Heater

Model ATHR-160M
X3Scale Prevention Technology
Maximum BTU's

  • ENERGY STAR® certified with a Uniform Energy Factor of 0.95
  • Easily add X3® Scale Prevention any time as an optional accessory with a bypass cartridge to maintain like-new performance (sold separately)
  • Delivers robust, on-demand performance and the flexibility to install in practically any residential setting
  • Product Details
    • ENERGY STAR® certified with a Uniform Energy Factor of 0.95
    • Easily add X3® Scale Prevention any time as an optional accessory with a bypass cartridge to maintain like-new performance (sold separately)
    • Delivers robust, on-demand performance and the flexibility to install in practically any residential setting
    • Patented Heat Exchanger features a heavy-duty stainless-steel design with only two weld points that improves reliability and is more resistant to scale buildup and corrosion
    • Integrated Recirculation Pump to reduce wait times at the farthest fixtures
    • Convert Natural Gas to Liquid Propane with the included field conversion kit
    • Connect ADAPT™ tankless models to the internet with optional WiFi module (sold separately)
    • Set and review recirculation schedules (up to two); check heater status and error codes with the built-in Control Display
    • Optional Remote Recirculation Kit engages heater and recirculation at a touch of a button for on-demand hot water

    • A. O. Smith’s ADAPT™ premium condensing gas tankless water heaters deliver robust, on-demand performance and the flexibility to install in practically any residential setting. Easily add scale prevention protection by replacing the bypass cartridge with an optional X3 cartridge sold separately — which can make the heat exchanger last up to three times longer than a standard tankless water heater while maintaining like-new performance. The ADAPT™ line features a built-in Control Display for setting and reviewing up to two recirculating schedules, as well as checking heater status and error codes. Manage temperature settings and activate the heater and recirculation remotely with optional kits (sold separately). All models are ENERGY STAR® certified and extremely efficient with a Uniform Energy Factor of 0.95 and also comply with Ultra-Low NOx regulations. All ADAPT™ models are field convertible from Natural Gas to Liquid Propane, kit included, and can be installed indoors or outdoors (with an Outdoor Vent Cap Kit sold separately). Cascade up to 12 like heaters together for larger applications requiring multiple water heaters to work in conjunction, cable included.

    Specifications
    Tech Specs
    UEF
    0.95
    Maximum BTUs
    160,000
    Power Source
    GAS
    Limited Parts Warranty
    5 Years
    Water Connection Location
    BOTTOM
    Water Connection Size
    3/4-in"
    Emissions
    Ultra-Low NOx
    ASME Certified
    No
    Amperes
    5
    Destination Country
    US
    Energy Star Certified
    true
    Flue Diameter
    2.00
    Fuel Source
    NATURAL
    Ignition Type
    Electronic Hot Surface Igniter
    Installation Type
    BOTH
    Limited Heat Exchanger Warranty
    15 Years
    Max Flow Rate
    4.80
    Minimum BTUs
    9,000.00
    Product Tier
    ProLine® XE
    Shipping Height
    20.75
    Shipping Length
    40
    Shipping Width
    22.25
    Side Loop
    No
    Vent Material
    ABS, PVC, CPVC and polypropylene
    Voltage
    120
    Dimension & Venting
    Type
    Water Heater
    Height
    34"
    Width
    16.53"
    Shipping Weight
    125lbs
