Product Details
- 67-gallon first hour rating
- Leak Detection—Leak detection sensor sounds an audible alarm when water is detected
- Automatic shut-off valve closes valve on incoming cold water inlet when leak is detected
- 8-Year limited warranty—Extendable by 4 years for added peace of mind
- Adjust water temperature, operating modes, and schedule hot water demand with iCOMM™ Wi-Fi technology
- Dual 5500-Watt heating elements provide fast recovery and reliable operation
- Efficient and economical—CTA-2045 port enables connection to Utility Smart Grid programs
- Enhanced-flow brass drain valve—Tamper-resistant, easy to operate, and allows quick draining during maintenance
- Stainless steel heating elements—Longer-lasting compared to standard copper elements
- Eco-friendly foam insulation and heat traps maximize energy savings
- Leak Detection Sensor: Alerts you immediately with an audible alarm if water is detected
- Automatic Shut-Off Valve: Stops incoming water flow to prevent damage in case of a leak

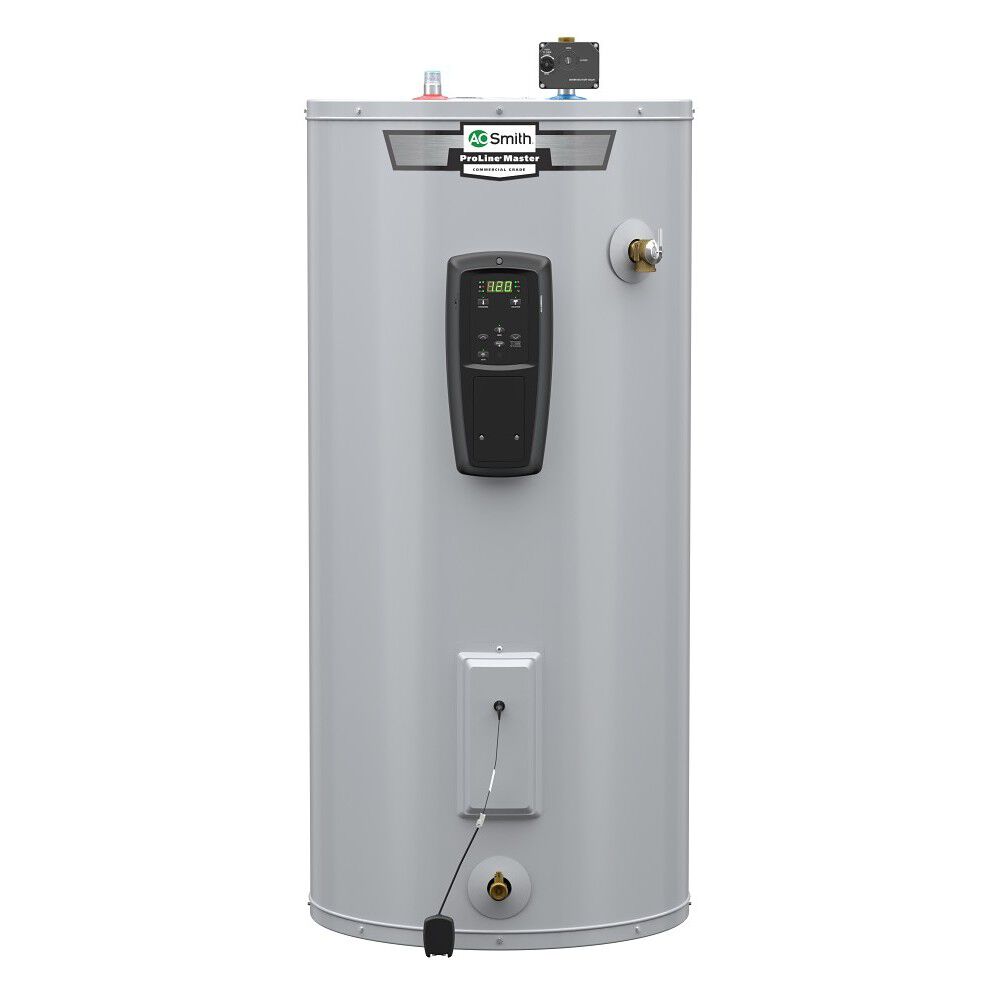

Looking for a smarter, safer, and more efficient way to heat water in your home? The ProLine® Master Smart Electric Grid-Capable Water Heater from A. O. Smith is the ultimate solution for modern homeowners. Packed with advanced features, these water heaters deliver reliable performance, energy savings, and peace of mind.
Take control of your hot water like never before! With iCOMM™ Wi-Fi Technology, you can adjust water temperature, change operating modes, and schedule hot water demand—all from the convenience of your smartphone using the free A. O. Smith app. Plus, the built-in CTA-2045 port can connect to Utility Smart Grid Programs, helping you optimize energy usage and save on costs.
Protect your home with advanced safety features:
Enjoy peace of mind knowing this model is backed by an 8-Year Limited Warranty.
Specifications
Tech Specs
Nominal Gallon Capacity
50 Gallons
Rated Storage Volume
46 Gallons
UEF
0.92
Power Source
ELECTRIC
Limited Tank Warranty
8 Years
Limited Parts Warranty
8 Years
Water Connection Location
TOP
Water Connection Size
0.75"
First Hour Rating
67 Gallons
ASME Certified
No
Blanket Included
No
Destination Country
US
Digital Display
true
Installation Type
INDOOR
Max Wattage
4,500
Number of Elements
2
Application
RESIDENTIAL
Shipping Height
52.75"
Shipping Length
26.25"
Shipping Width
24"
Side Loop
No
Voltage
240
Dimension & Venting
Type
Water Heater
Height
49.75"
Diameter
23 in."
Width
23"
Shipping Weight
117lbs
