- Delivers 55-gallon first hour rating
- Dual 4,500-watt commercial-grade heating elements deliver reliable and efficient hot water
- Long-lasting lower Incoloy™ stainless steel element
- HUD compliant, approved for mobile homes/manufactured housing
- Patented Blue Diamond® glass tank lining protects against corrosion
- DynaClean™ automatic cleaning system protects against sediment build-up
- Stainless steel Coregard™ anode rod protects against corrosion longer than ordinary anodes
- Commercial-grade brass drain valve for durable and easy operation
- CSA Certified and ASME Rated T&P Relief Valve, Factory-Installed
- 10-year limited tank and parts warranty

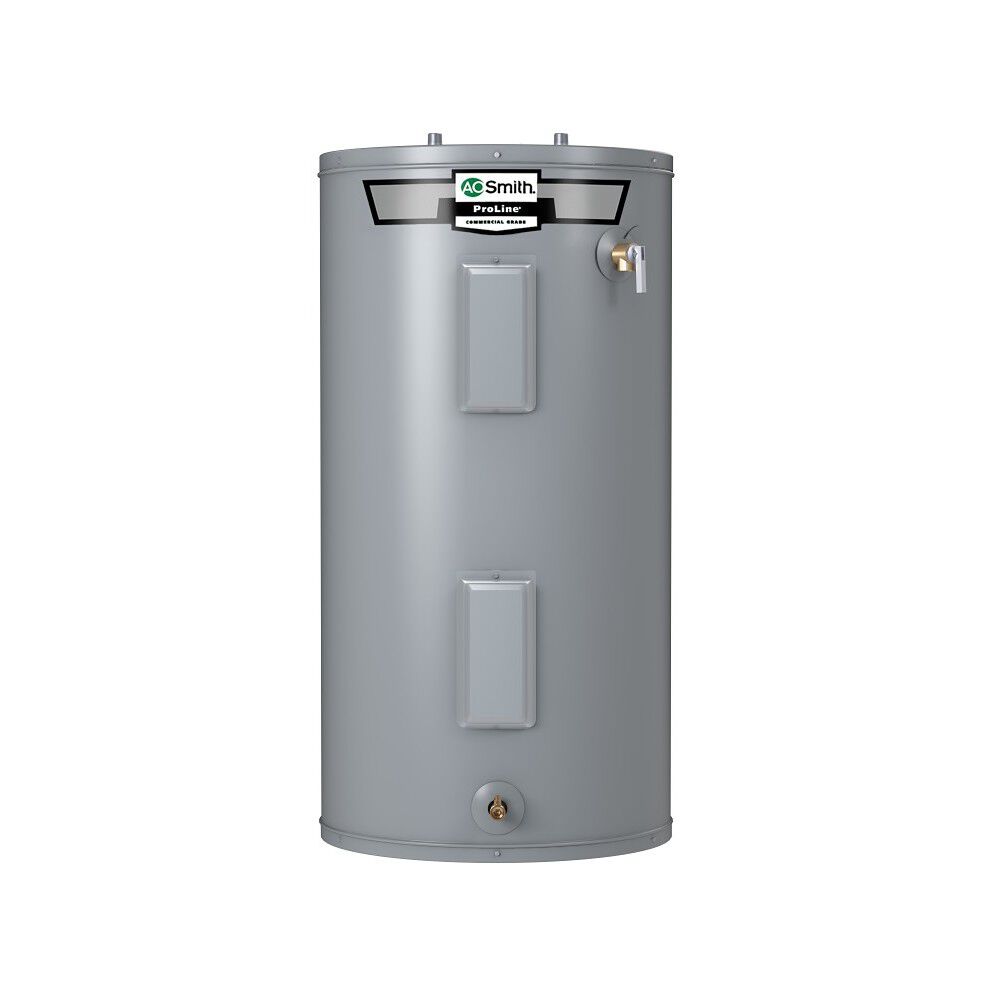

The ProLine® Standard Electric water heater is the reliable choice when you want to maximize hot water output and energy savings. With a 40-gallon (nominal) tank and dual 4,500 watt elements, the PNS-40 delivers a first hour rating of 55 gallons at a highly efficient 0.92 Uniform Energy Factor rating. Environmentally-friendly insulation and factory-installed heat trap nipples reduce heat loss for maximum energy savings. This ProLine® water heater is designed with A. O. Smith's superior commercial-grade tank protection. Advanced tank features include stainless steel Coregard™ anode rod, Blue Diamond® glass lining and DynaClean™ automatic sediment-cleaning system, all designed to help protect the tank from the corrosive effects of water and extend the life of the water heater. All of these features are accompanied by a 10-year limited tank warranty. A. O. Smith’s ProLine® water heaters are residential products built to commercial-grade standard and are only available for purchase through professional wholesalers and contractors.
