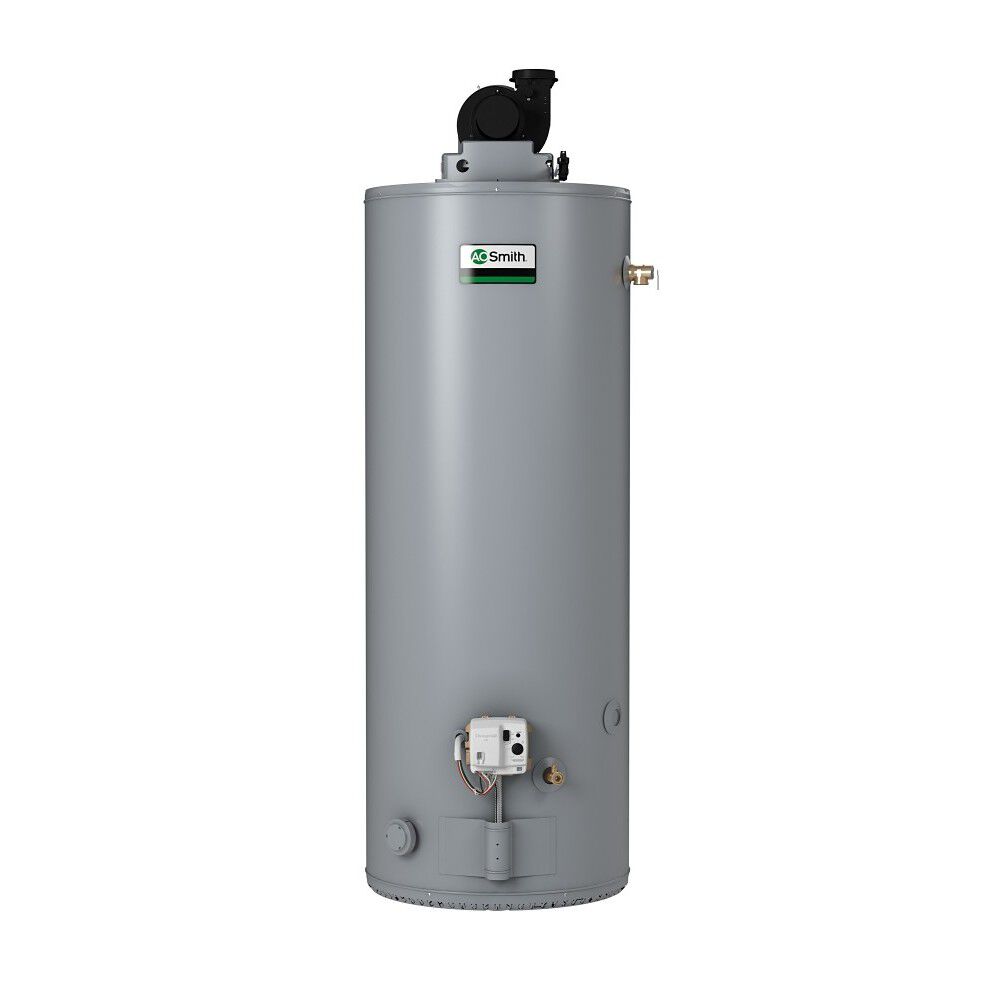

Conservationist® 75-Gallon Power Vent Commercial Gas Water Heater

Model BTF-80
Capacity (Gallons)
Fuel Source
Maximum BTU's
Side Loop
  • Delivers 74 GPH at 100°F Rise
  • Hot surface ignition does not blow out, providing reliability and efficiency over spark ignitions
  • Flexible power vent design vents through the roof or sidewall with PVC, CPVC, ABS, and polypropylene
Product Details
  • Delivers 74 GPH at 100°F Rise
  • Hot surface ignition does not blow out, providing reliability and efficiency over spark ignitions
  • Flexible power vent design vents through the roof or sidewall with PVC, CPVC, ABS, and polypropylene
  • 76,000 BTU input assures plenty of hot water is available by providing faster recovery rates and higher first hour draws
  • User-friendly electronic gas control provides precise temperature control, operational status and diagnostics
  • Enhanced flow brass drain valve designed for easy maintenance and easy operation
  • Blue Diamond® Glass Coating provides superior corrosion resistance compared to the industry-standard glasslining
  • Tank-mounted, screw-in magnesium anodes protect against tank corrosion, extending the life of the product
  • Built-in condensate fitting attaches vent pipe to the blower
  • 3-year limited tank and 1-year limited parts warranty

  • Conservationist® Power Vent has a solid state ignition surface that does not flutter or blow out. Provides increased reliability and efficiency over spark ignition systems. Eliminates the pilot and saves energy. Air is precisely drawn through the combustion control port and exhausted through plastic pipe. Controlling the airflow through the heater enhances and regulates the combustion process. In standby mode, the combustion control port restricts air circulation through the heater. BTF-80 uses up to 76,000 BTU/h of gas to deliver 74 GPH at 100 rise. A. O. Smith offers the largest commercial product selection available, including the most specified commercial unit in the U.S. We offer more than 500 different commercial models, including gas fired, oil-fired and electric configurations, ranging in capacities from 5 to 10,000 gallons, with input range from 50,000 BTU to the equivalent of 4,000,000 BTU. Our comprehensive line is the natural fit for spec jobs requiring everything from the smallest commercial installation up to the largest multi-structure complex.

Specifications
Tech Specs
Nominal Gallon Capacity
75 Gallons
Rated Storage Volume
72 Gallons
UEF
0.69
Thermal Efficiency
82%
Maximum BTUs
76,000
Power Source
GAS
Limited Tank Warranty
3 Years
Limited Parts Warranty
1 Years
T&P Relief Valve
TRUE
Water Connection Location
TOP
First Hour Rating
116 Gallons
ASME Certified
No
Amperes
5
Destination Country
US
Flue Diameter
5.00
Fuel Source
PROPANE
Installation Type
INDOOR
Application
COMMERCIAL
Recovery Rise at 90°F
84
Shipping Height
72.25
Shipping Length
35.2
Shipping Width
27.38
Side Loop
Yes
Voltage
120
Dimension & Venting
Type
Water Heater
Diameter
26 in."
Shipping Weight
277lbs
Vent Type
Power Vent
