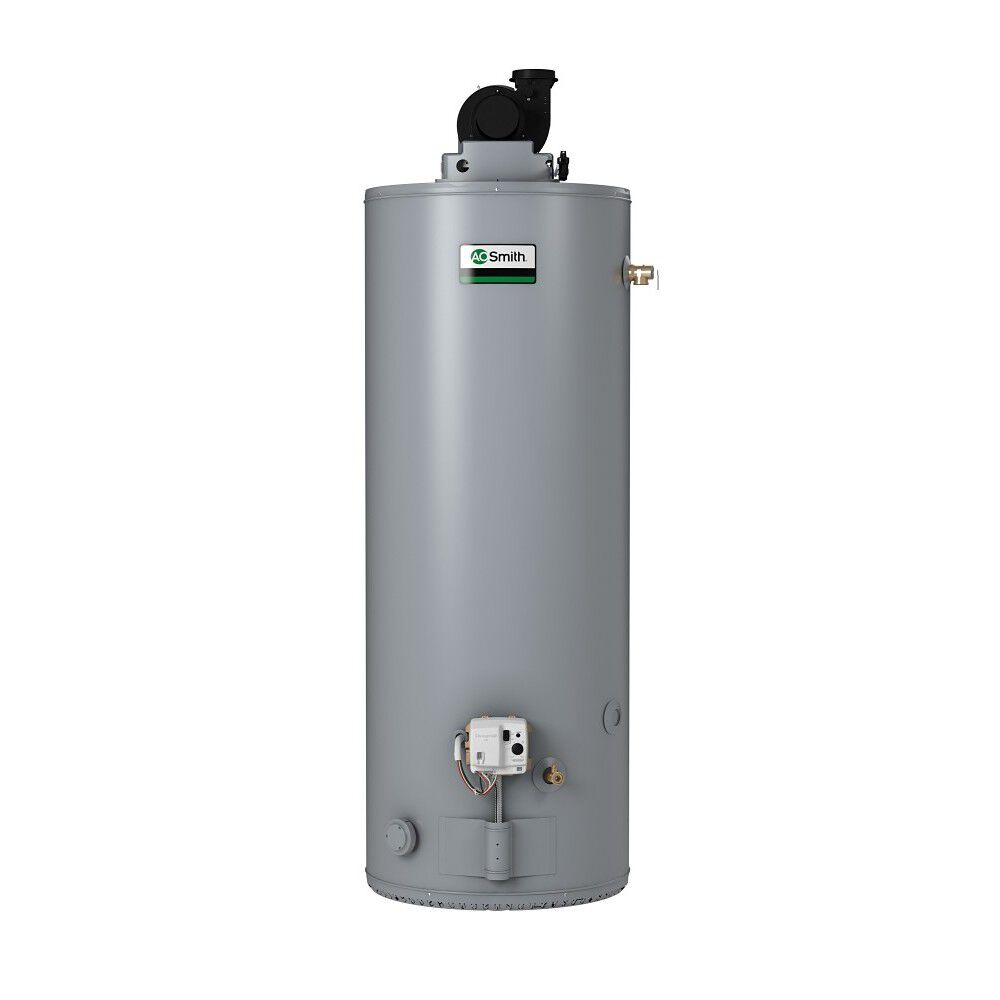

Conservationist® 75-Gallon Power Vent Commercial Gas Water Heater

Model BTF-80 310
Capacity (Gallons)
Fuel Source
Maximum BTU's
Side Loop

  • Delivers 74 GPH at 100°F Rise
  • Hot surface ignition does not blow out, providing reliability and efficiency over spark ignitions
  • Flexible power vent design vents through the roof or sidewall with PVC, CPVC, ABS, and polypropylene
  • Product Details
    • Delivers 74 GPH at 100°F Rise
    • Hot surface ignition does not blow out, providing reliability and efficiency over spark ignitions
    • Flexible power vent design vents through the roof or sidewall with PVC, CPVC, ABS, and polypropylene
    • 76,000 BTU input assures plenty of hot water is available by providing faster recovery rates and higher first hour draws
    • User-friendly electronic gas control provides precise temperature control, operational status and diagnostics
    • Enhanced flow brass drain valve designed for easy maintenance and easy operation
    • Blue Diamond® Glass Coating provides superior corrosion resistance compared to the industry-standard glasslining
    • Tank-mounted, screw-in magnesium anodes protect against tank corrosion, extending the life of the product
    • Built-in condensate fitting attaches vent pipe to the blower
    • 3-year limited tank and 1-year limited parts warranty

    • Conservationist® Power Vent has a solid state ignition surface that does not flutter or blow out. Provides increased reliability and efficiency over spark ignition systems. Eliminates the pilot and saves energy. Air is precisely drawn through the combustion control port and exhausted through plastic pipe. Controlling the airflow through the heater enhances and regulates the combustion process. In standby mode, the combustion control port restricts air circulation through the heater. BTF-80 uses up to 76,000 BTU/h of gas to deliver 74 GPH at 100 rise. A. O. Smith offers the largest commercial product selection available, including the most specified commercial unit in the U.S. We offer more than 500 different commercial models, including gas fired, oil-fired and electric configurations, ranging in capacities from 5 to 10,000 gallons, with input range from 50,000 BTU to the equivalent of 4,000,000 BTU. Our comprehensive line is the natural fit for spec jobs requiring everything from the smallest commercial installation up to the largest multi-structure complex.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    75 Gallons
    Rated Storage Volume
    72 Gallons
    UEF
    0.69
    Thermal Efficiency
    82%
    Maximum BTUs
    76,000
    Power Source
    GAS
    Limited Tank Warranty
    3 Years
    Limited Parts Warranty
    1 Years
    T&P Relief Valve
    Yes
    Water Connection Location
    TOP
    First Hour Rating
    116 Gallons
    ASME Certified
    No
    Amperes
    5
    Destination Country
    US
    Flue Diameter
    5.00
    Fuel Source
    NATURAL
    Installation Type
    INDOOR
    Application
    COMMERCIAL
    Recovery Rise at 90°F
    84
    Shipping Height
    72.25"
    Shipping Length
    35.2"
    Shipping Width
    27.38"
    Side Loop
    Yes
    Voltage
    120
    Dimension & Venting
    Type
    Water Heater
    Diameter
    26 in."
    Shipping Weight
    277lbs
    Vent Type
    Power Vent
