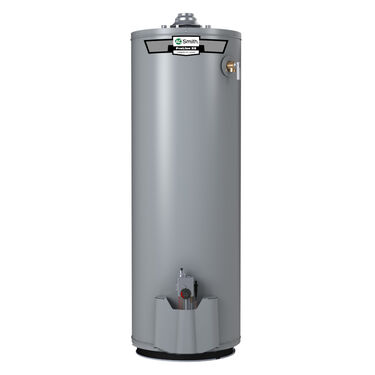

ProLine® XE 40-Gallon Non-Powered Flue Damper Natural Gas Water Heater

Model GCD-40
4.8 out of 5 Customer Rating
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getAggregateRating, 10ms
  • reviews, product
  • bvseo-msg: Unsuccessful GET. status = 'ERROR', msg = 'Not Found.';
Capacity (Gallons)
Limited Tank Warranty
Height Classification
Advanced Options
Fuel Source
First Hour Rating
Maximum BTU's
Side Loop
Blanket

  • Delivers 82-gallon first hour rating
  • 40,000 BTU input atmospheric vent design delivers up to 0.68 Uniform Energy Factor
  • This gas water heater does not require electricity
  • Product Details
    • Delivers 82-gallon first hour rating
    • 40,000 BTU input atmospheric vent design delivers up to 0.68 Uniform Energy Factor
    • This gas water heater does not require electricity
    • Innovative non-powered flue damper design automatically opens and closes to reduce heat loss in standby mode
    • Patented eco-friendly Green Choice® Gas Burner design reduces NOx emissions by up to 33% and complies with Low-NOx emission requirements
    • Push-button piezo ignitor makes lighting pilot fast & easy
    • Patented Blue Diamond® glass tank lining protects against corrosion
    • DynaClean™ automatic cleaning system protects against sediment build-up
    • 6-year limited tank and parts warranty

    • Introducing the ProLine® XE 40-Gallon Atmospheric Vent Natural Gas Water Heater with Non-Powered Flue Damper--the only high efficiency gas product that does not require electricity. This product uses an inlet air damper underneath the combustion chamber that operates using gas pressure. This damper reduces airflow through the heater during the off cycle or when water is not being heated. Featuring a 40-gallon (nominal) tank and a 40,000 BTU gas burner, the GCD-40 standard vent delivers a first hour rating of 82 gallons and a recovery rate of 40 gallons per hour. This model features a 0.68 Uniform Energy Factor and carries a 6-year limited warranty. Environmentally-friendly insulation and factory-installed heat trap nipples reduce heat loss for maximum energy savings. This ProLine® water heater is designed with A. O. Smith's superior commercial-grade tank protection. Advanced tank features include stainless steel Coregard™ anode rod, Blue Diamond® glass lining and DynaClean™ automatic sediment-cleaning system, all designed to help protect the tank from the corrosive effects of water and extend the life of the water heater. A. O. Smith’s ProLine® water heaters are residential products built to commercial-grade standard and are only available for purchase through professional wholesalers and contractors.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    40 Gallons
    Rated Storage Volume
    38 Gallons
    UEF
    0.68
    Maximum BTUs
    40,000
    Power Source
    GAS
    Limited Tank Warranty
    6 Years
    Limited Parts Warranty
    6 Years
    T&P Relief Valve
    TRUE
    Water Connection Location
    TOP
    Water Connection Size
    0.75"
    Emissions
    Low NOx
    First Hour Rating
    82 Gallons
    ASME Certified
    No
    LEED Rating
    1.00
    Blanket Included
    No
    Destination Country
    US
    Flue Diameter
    4.00
    Fuel Source
    NATURAL
    Height to Gas Valve
    14.25
    Height to T&P
    52.50
    Ignition Type
    Pilot with Piezo Igniter
    Installation Type
    INDOOR
    Application
    RESIDENTIAL
    Product Tier
    ProLine® XE
    Shipping Height
    62.5
    Shipping Length
    26.5
    Shipping Width
    20.875
    Side Loop
    No
    Dimension & Venting
    Type
    Water Heater
    Height
    59"
    Diameter
    20 in."
    Shipping Weight
    140lbs
    Vent Type
    Atmospheric Vent
