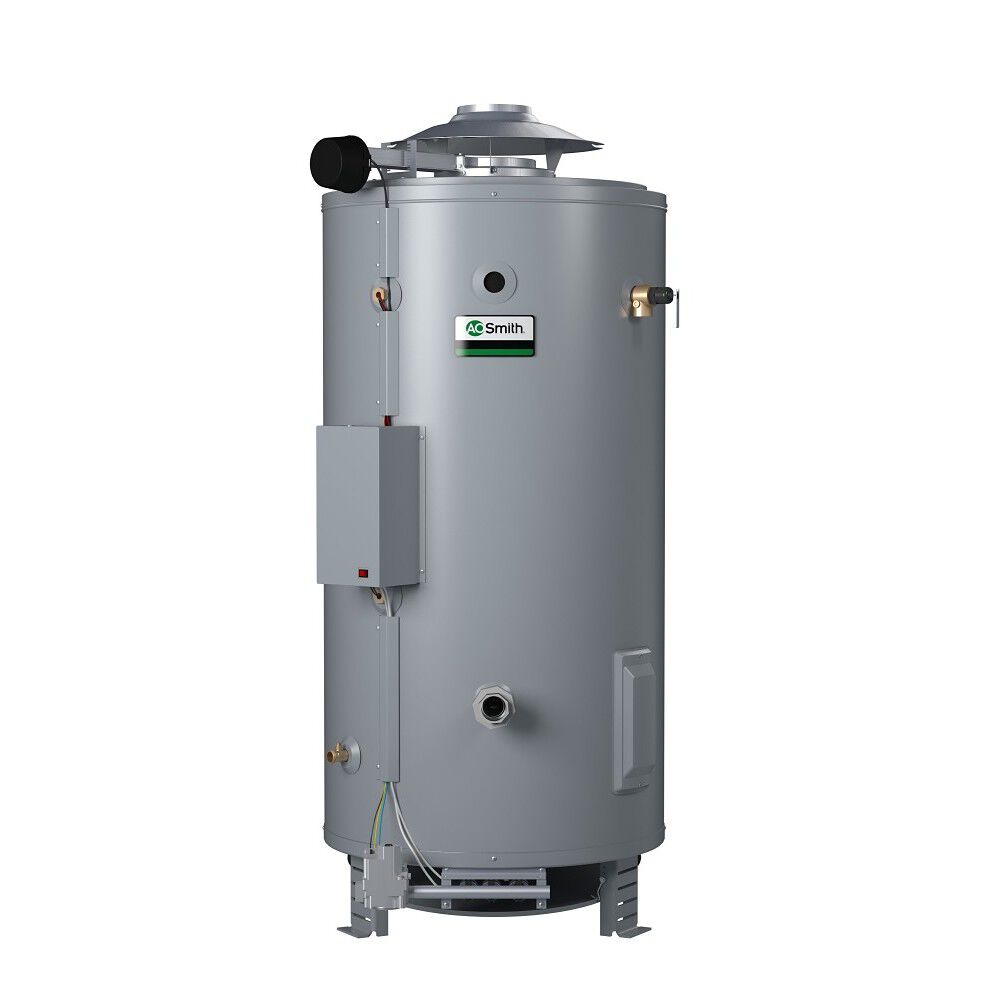

Master-Fit® BTR SELF-CLEANING COMMERCIAL GAS WATER HEATER — BTR MODELS

Model BTR-200 118
Capacity (Gallons)
Fuel Source
Maximum BTU's
ASME Indicator
Diameter

  • Self-Cleaning Hydro Cannon™
  • Automatic Flue Damper (120 - 390 Models)
  • Three Water Connection Options
  • Product Details
    • Self-Cleaning Hydro Cannon™
    • Automatic Flue Damper (120 - 390 Models)
    • Three Water Connection Options
    • Intermittent Electronic Ignition
    • Glasslined Tank with Multiple Anode Rods
    • CoreGard™ anode rods with stainless steel core provide additional corrosion protection
    • Intermittent electronic ignition eliminates standing pilot, saving energy
    • Eliminator™ self-cleaning system reduces sediment build-up, maintaining rated thermal efficiency and reducing water heating costs (operates when cold water is connected through front)
    • Factory-installed, CSA Certified and ASME Rated T&P Relief Valve
    • 3-year limited tank and 1-year limited parts warranty

    • Master-Fit® BTR is the original money-saving self-cleaning water heater. It provides outstandingperformance and installation flexibility for new construction and replacement applications.
      The Master-Fit® BTR series offers installer-friendly features, including compact low-profile
      design, multiple options for water connections and low installation clearances.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    100 Gallons
    Rated Storage Volume
    98 Gallons
    Thermal Efficiency
    80%
    Maximum BTUs
    199,000
    Power Source
    GAS
    Limited Tank Warranty
    3 Years
    Limited Parts Warranty
    1 Years
    T&P Relief Valve
    Yes
    ASME Certified
    No
    Amperes
    5
    Destination Country
    US
    Fuel Source
    NATURAL
    Installation Type
    INDOOR
    Application
    COMMERCIAL
    Recovery Rise at 90°F
    214
    Shipping Height
    80"
    Shipping Length
    41"
    Shipping Width
    34"
    Side Loop
    No
    Voltage
    120
    Dimension & Venting
    Type
    Water Heater
    Diameter
    30.25 in."
    Shipping Weight
    720lbs
