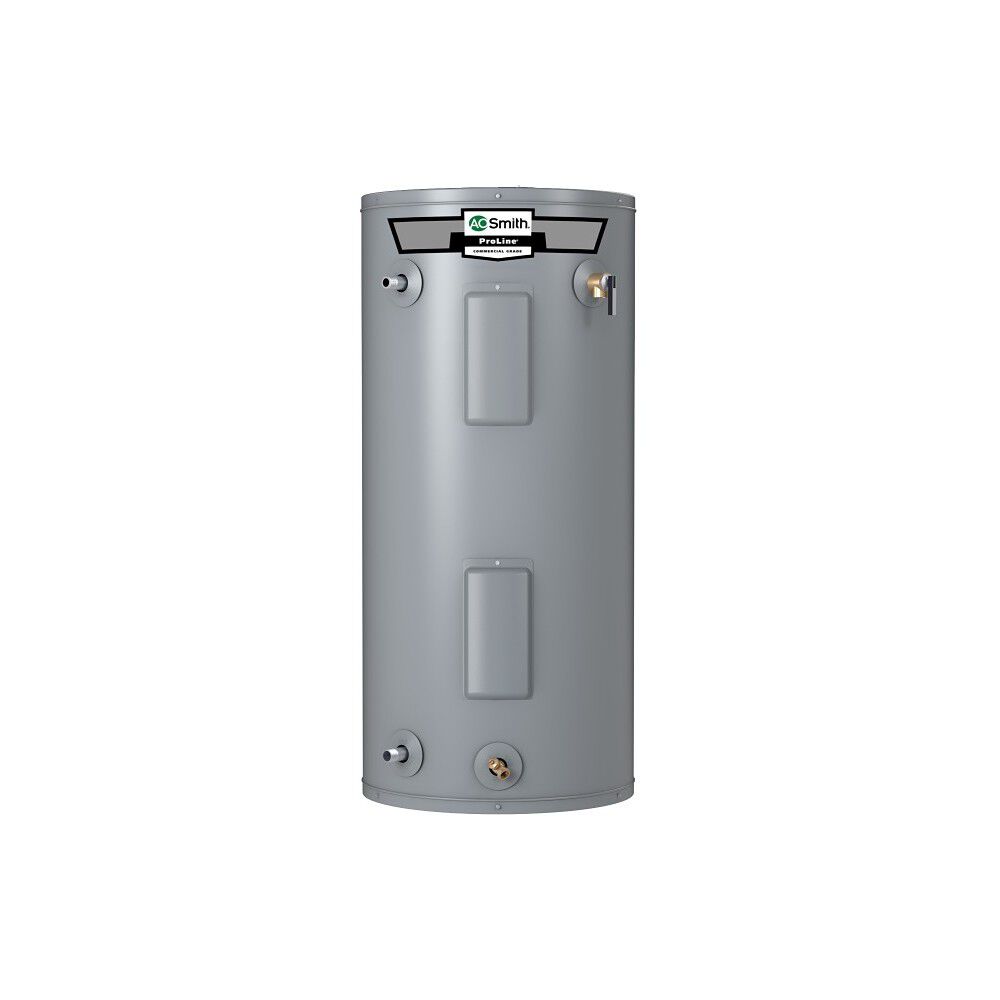

ProLine® 28-Gallon Mobile Home Electric Water Heater

Model EMHL-30 100
4.9 out of 5 Customer Rating
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getAggregateRating, 22ms
  • reviews, product
  • bvseo-msg: Unsuccessful GET. status = 'ERROR', msg = 'Not Found.';
Capacity (Gallons)
Height Classification
Advanced Options
Max Wattage
First Hour Rating

  • Delivers 47-gallon first hour rating
  • HUD compliant, approved for mobile homes/manufactured housing
  • Screw-in, direct immersion, commercial-grade heating elements for maximum efficiency

    • Find a Local Pro
    What to Expect from this Model
    modal-clock
    tooltip
    Number of minutes you can enjoy a shower before running out of hot water. Assumes a 2.1 GPM flow rate
    10.3 minutes
    single shower length
    modal-frame
    tooltip
    Number of back-to-back showers you can take without running out of hot water. Assumes a 2.1 GPM flow rate and an 8 minute shower length
    1.3 showers
    back-to-back
    modal-frame
    tooltip
    Number of showers you can take at the same time without running out of hot water. Assumes a 2.1 GPM flow rate and an 8 minute shower length
    1.3 showers
    at the same time
    modal-tank-capacity
    tooltip
    Biggest tub this water heater will fill without running out of hot water. Assumes a 5.0 GPM flow rate, and a 67% fill level
    31 gallons
    max tub size
    modal-cost
    tooltip
    The estimated annual cost to operate this water heater in your location
    $535/year
    est. energy cost
    Based on location results for Columbus, OH 43215
    modal-edit
    Edit Location / Advanced Settings
    Product Details
    • Delivers 47-gallon first hour rating
    • HUD compliant, approved for mobile homes/manufactured housing
    • Screw-in, direct immersion, commercial-grade heating elements for maximum efficiency
    • Side water connections for ease of installation in mobile home applications
    • Patented Blue Diamond® glass tank lining protects against corrosion
    • DynaClean™ automatic cleaning system protects against sediment build-up
    • Stainless steel CoreGard™ anode rod protects against corrosion longer than ordinary anodes
    • Commercial-grade brass drain valve for durable and easy operation
    • CSA Certified and ASME Rated T&P Relief Valve, Factory-Installed
    • 6-year limited tank and parts warranty

      • A. O. Smith's Mobile Home Water Heaters are specifically made for easy installation in mobile home applications and is designed to maximize your hot water output. This ProLine® water heater is designed with A. O. Smith's superior commercial-grade tank protection. Advanced tank features include stainless steel CoreGard™ anode rod and Blue Diamond® glass lining, all designed to help protect the tank from the corrosive effects of water and extend the life of the water heater. All of these features are accompanied by a 6-year limited tank warranty. A. O. Smith’s ProLine® water heaters are residential products built to commercial-grade standards and are only available for purchase through professional wholesalers and contractors.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    28 Gallons
    Rated Storage Volume
    26 Gallons
    UEF
    0.9
    Power Source
    ELECTRIC
    Limited Tank Warranty
    6 Years
    Limited Parts Warranty
    6 Years
    T&P Relief Valve
    Yes
    Water Connection Location
    SIDE
    Water Connection Size
    0.75"
    Emissions
    Low NOx
    First Hour Rating
    47 Gallons
    ASME Certified
    No
    Blanket Included
    Yes
    Destination Country
    US
    Height to T&P
    22.06
    Installation Type
    INDOOR
    Max Wattage
    3,000
    Mobile Home Compatible
    true
    Number of Elements
    2
    Application
    RESIDENTIAL
    Product Tier
    ProLine®
    Shipping Height
    34.56"
    Shipping Length
    26"
    Shipping Width
    23"
    Side Loop
    No
    Voltage
    120
    Dimension & Venting
    Type
    Water Heater
    Height
    30"
    Diameter
    22 in."
    Width
    22"
    Shipping Weight
    101lbs
