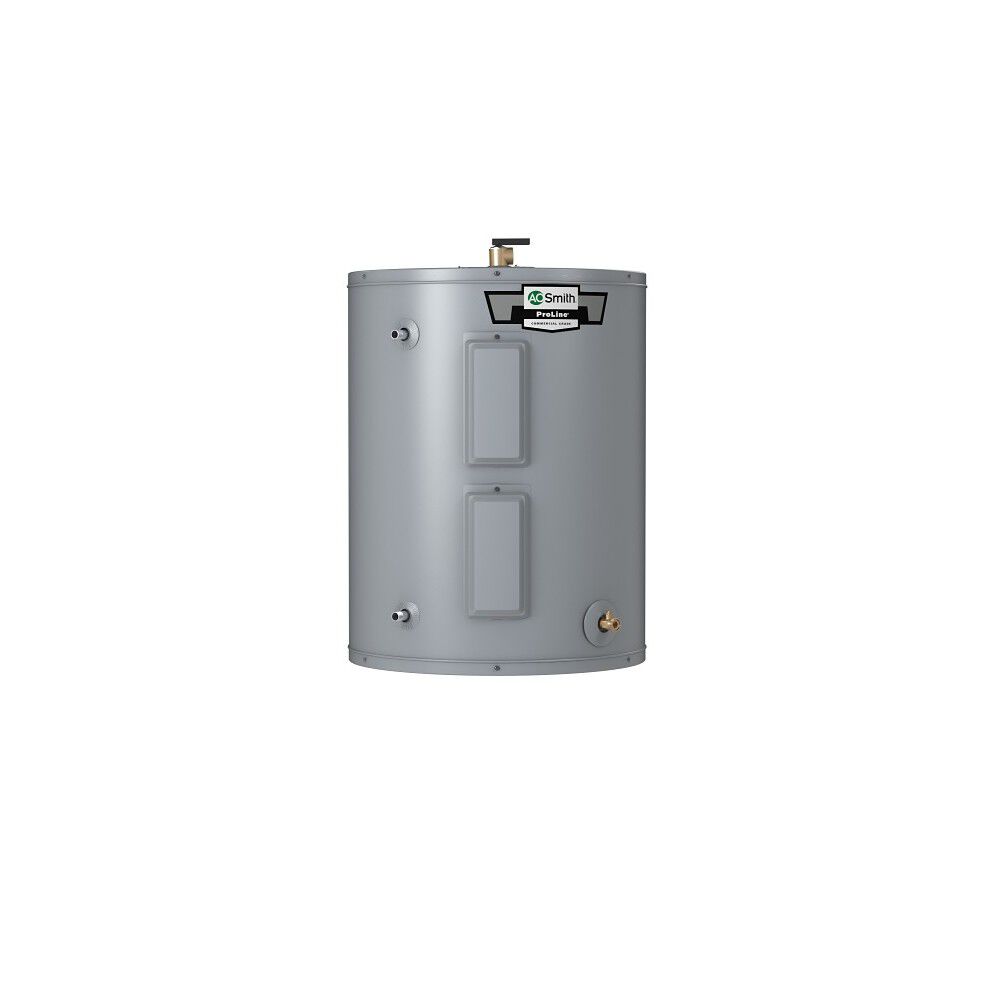

ProLine® 28-Gallon Lowboy Top Connect Electric Water Heater

Model ENL-30
Capacity (Gallons)
First Hour Rating
Blanket
Limited Tank Warranty

  • Delivers 44-gallon first hour rating
  • Dual 4,500-watt commercial-grade heating elements deliver reliable and efficient hot water
  • Long-lasting lower Incoloy™ stainless steel element
  • Product Details
    • Delivers 44-gallon first hour rating
    • Dual 4,500-watt commercial-grade heating elements deliver reliable and efficient hot water
    • Long-lasting lower Incoloy™ stainless steel element
    • Lowboy design with top connections ideal for spaces with low height clearance
    • Patented Blue Diamond® glass tank lining protects against corrosion
    • DynaClean™ automatic cleaning system protects against sediment build-up
    • Stainless steel Coregard™ anode rod protects against corrosion longer than ordinary anodes
    • Commercial-grade brass drain valve for durable and easy operation
    • CSA Certified and ASME Rated T&P Relief Valve, Factory-Installed
    • 6-year limited tank and parts warranty

    • The ProLine® Lowboy Electric water heater with Top Water Connections is the reliable choice when you want to maximize hot water output and energy savings. With a 30-gallon (nominal) tank and dual 4,500 watt elements, the ENL-30 delivers a first hour rating of 44 gallons at a highly efficient 0.90 Uniform Energy Factor rating. Environmentally-friendly insulation and factory-installed heat trap nipples reduce heat loss for maximum energy savings. This ProLine® water heater is designed with A. O. Smith's superior commercial-grade tank protection. Advanced tank features include stainless steel Coregard™ anode rod, Blue Diamond® glass lining and DynaClean™ automatic sediment-cleaning system, all designed to help protect the tank from the corrosive effects of water and extend the life of the water heater. All of these features are accompanied by a 6-year limited tank warranty. A. O. Smith’s ProLine® water heaters are residential products built to commercial-grade standard and are only available for purchase through professional wholesalers and contractors.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    28 Gallons
    Rated Storage Volume
    25.6 Gallons
    UEF
    0.9
    Power Source
    ELECTRIC
    Limited Tank Warranty
    6 Years
    Limited Parts Warranty
    6 Years
    Water Connection Location
    TOP
    Water Connection Size
    0.75"
    First Hour Rating
    44 Gallons
    ASME Certified
    No
    Blanket Included
    No
    Destination Country
    US
    Installation Type
    INDOOR
    Max Wattage
    4,500
    Number of Elements
    2
    Shipping Height
    33.69
    Shipping Length
    28.25
    Shipping Width
    25.13
    Side Loop
    No
    Voltage
    240
    Dimension & Venting
    Height
    31.25"
    Diameter
    24 in."
    Shipping Weight
    115lbs
    Maintenance & Troubleshooting
    Maintenance

    ProLine® Electric Adjusting the Thermostat

    ProLine® Electric Application and Installation

    ProLine® Electric Checking and Replacing Lower Heating Element.

    ProLine® Electric Checking and Replacing Upper Heating Element.

    ProLine® Electric Not Enough Hot Water

    ProLine® Electric Replacing the Lower Thermostat

    ProLine® Electric Replacing the Upper Thermostat

    Troubleshooting

    ProLine® Electric Tripped ECO

    ProLine® No Hot Water

    Marketing Videos
    ProLine® Electric Features and Benefits
    ProLine® Electric How It Works
