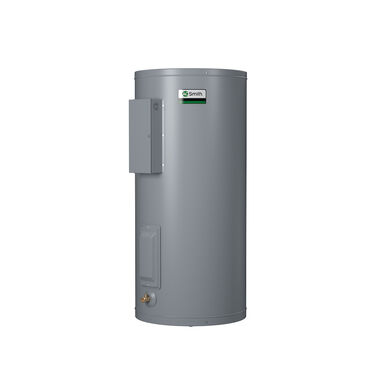

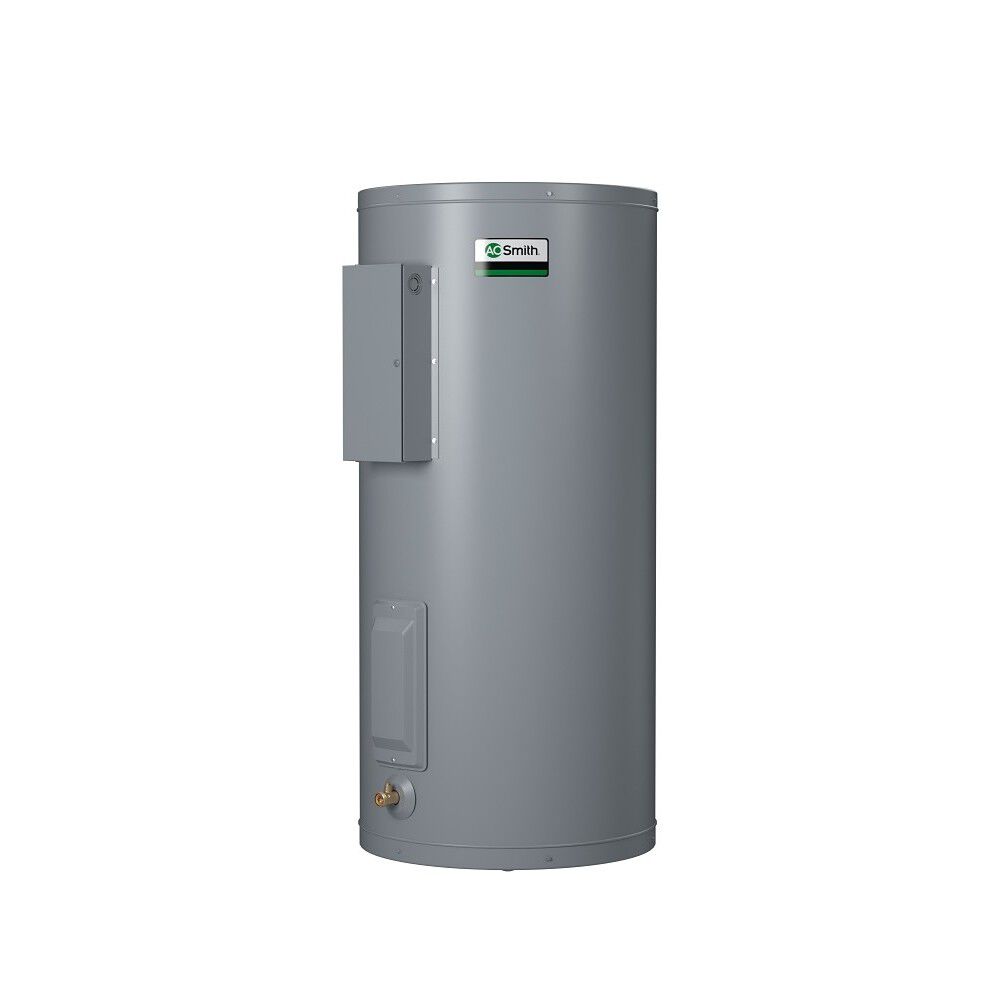

Dura-Power™ 40-Gallon Light Duty Standard Upright Commercial Electric Water Heater

Model DEN-30
Capacity (Gallons)
Height Classification
Advanced Options
Max Wattage
Voltage
  • Designed for use as a recovery water heater
  • Glass lining provides super protection against corrosion
  • Durable commercial-grade copper heating elements
Product Details
  • Designed for use as a recovery water heater
  • Glass lining provides super protection against corrosion
  • Durable commercial-grade copper heating elements
  • Factory installed terminal block for ease of installation
  • Temperature controls located behind hinged control compartment door for quick, easy access.
  • Meets ASHRAE/IES 90.1-2013
  • Commercial-grade anode rod provides maximum tank protection from corrosion
  • Most models convert to three-phase or single-phase in field for easy installation
  • 3-year limited tank and 1-year limited parts warranty

  • Dura-Power™ light duty commercial electric water heaters are built to the same high quality standards as our gas models. The Dura-Power™ DEN (standard upright) and DEL (lowboy) series is available with tank capacities from 6 through 119-gallons. They can be installed for non-simultaneous and single element operation (maximum input up to 6 KW), or for simultaneous dual-element operation (maximum input up to 12 KW). A. O. Smith offers the largest commercial product selection available, including the most specified commercial unit in the U.S. We offer more than 500 different commercial models, including gas fired, oil-fired and electric configurations, ranging in capacities from 5 to 10,000 gallons, with input range from 50,000 BTU to the equivalent of 4,000,000 BTU. Our comprehensive line is the natural fit for spec jobs requiring everything from the smallest commercial installation up to the largest multi-structure complex.

Specifications
Tech Specs
Nominal Gallon Capacity
40 Gallons
Rated Storage Volume
37 Gallons
UEF
0.92
Power Source
ELECTRIC
Limited Tank Warranty
3 Years
Limited Parts Warranty
1 Years
Water Connection Location
TOP
First Hour Rating
55 Gallons
ASME Certified
No
Destination Country
US
Installation Type
INDOOR
Max Wattage
4,500
Application
COMMERCIAL
Shipping Height
53.5
Shipping Length
21.13
Shipping Width
23.88
Side Loop
No
Voltage
208
Dimension & Venting
Type
Water Heater
Diameter
20.5 in."
Shipping Weight
133lbs
