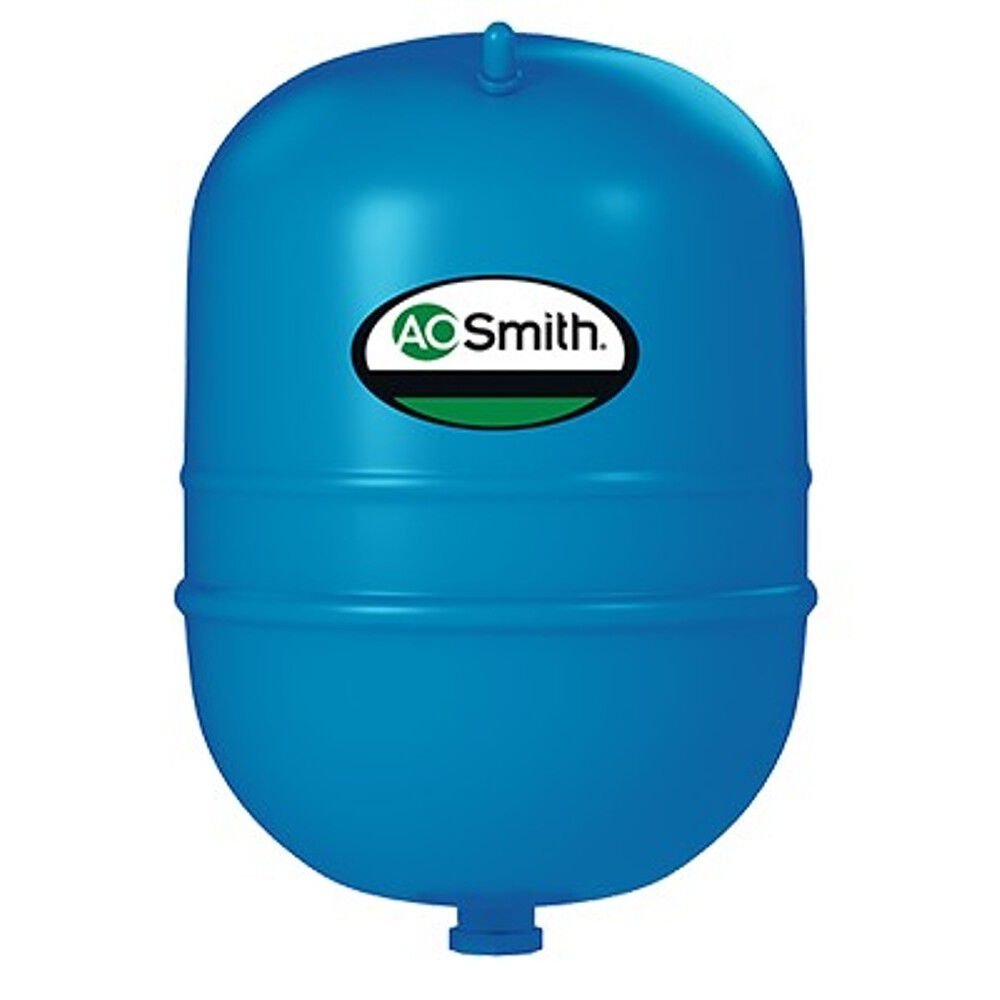

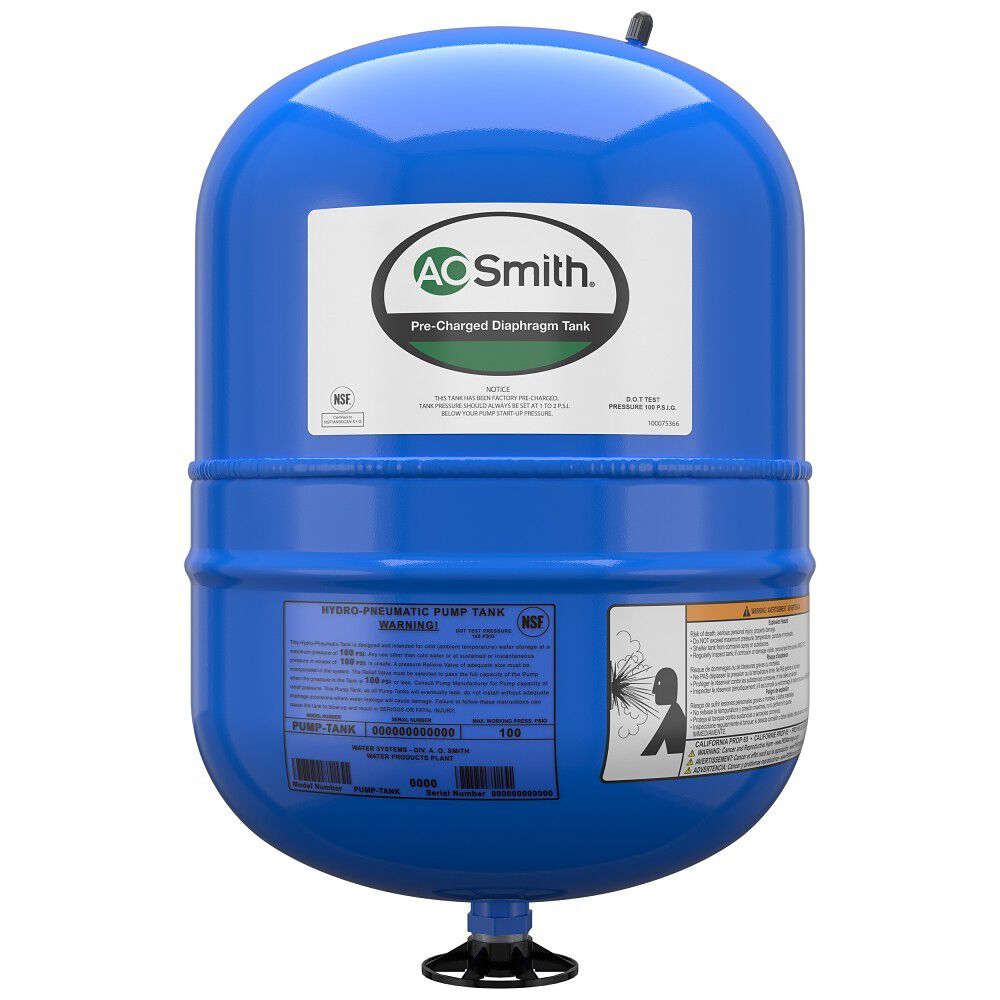

5-Gallon In-line Diaphragm Pump Tank

Model PMI-5
Capacity (Gallons)
  • Multiple head construction adds structural strength and more capacity within the same diameters
  • Interior powder coating is permanently bonded to the tank shell for ultimate protection on the water side of the tank
  • Heavy duty butyl rubber diaphragm ensures long life
Product Details
  • Multiple head construction adds structural strength and more capacity within the same diameters
  • Interior powder coating is permanently bonded to the tank shell for ultimate protection on the water side of the tank
  • Heavy duty butyl rubber diaphragm ensures long life
  • Positive lock retention system controls compression in the diaphragm connection, eliminating air loss or water leaks in pump tanks
  • Electrostatically applied powder-coated exterior for maximum sunlight (UV) resistance with zinc phosphate undercoat for highest corrosion resistance
  • Corrosion-resistant metal air valve
  • 5-year limited warranty

  • A. O. Smith PM Series Pump tanks include Inline, Free-Standing and Horizontal orientations. Multiple head construction adds structural strength and more capacity within the same diameters.

Specifications
Tech Specs
Nominal Gallon Capacity
5 Gallons
Rated Storage Volume
4.6 Gallons
Power Source
DIAPHRAGM
Limited Tank Warranty
5 Years
Limited Parts Warranty
0 Years
Water Connection Location
BOTTOM
Water Connection Size
3/4-in"
ASME Certified
No
Destination Country
US
Installation Type
BOTH
Application
PT
Shipping Height
17.25
Shipping Length
11.5
Shipping Width
11.5
Side Loop
No
Dimension & Venting
Type
Pump Tank
Height
17.25"
Width
11.5"
Shipping Weight
8lbs
