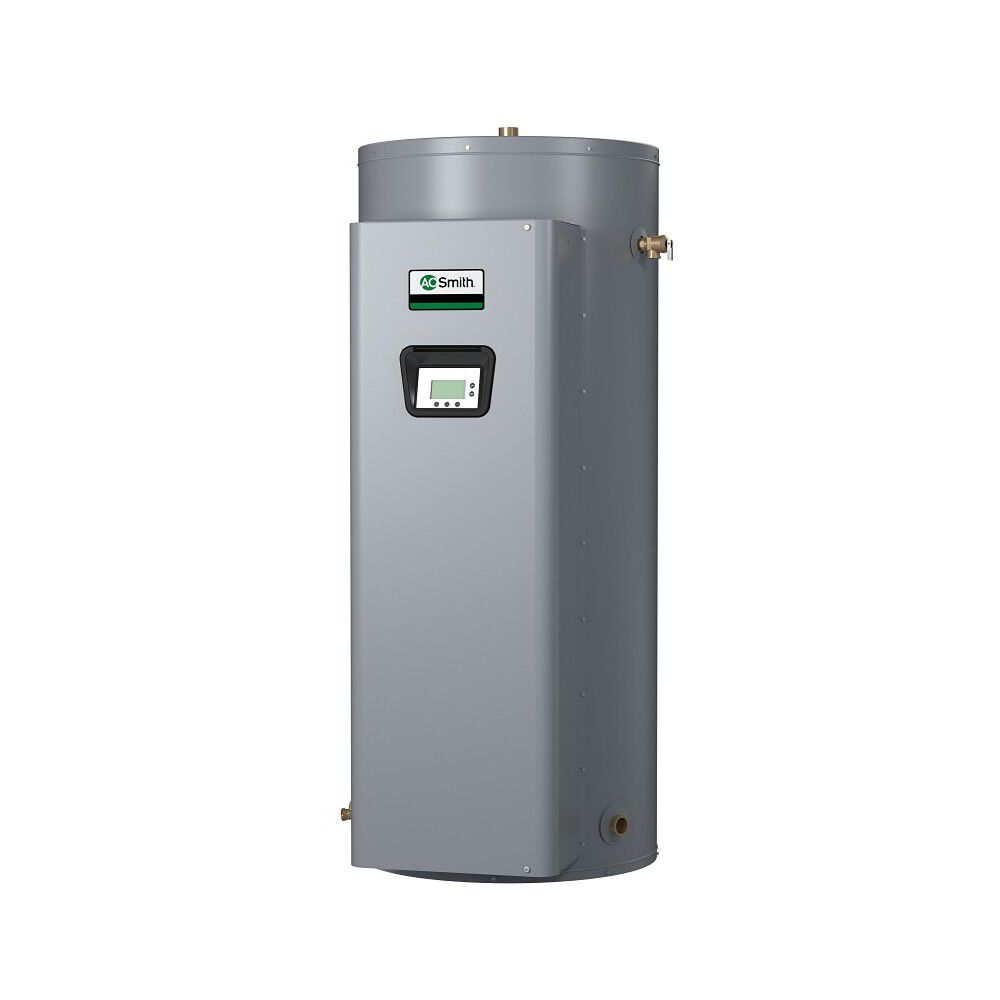

Gold Xi Series 50-Gallon Commercial Electric Water Heater

Model DVE-52
Capacity (Gallons)
ASME Indicator
  • Designed for use as a recovery water heater
  • Meets ASHRAE/IES 90.1-2004
  • Heavy-duty incoloy sheathing elements provide excellent protection against oxidation and scaling
Product Details
  • Designed for use as a recovery water heater
  • Meets ASHRAE/IES 90.1-2004
  • Heavy-duty incoloy sheathing elements provide excellent protection against oxidation and scaling
  • Power Circuit fusing
  • Factory installed terminal block for ease of installation
  • Advanced electronic control for ease of operations and diagnostics
  • Dual commercial-grade anode rods for maximum corrosion protection
  • Simplified circuitry, color coded for ease of service
  • 3-year limited tank and 1-year limited parts warranty

  • Gold Xi DVE displays detailed operational and diagnostic information. Fault or alert messages appear if an operational issue occurs. Last 9 fault and alert messages saved with time stamp. Control system automatically lowers the operating set point by a programmed value during user-defined time periods. Helps reduce operating costs during unoccupied or low demand periods. They can be used as recovery water heaters for hot water supply service or as boosters for supplying sanitizing rinse water for dish washing. A. O. Smith offers the largest commercial product selection available, including the most specified commercial unit in the U.S. We offer more than 500 different commercial models, including gas fired, oil-fired and electric configurations, ranging in capacities from 5 to 10,000 gallons, with input range from 50,000 BTU to the equivalent of 4,000,000 BTU. Our comprehensive line is the natural fit for spec jobs requiring everything from the smallest commercial installation up to the largest multi-structure complex.

Specifications
Tech Specs
Nominal Gallon Capacity
50 Gallons
Rated Storage Volume
46 Gallons
Thermal Efficiency
98%
Power Source
ELECTRIC
Limited Tank Warranty
3 Years
Limited Parts Warranty
1 Years
T&P Relief Valve
TRUE
Water Connection Size
0.75"
ASME Certified
No
Blanket Included
No
Destination Country
US
Height to T&P
47.96
Max Wattage
18,000
Number of Elements
6
Application
COMMERCIAL
Shipping Height
65.25
Shipping Length
34.25
Shipping Width
28.25
Side Loop
No
Voltage
208
Dimension & Venting
Type
Water Heater
Height
55.75"
Diameter
21.75 in."
Width
21.75"
Shipping Weight
242lbs
