Product Details
- Multiple head construction adds structural strength and more capacity within the same diameters
- Interior powder coating is permanently bonded to the tank shell for ultimate protection on the water side of the tank
- Heavy duty butyl rubber diaphragm ensures long life
- Positive lock retention system controls compression in the diaphragm connection, eliminating air loss or water leaks in pump tanks
- Electrostatically applied powder-coated exterior for maximum sunlight (UV) resistance with zinc phosphate undercoat for highest corrosion resistance
- Corrosion-resistant metal air valve
- 5-year limited warranty
- Tank stand and pump mount kit included with horizontal tanks

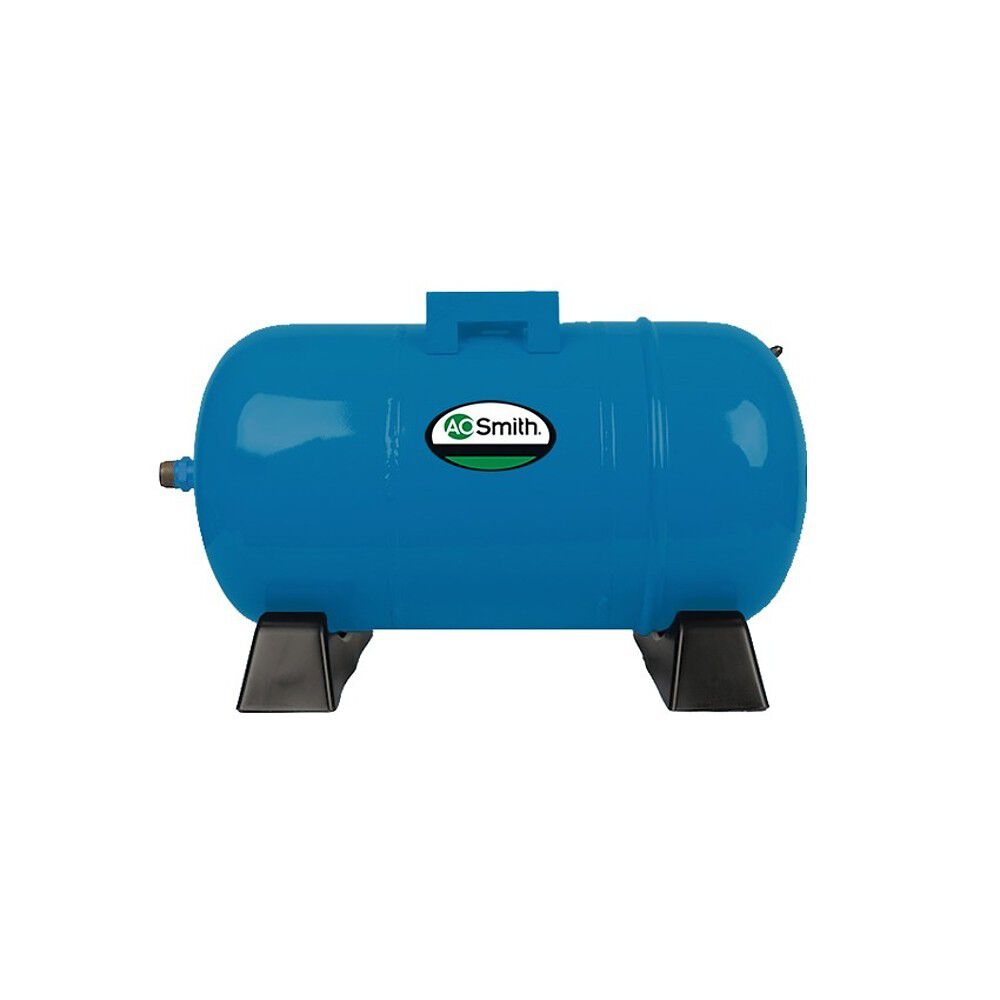

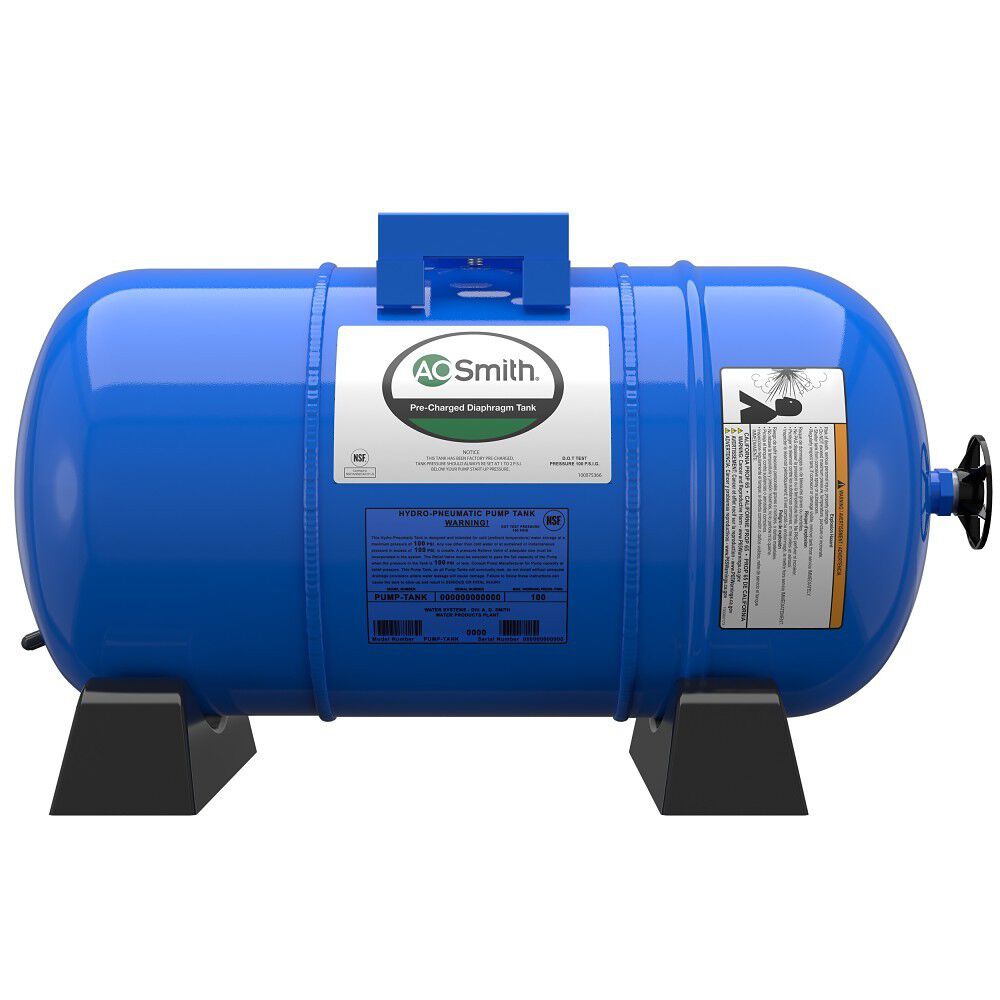

A. O. Smith PM Series Pump tanks include Inline, Free-Standing and Horizontal orientations. Multiple head construction adds structural strength and more capacity within the same diameters.
Specifications
Tech Specs
Nominal Gallon Capacity
7 Gallons
Rated Storage Volume
7.3 Gallons
Power Source
DIAPHRAGM
Limited Tank Warranty
5 Years
Limited Parts Warranty
0 Years
Water Connection Location
SIDE
Water Connection Size
3/4-in"
ASME Certified
No
Destination Country
US
Installation Type
BOTH
Application
PT
Shipping Height
24.25
Shipping Length
11.25
Shipping Width
12.25
Side Loop
No
Dimension & Venting
Type
Pump Tank
Height
24.25"
Width
12.25"
Shipping Weight
16lbs
