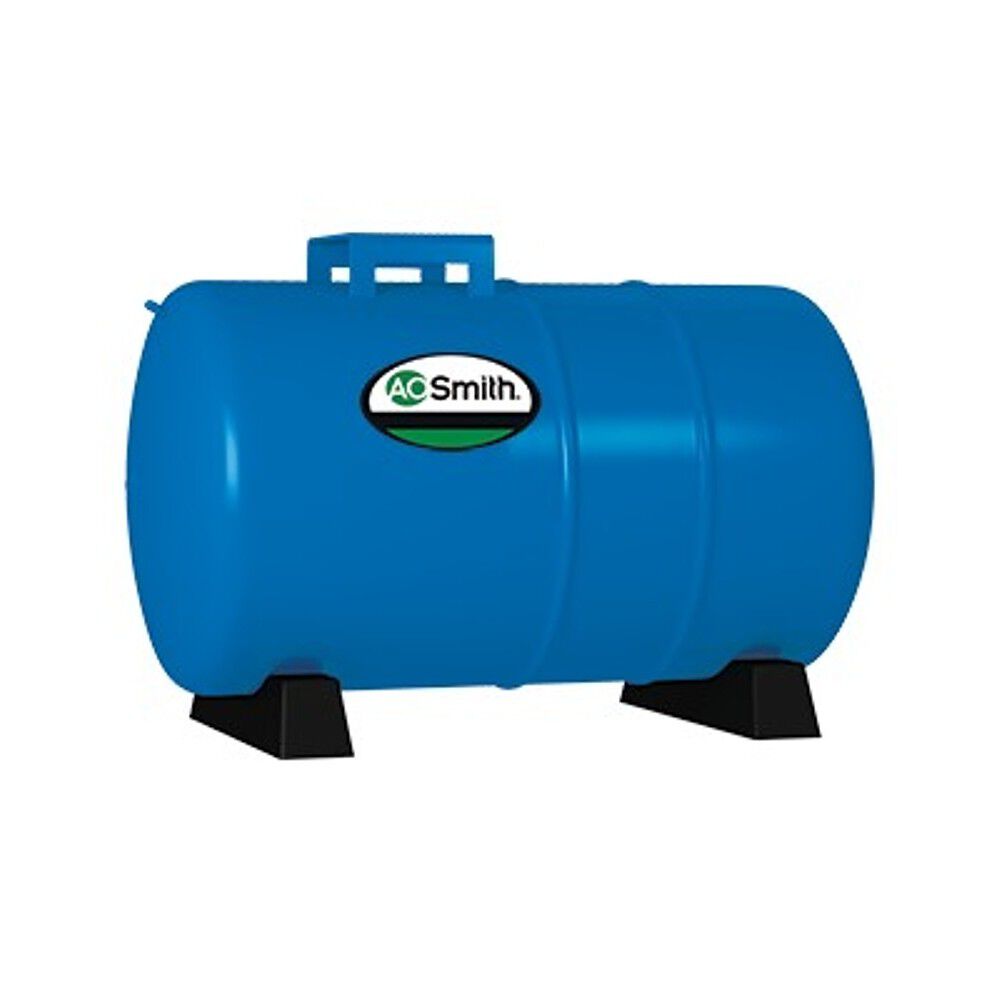

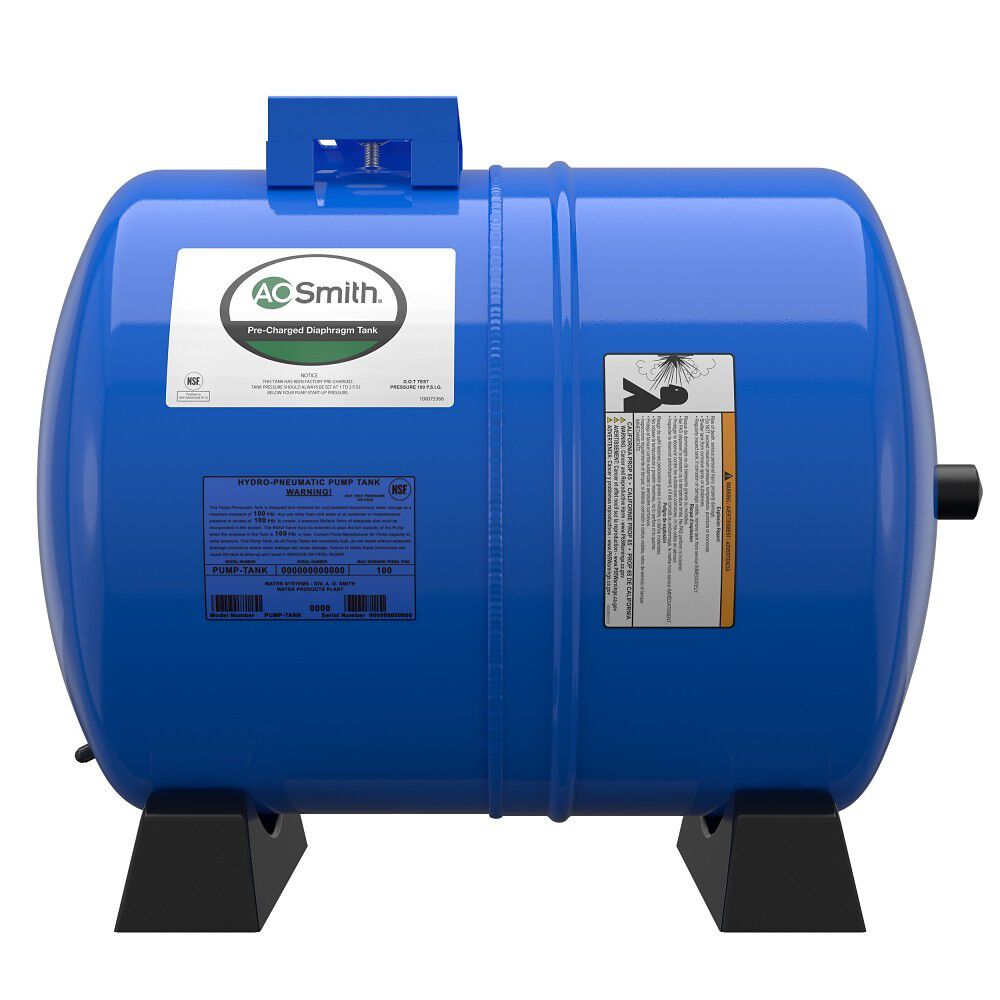

14-Gallon Horizontal Diaphragm Pump Tank

Model PMH-14
Capacity (Gallons)

  • Multiple head construction adds structural strength and more capacity within the same diameters
  • Interior powder coating is permanently bonded to the tank shell for ultimate protection on the water side of the tank
  • Heavy duty butyl rubber diaphragm ensures long life
  • Product Details
    • Multiple head construction adds structural strength and more capacity within the same diameters
    • Interior powder coating is permanently bonded to the tank shell for ultimate protection on the water side of the tank
    • Heavy duty butyl rubber diaphragm ensures long life
    • Positive lock retention system controls compression in the diaphragm connection, eliminating air loss or water leaks in pump tanks
    • Electrostatically applied powder-coated exterior for maximum sunlight (UV) resistance with zinc phosphate undercoat for highest corrosion resistance
    • Corrosion-resistant metal air valve
    • 5-year limited warranty
    • Tank stand and pump mount kit included with horizontal tanks

    • A. O. Smith PM Series Pump tanks include Inline, Free-Standing and Horizontal orientations. Multiple head construction adds structural strength and more capacity within the same diameters.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    14 Gallons
    Rated Storage Volume
    13.9 Gallons
    Power Source
    DIAPHRAGM
    Limited Tank Warranty
    5 Years
    Limited Parts Warranty
    0 Years
    Water Connection Location
    SIDE
    Water Connection Size
    1"
    ASME Certified
    No
    Destination Country
    US
    Installation Type
    BOTH
    Application
    PT
    Shipping Height
    26"
    Shipping Length
    16"
    Shipping Width
    16"
    Side Loop
    No
    Dimension & Venting
    Type
    Pump Tank
    Height
    26"
    Width
    16"
    Shipping Weight
    22.625lbs
