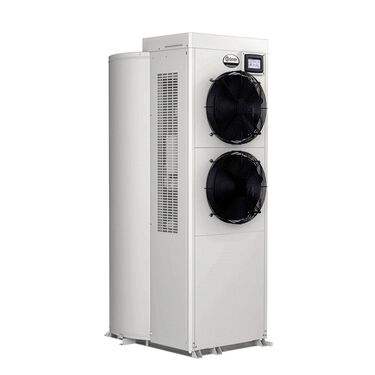

120-Gallon Fully Integrated Commercial Heat Pump Water Heater

Model CAHP-120 100
Capacity (Gallons)

  • ENERGY STAR® Certified with an industry-leading 4.3 COP
  • Delivers up to 90 GPH at 100°F Rise in hybrid mode (3 modes available)
  • Integrated heat pump technology transfers heat from surrounding area into the tank, increasing energy savings
  • Product Details
    • ENERGY STAR® Certified with an industry-leading 4.3 COP
    • Delivers up to 90 GPH at 100°F Rise in hybrid mode (3 modes available)
    • Integrated heat pump technology transfers heat from surrounding area into the tank, increasing energy savings
    • Three operating modes (Efficiency, Hybrid, and Electric) maximize efficiency while meeting specific hot water demands
    • Dual 6 kW heating elements provide additional heating capability for periods of high demand
    • Max. water temperature of 150° F. in Efficiency and Hybrid modes, and 180° F. in electric mode
    • Large touchscreen LCD display allows for mode selection, provides run information, and includes troubleshooting alerts and detail
    • Integrated design and pre-charged refrigeration system makes for quick and easy install
    • Commercial grade anode and incoloy elements provide durable protection
    • 3-year tank and 1-year parts / compressor limited warranties

    • The CHP-120 is a fully integrated heat pump system designed specifically for commercial use. This water heating solution utilizes industry-leading heat pump technology to provide a more efficient way to heat water with electricity. By pulling heat from the surrounding air and transferring it into the tank, the heat pump also produces cooler, dehumidified air as a welcome by-product. Most importantly, by moving heat rather than generating it the CHP-120 operates at an industry-leading 4.3 coefficient of performance (COP). It also has 119 gallons of storage capacity to maximize performance and energy savings. These two qualities make the CHP-120 a low greenhouse gas emission, sustainable water heating solution and an integral part of any all-electric site design. The CHP-120 may qualify for local utility rebates or credits where available. This fully integrated commercial heat pump water heater is backed by 3-year tank and 1-year parts/compressor limited warranties. The CHP-120 is perfect for light commercial applications such as quick-serve restaurants, schools, retail buildings, and any other commercial application that would typically use a traditional 120-gallon commercial electric water heater. For larger applications, multiple CHP-120 water heaters can be combined and used together. A. O. Smith offers the largest commercial product selection available, including the most specified commercial unit in the U.S. We offer more than 500 different commercial models, including gas fired, oil-fired and electric configurations, ranging in capacities from 5 to 10,000 gallons, with input range from 50,000 BTU to the equivalent of 4,000,000 BTU. Our comprehensive line is the natural fit for spec jobs requiring everything from the smallest commercial installation up to the largest multi-structure complex.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    119 Gallons
    Rated Storage Volume
    111.7 Gallons
    Power Source
    HEAT PUMP
    Limited Tank Warranty
    3 Years
    Limited Parts Warranty
    1 Years
    T&P Relief Valve
    Yes
    Water Connection Location
    SIDE
    ASME Certified
    No
    Amperes
    71
    Destination Country
    US
    Digital Display
    true
    ENERGY STAR® Certified
    true
    Installation Type
    INDOOR
    Max Wattage
    6,000
    Number of Elements
    2
    Application
    COMMERCIAL
    Shipping Height
    76"
    Shipping Length
    44"
    Shipping Width
    35.25"
    Side Loop
    No
    Voltage
    208 - 240
    Dimension & Venting
    Type
    Water Heater
    Height
    69.688"
    Diameter
    28 in."
    Shipping Weight
    620lbs
