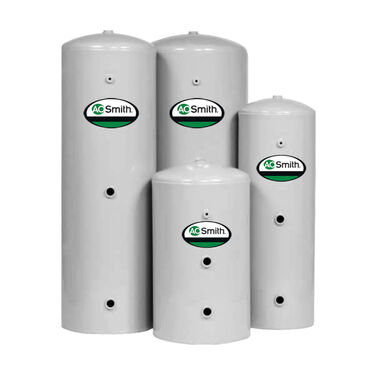

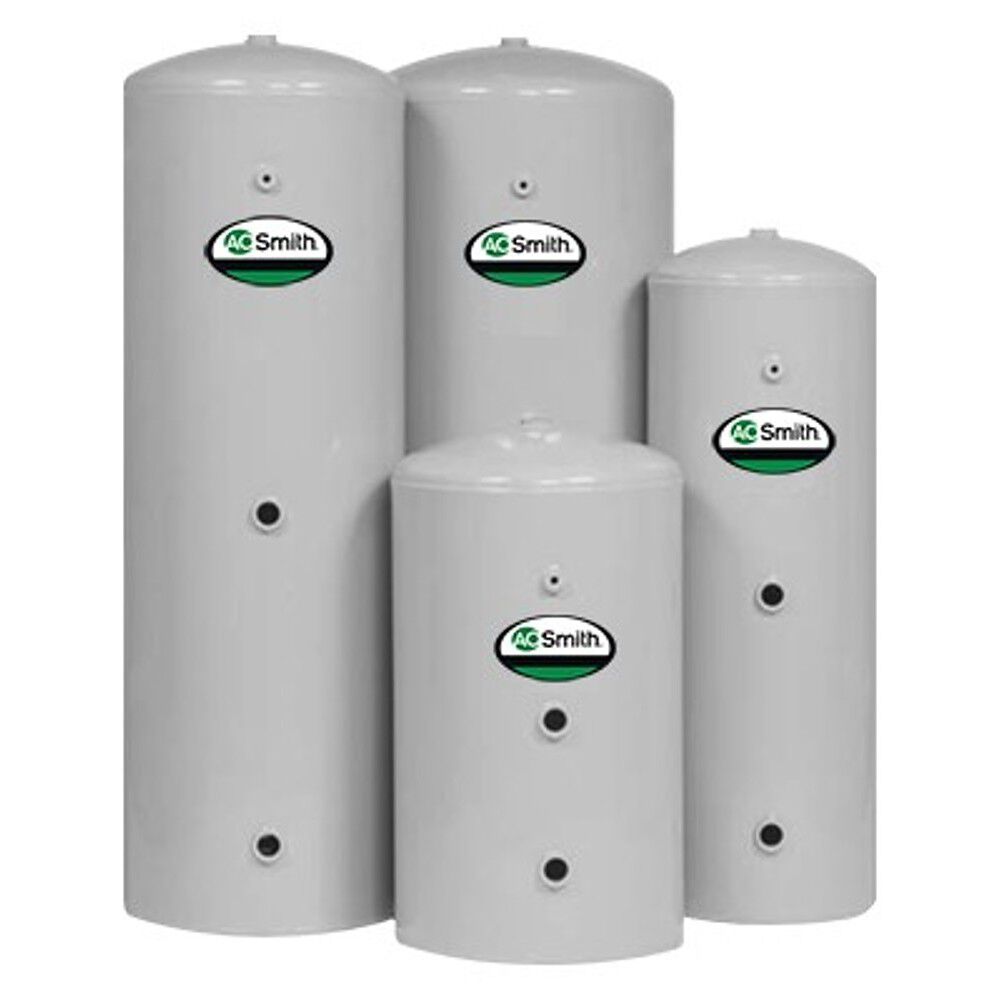

42-Gallon Glasslined Hydropneumatic Pump Tank

Model SGS 42 1
Capacity (Gallons)
Height Classification

  • Rolled steel construction provides added structural strength and more capacity within the same diameters
  • Fused glasslining, the industry’s most time-tested system for protection of tanks
  • Maximum working pressure 125 PSIG
  • Product Details
    • Rolled steel construction provides added structural strength and more capacity within the same diameters
    • Fused glasslining, the industry’s most time-tested system for protection of tanks
    • Maximum working pressure 125 PSIG
    • 1-1/4" NPT spud on top for motor mount or retention tank connections
    • 1/4" switch or gauge tapping on the air side of the tank
    • Full-size 1-1/4" connections at all needed locations
    • Electrostatically applied powder-coated exterior for maximum sunlight (UV) resistance
    • 3-Year Limited Warranty

    • “Glasslining,” a porcelain protective coating to a steel tank interior, is the plumbing industry’s most time-tested system for protection of tanks. A. O. Smith Glasslined Hydropneumatic Pump Tanks feature rolled-steel construction, and every A. O. Smith Tank is made in the U.S.A. Other A. O. Smith features include a 1-1/4" NPT spud on top for motor mount or retention tank connections, a 1/4" switch or gauge tapping on the air side of the tank, and full-size 1-1/4" connections at all needed locations.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    42 Gallons
    Rated Storage Volume
    42 Gallons
    Power Source
    ATMOSPHERIC
    Limited Tank Warranty
    3 Years
    Limited Parts Warranty
    0 Years
    Water Connection Location
    SIDE
    Water Connection Size
    1.25"
    ASME Certified
    No
    Destination Country
    US
    Installation Type
    BOTH
    Application
    PT
    Shipping Height
    37
    Shipping Length
    20.75
    Shipping Width
    20.75
    Side Loop
    No
    Dimension & Venting
    Type
    Pump Tank
    Height
    37"
    Width
    20.75"
    Shipping Weight
    71.495lbs
    Product Literature
    Technical Literature
