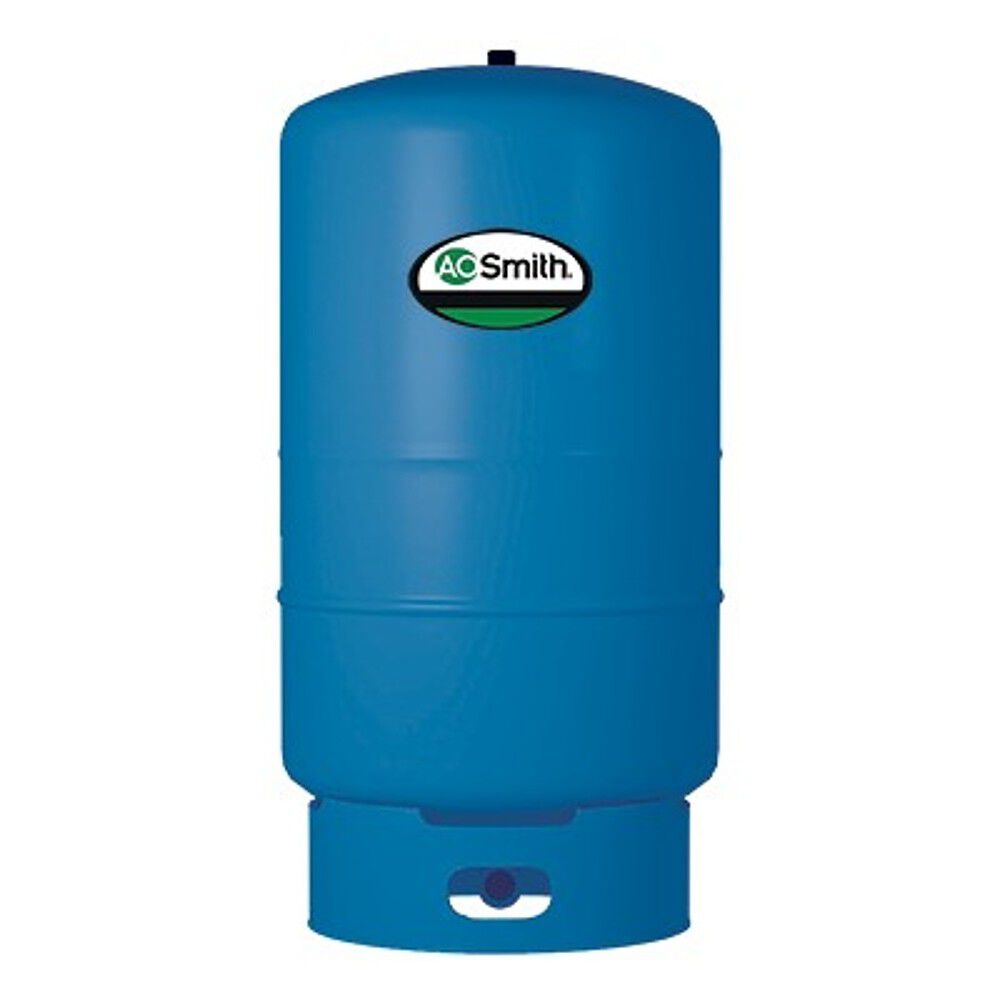

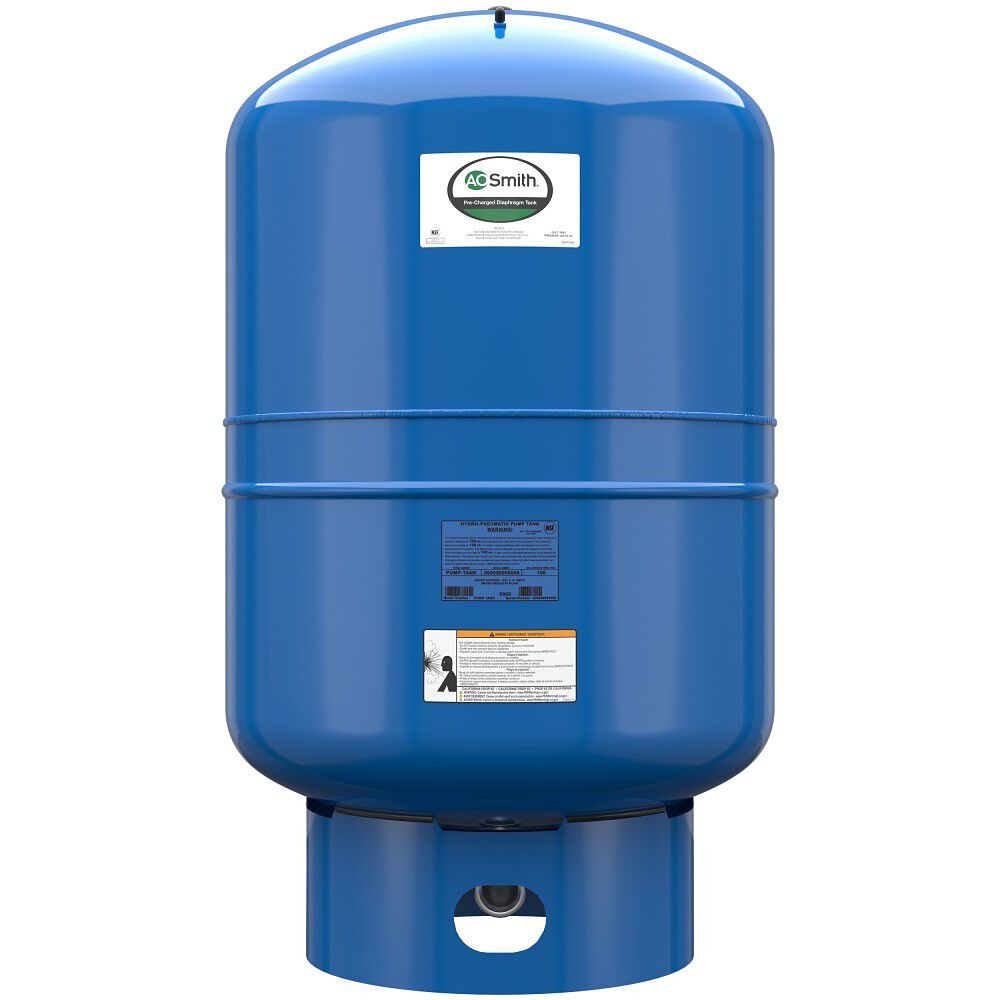

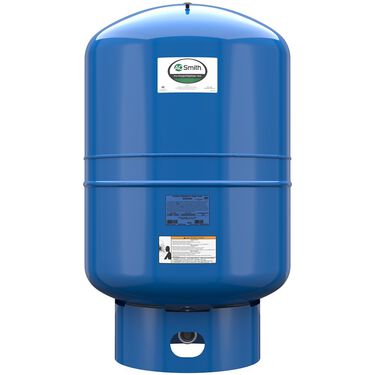

45-Gallon Free-Standing Diaphragm Pump Tank

Model PM-45
Capacity (Gallons)

  • Multiple head construction adds structural strength and more capacity within the same diameters
  • Interior powder coating is permanently bonded to the tank shell for ultimate protection on the water side of the tank
  • Heavy duty butyl rubber diaphragm ensures long life
  • Product Details
    • Multiple head construction adds structural strength and more capacity within the same diameters
    • Interior powder coating is permanently bonded to the tank shell for ultimate protection on the water side of the tank
    • Heavy duty butyl rubber diaphragm ensures long life
    • Positive lock retention system controls compression in the diaphragm connection, eliminating air loss or water leaks in pump tanks
    • Electrostatically applied powder-coated exterior for maximum sunlight (UV) resistance with zinc phosphate undercoat for highest corrosion resistance
    • Corrosion-resistant metal air valve
    • Exclusive no-weld Rust-Guard® steel base design
    • 5-year limited warranty

    • A. O. Smith PM Series Pump tanks include Inline, Free-Standing and Horizontal orientations. Multiple head construction adds structural strength and more capacity within the same diameters.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    45 Gallons
    Rated Storage Volume
    45.2 Gallons
    Power Source
    DIAPHRAGM
    Limited Tank Warranty
    5 Years
    Limited Parts Warranty
    0 Years
    Water Connection Location
    BOTTOM
    Water Connection Size
    1.25"
    ASME Certified
    No
    Destination Country
    US
    Installation Type
    BOTH
    Application
    COMMERCIAL
    Shipping Height
    36"
    Shipping Length
    23"
    Shipping Width
    23"
    Side Loop
    No
    Dimension & Venting
    Type
    Pump Tank
    Height
    36"
    Width
    23"
    Shipping Weight
    64lbs
