Product Details
- Multiple head construction adds structural strength and more capacity within the same diameters
- Interior powder coating is permanently bonded to the tank shell for ultimate protection on the water side of the tank
- Heavy duty butyl rubber diaphragm ensures long life
- Positive lock retention system controls compression in the diaphragm connection, eliminating air loss or water leaks in pump tanks
- Electrostatically applied powder-coated exterior for maximum sunlight (UV) resistance with zinc phosphate undercoat for highest corrosion resistance
- Corrosion-resistant metal air valve
- Exclusive no-weld Rust-Guard® steel base design
- 5-year limited warranty

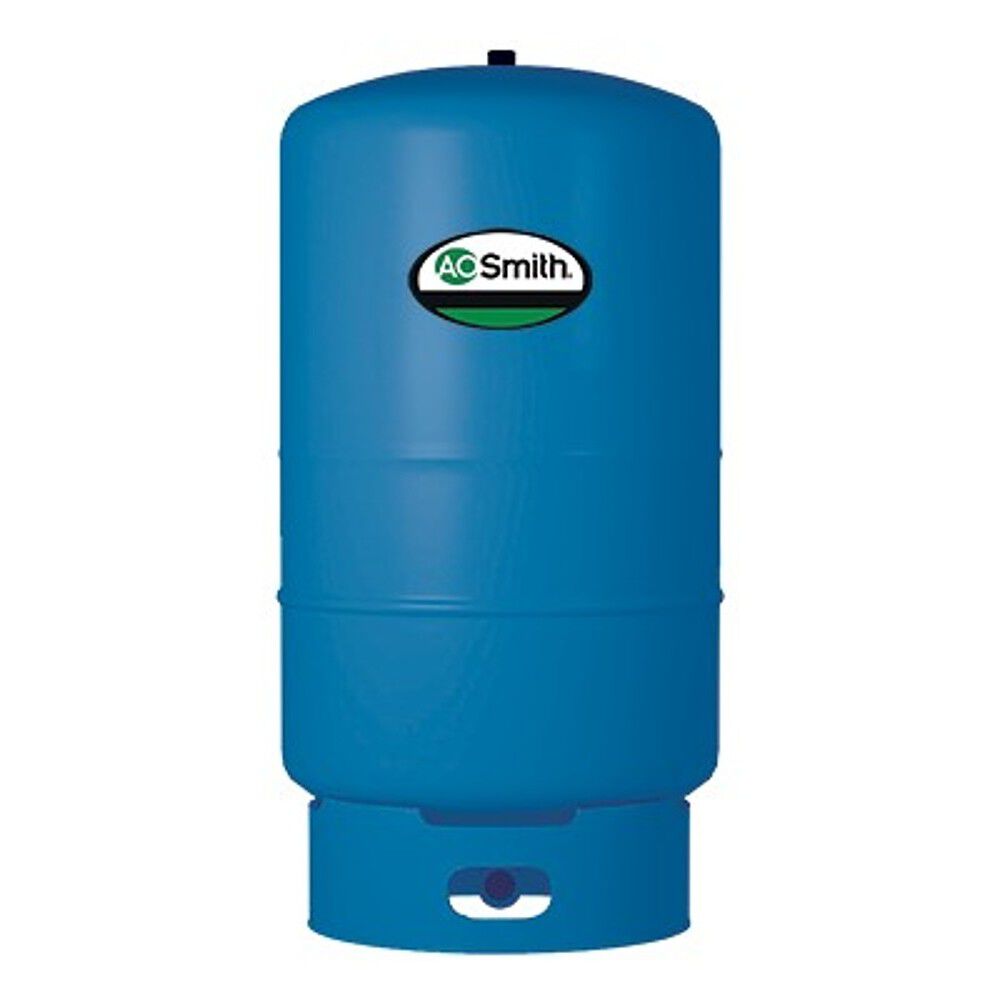

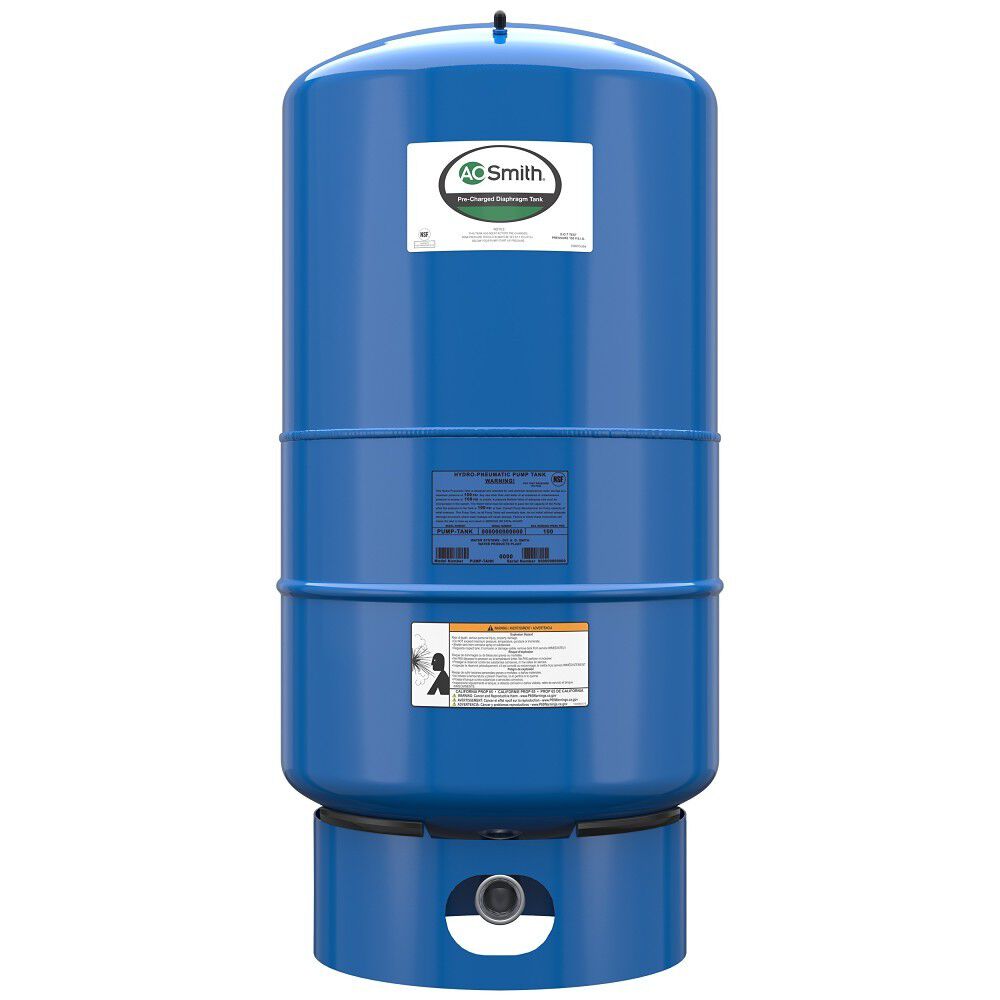

A. O. Smith PM Series diaphragm pump tanks include Inline, Free-Standing and Horizontal orientations. Multiple head construction adds structural strength and more capacity within the same diameters.
Specifications
Tech Specs
Nominal Gallon Capacity
20 Gallons
Rated Storage Volume
19.9 Gallons
Power Source
DIAPHRAGM
Limited Tank Warranty
5 Years
Limited Parts Warranty
0 Years
Water Connection Location
BOTTOM
Water Connection Size
1"
ASME Certified
No
Destination Country
US
Installation Type
BOTH
Application
COMMERCIAL
Shipping Height
33
Shipping Length
16
Shipping Width
16
Side Loop
No
Dimension & Venting
Type
Pump Tank
Height
33"
Width
15"
Shipping Weight
34lbs
