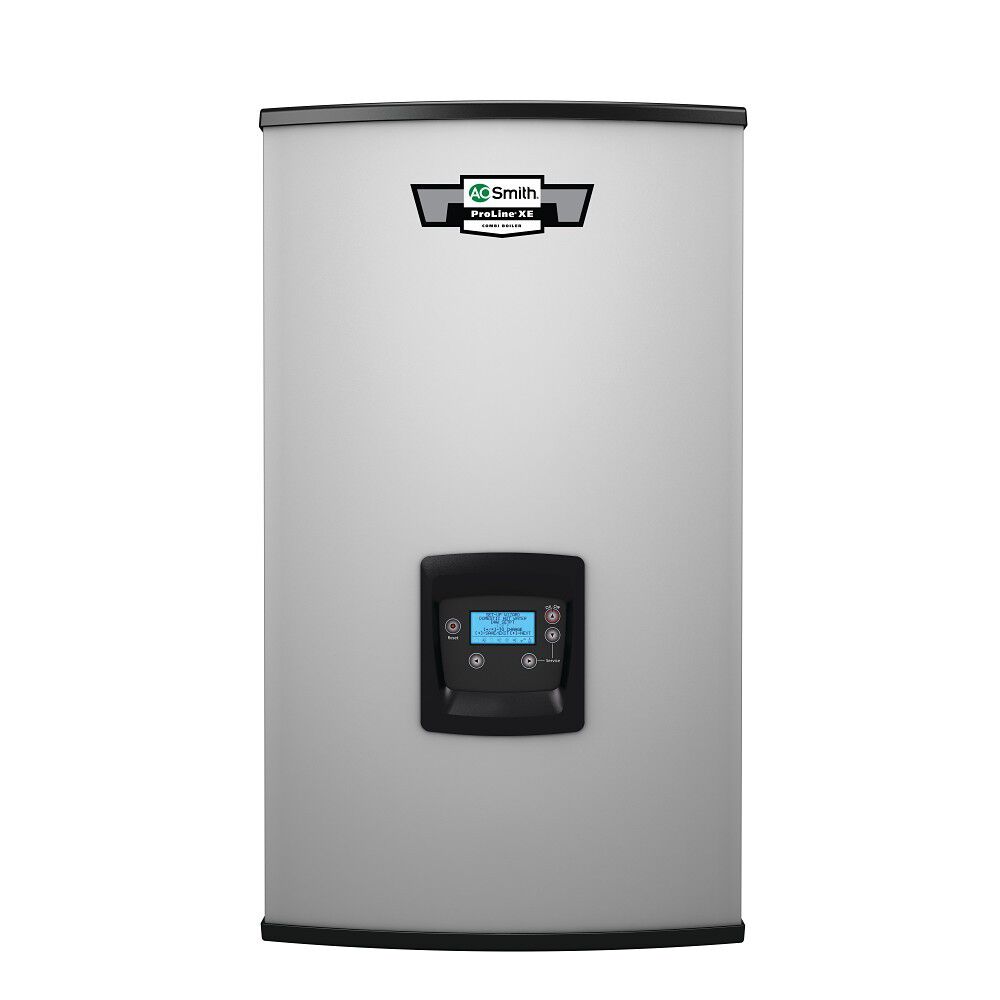

ProLine® XE High Efficiency Ultra-Low NOx Liquid Propane Combi Boiler

Model ACB-110S-P 101
5 out of 5 Customer Rating
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getAggregateRating, 25ms
  • reviews, product
  • bvseo-msg: Unsuccessful GET. status = 'ERROR', msg = 'Not Found.';
Fuel Source
Maximum Altitude
Maximum BTU's

  • Industry-leading domestic hot water delivery up to 2.6 GPM @ 77°F rise
  • Innovative fire tube design produces a higher heat transfer coefficient than traditional fire tubes
  • Modulating burner with 10:1 turndown
  • Product Details
    • Industry-leading domestic hot water delivery up to 2.6 GPM @ 77°F rise
    • Innovative fire tube design produces a higher heat transfer coefficient than traditional fire tubes
    • Modulating burner with 10:1 turndown
    • Easy set up and diagnostics with user-friendly touchscreen display
    • Flexible power vent design allows for venting up to 100 feet using either PVC (solid core), CPVC, polypropylene or stainless steel
    • Great for space heating & domestic water heating
    • 10-year limited heat exchanger warranty in residential applications, 5-year limited parts warranty

    • The ProLine® XE Combi Boiler provides high efficiency space heating and domestic hot water (DHW) in a compact footprint that is easy to install and maintain. The ACB-110S-P indoor residential Ultra-Low NOx Combi Boiler uses up to 110,000 BTU/hr of Liquid Propane to deliver a continuous supply of hot water and space heating for homes in regular or low altitude regions. This model is rated at 95% AFUE (Annual Fuel Utilization Efficiency) and is ENERGY STAR® certified, making it eligible for many local utility rebate programs. Its power direct vent design can be vented up to 100 feet using either PVC, CPVC, polypropylene or AL29-4C stainless steel vent pipe, allowing for flexible and easy installation. The user-friendly LCD display provides system status and diagnostic information for easy set up and maintenance. All of these features come with a 10-year limited heat exchanger warranty and 5-year limited parts warranty. A. O. Smith’s ProLine® water heaters are residential products built to commercial-grade standards and are only available for purchase through professional wholesalers and contractors.

    Specifications
    Tech Specs
    Maximum BTUs
    110,000
    Power Source
    GAS
    Limited Parts Warranty
    5 Years
    Water Connection Location
    BOTTOM
    ASME Certified
    Yes
    ASME Stamp
    H
    Destination Country
    US
    ENERGY STAR® Certified
    true
    Flue Diameter
    3.00
    Fuel Source
    PROPANE
    Installation Type
    INDOOR
    Limited Heat Exchanger Warranty
    10 Years
    Minimum BTUs
    11,000.00
    Application
    RESIDENTIAL
    Product Tier
    ProLine® XE
    Shipping Height
    28"
    Shipping Length
    52"
    Shipping Width
    22"
    Side Loop
    No
    Dimension & Venting
    Type
    Boiler
    Height
    44.25"
    Width
    17.25"
    Shipping Weight
    153lbs
    Vent Type
    Direct Vent
