Product Details
- Easy Installation—Plugs into a standard 120 volt wall outlet, & top water connections make it easy to replace an existing gas water heater
- Leak Protection Technology—Smart sensor alerts the user in the event of a leak

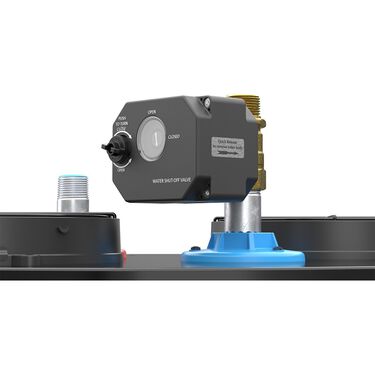

- Shutoff valve automatically closes when a leak is detected

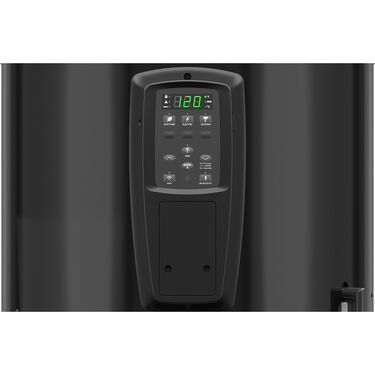

- Digital control makes it simple to set to preferred water temperature
- Whisper-Quiet Operation at 45 dBA
- Equipped with CTA-2045-A port to allow for participation in utility demand response programs for added energy savings
- Choose from Efficiency, Hybrid, or Electric modes for optimal performance and savings
- Dual 900-watt elements, 120 VAC 60Hz single phase 15 amp shared circuit
- Patented Blue Diamond® glass tank lining protects against corrosion
- 10-year limited tank and parts warranty

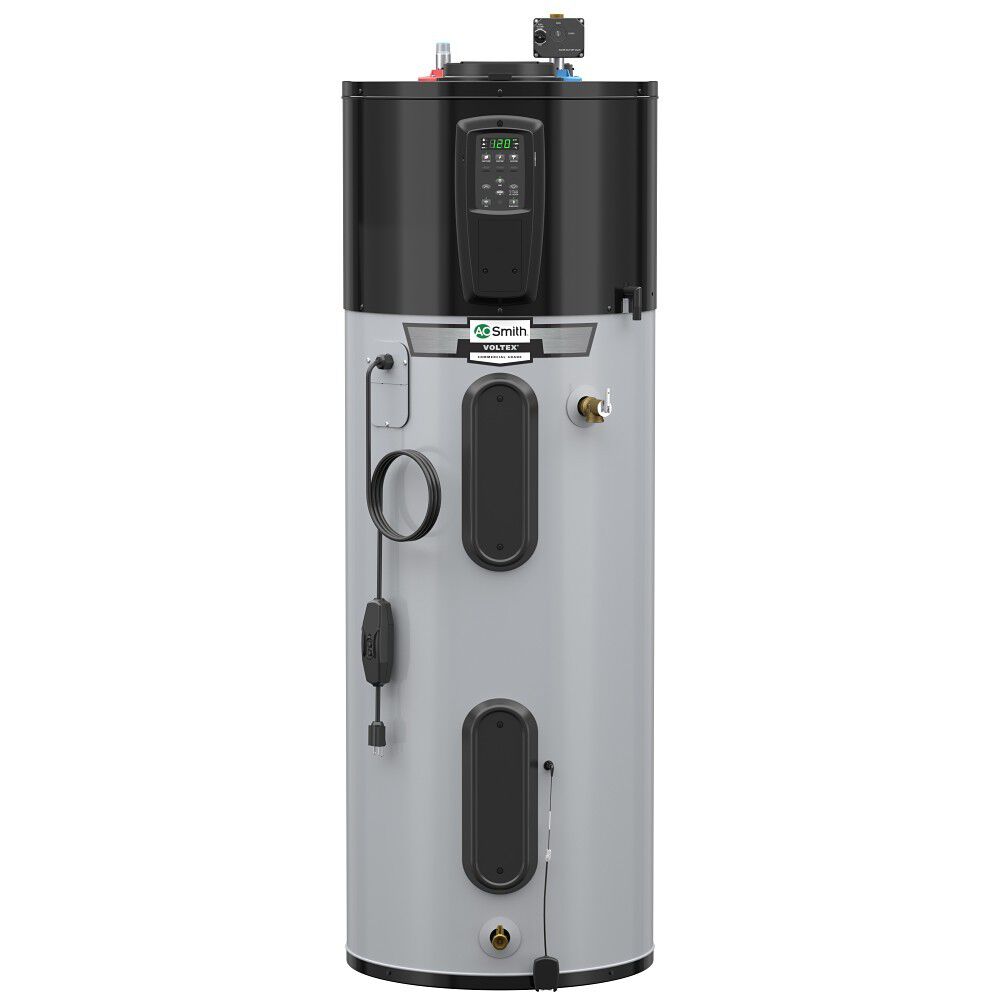

The Voltex® 120V Plug-In Hybrid Electric heat pump water heater from A. O. Smith Water Heaters makes it easier than ever for consumers to electrify to an energy-efficient option to save money on their utility bills. These models plug into a standard wall outlet for easy installation and provide annual savings up to $118 on utility bills* compared to a gas water heater. They have whisper-quiet operation at just 45 dBA.
Specifications
Tech Specs
Nominal Gallon Capacity
50 Gallons
Rated Storage Volume
46 Gallons
UEF
3
Power Source
ELECTRIC
Limited Tank Warranty
10 Years
Limited Parts Warranty
10 Years

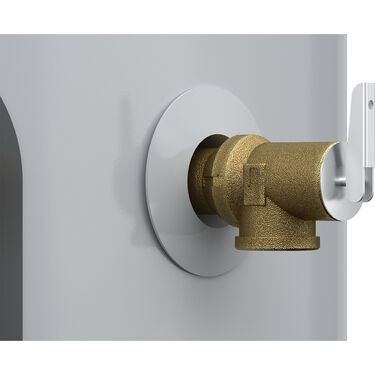

T&P Relief Valve
Yes
Water Connection Location
TOP
Water Connection Size
3/4-in"
First Hour Rating
52 Gallons
ASME Certified
No
NEEA Certified
Yes
Amperes
9.38
Destination Country
US
Digital Display
Yes
ENERGY STAR® Certified
Yes
Height to T&P
39.75
Installation Type
INDOOR
Max Wattage
900
Number of Elements
2
Application
RESIDENTIAL
Shipping Height
67.75"
Shipping Length
27.13"
Shipping Width
23.5"
Side Loop
No
Voltage
120
Dimension & Venting
Type
Water Heater
Height
66"
Diameter
22 in."
Width
22"
Shipping Weight
196 lbs
