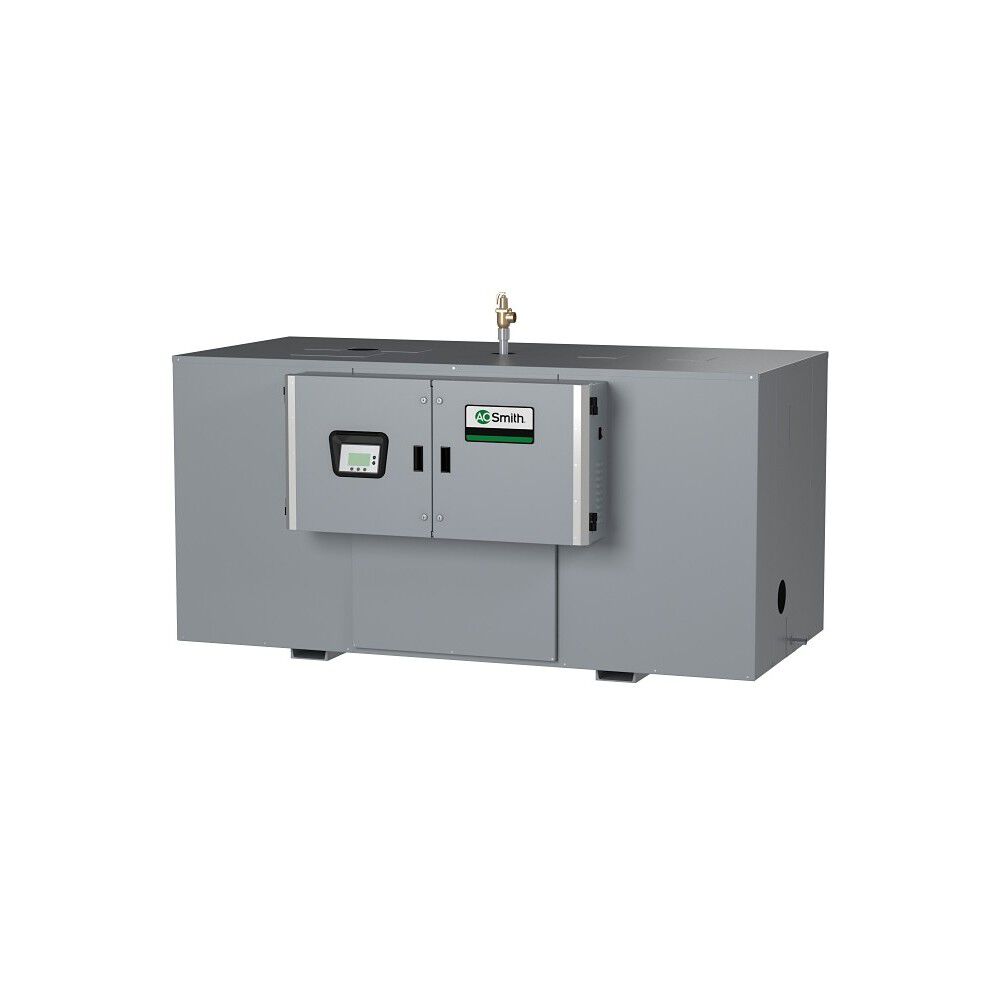

Dura-Power™ Xi 2500-Gallon Custom Horizontal Square Commercial Electric Water Heater

Model DHE2500A-270
Capacity (Gallons)
Advanced Options
Max Wattage

  • Advanced electronic control system provides precise temperature control and displays operating status
  • Built-in dry fire protection
  • Progressive modulating burner rotates elements to current load conditions providing equal wear and extending product life
  • Dura-Power™ Xi 2500-Gallon Custom Horizontal Square Commercial Electric Water Heater
    Model DHE2500A-270
    Product Details
    • Advanced electronic control system provides precise temperature control and displays operating status
    • Built-in dry fire protection
    • Progressive modulating burner rotates elements to current load conditions providing equal wear and extending product life
    • Economy mode reduces operating costs and saves money
    • Modbus/BACnet compatible with optional Gateway interface
    • Permaglas Ultra Coat glass lining provides super protection against corrosion
    • All models are constructed to the requirements of ASME and are available in 125, 150 and 160 psi working pressures
    • Heavy-duty incoloy sheathing elements provide excellent protection against oxidation and scaling
    • 3-year limited tank and 1-year limited parts warranty

    • Dura-Power™ Xi commercial electric water heaters are built to the same high quality standards as our gas models. These are the largest commercial electric water heaters we manufacture. Ideal for use as recovery heaters for all types of large commercial and industrial applications or for large process potable hot water requirements. A. O. Smith offers horizontal square models ranging from 150-2,500 gallon capacities, and they can be customized to meet any special application. Optional dual-energy source provides emergency back up energy source or winter/summer boiler operation. A. O. Smith offers the largest commercial product selection available, including the most specified commercial unit in the U.S. We offer more than 500 different commercial models, including gas fired, oil-fired and electric configurations, ranging in capacities from 5 to 10,000 gallons, with input range from 50,000 BTU to the equivalent of 4,000,000 BTU. Our comprehensive line is the natural fit for spec jobs requiring everything from the smallest commercial installation up to the largest multi-structure complex.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    2500 Gallons
    Rated Storage Volume
    2500 Gallons
    Maximum BTUs
    945,000
    Limited Tank Warranty
    3 Years
    Limited Parts Warranty
    1 Years
    ASME Certified
    Yes
    ASME Stamp
    HLW
    Amperes
    390
    Destination Country
    US
    Max Wattage
    270,000
    Number of Elements
    15
    Application
    COMMERCIAL
    Shipping Height
    62"
    Shipping Length
    142"
    Shipping Width
    64"
    Side Loop
    No
    Voltage
    400
    Dimension & Venting
    Type
    Water Heater
    Shipping Weight
    5900 lbs
