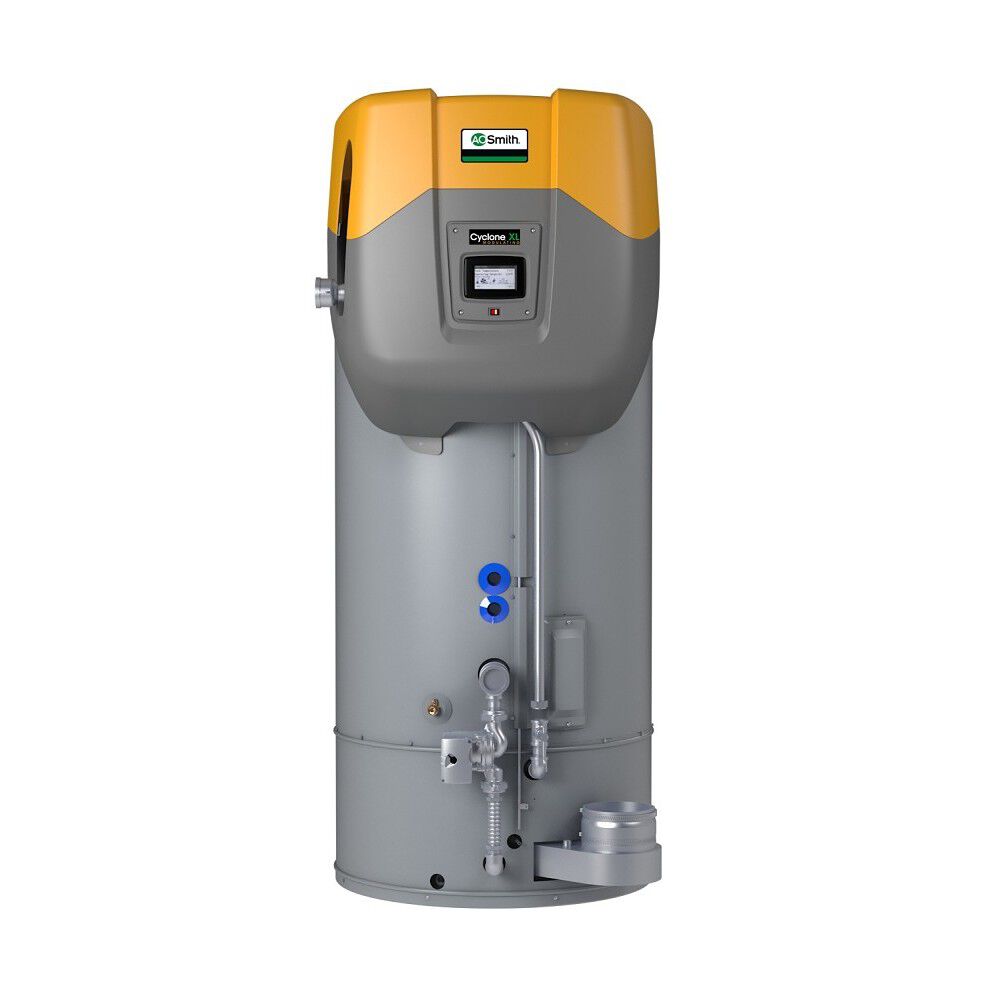

Cyclone® XL 120-Gallon Condensing Gas Water Heater with Modulating Burner

Model BTHS-1000A
Capacity (Gallons)
Fuel Source
ASME Indicator
Maximum BTU's
  • ENERGY STAR® certified - Up to 97% thermal efficiency dramatically lowers operating costs
  • Intelligent Demand Response control system senses large water draws and automatically adjusts the differential setpoint, increasing the hot water available when it is needed the most
  • Submerged combustion chamber, with helical heat exchanger, positioned in center of tank, surrounded by water to virtually eliminate radiant heat loss from chamber
Product Details
  • ENERGY STAR® certified - Up to 97% thermal efficiency dramatically lowers operating costs
  • Intelligent Demand Response control system senses large water draws and automatically adjusts the differential setpoint, increasing the hot water available when it is needed the most
  • Submerged combustion chamber, with helical heat exchanger, positioned in center of tank, surrounded by water to virtually eliminate radiant heat loss from chamber
  • iCOMM™ remote monitoring provides detailed diagnostic fault notifications and control of the set point and differential using the free A.O. Smith app
  • Single 1M BTU/h unit has a smaller footprint than two 500K units or most other 1M BTU/h options
  • Patent pending stainless steel heat exchange system provides 97% thermal efficiency
  • Rugged stainless steel construction, glass-lining, and powered anodes provide superior corrosion resistance
  • ASME tank construction standard on all models
  • 5-year limited tank and 1-year limited parts warranty

  • Cyclone® XL extends the existing Cyclone condensing water heater tank line to 750,000 and 1,000,000 BTU/hour in a comparable footprint, making it ideal for the largest commercial applications. Hotels, apartment buildings, multi-family complexes, stadiums, convention centers, and high rise/sky rise towers are ideally suited for Cyclone XL water heaters. BTHS-1000A uses up to 1,000,000 BTU/h of gas to deliver 1,176 GPH at 100°F rise. A. O. Smith offers the largest commercial product selection available, including the most specified commercial unit in the U.S. We offer more than 500 different commercial models, including gas fired, oil-fired and electric configurations, ranging in capacities from 5 to 10,000 gallons, with input range from 50,000 BTU to the equivalent of 4,000,000 BTU. Our comprehensive line is the natural fit for spec jobs requiring everything from the smallest commercial installation up to the largest multi-structure complex.

Specifications
Tech Specs
Nominal Gallon Capacity
120 Gallons
Rated Storage Volume
119 Gallons
Thermal Efficiency
97%
Maximum BTUs
1,000,000
Power Source
GAS
Limited Tank Warranty
5 Years
Limited Parts Warranty
1 Years
T&P Relief Valve
TRUE
Water Connection Size
2"
ASME Certified
Yes
ASME Stamp
HLW
Amperes
6.5
Destination Country
US
Digital Display
true
Energy Star Certified
true
Flue Diameter
6.00
Fuel Source
NATURAL
Height to Gas Valve
61.00
Installation Type
INDOOR
Minimum BTUs
399,000.00
Application
SPECIALTY
Recovery Rise at 90°F
1,306
Shipping Height
40
Shipping Length
89
Shipping Width
48
Side Loop
No
Vent Material
PVC, CPVC, Polypropylene, AL29-4C Stainless
Voltage
120
Dimension & Venting
Type
Water Heater
Height
80.75"
Diameter
33.12 in."
Shipping Weight
1300lbs
