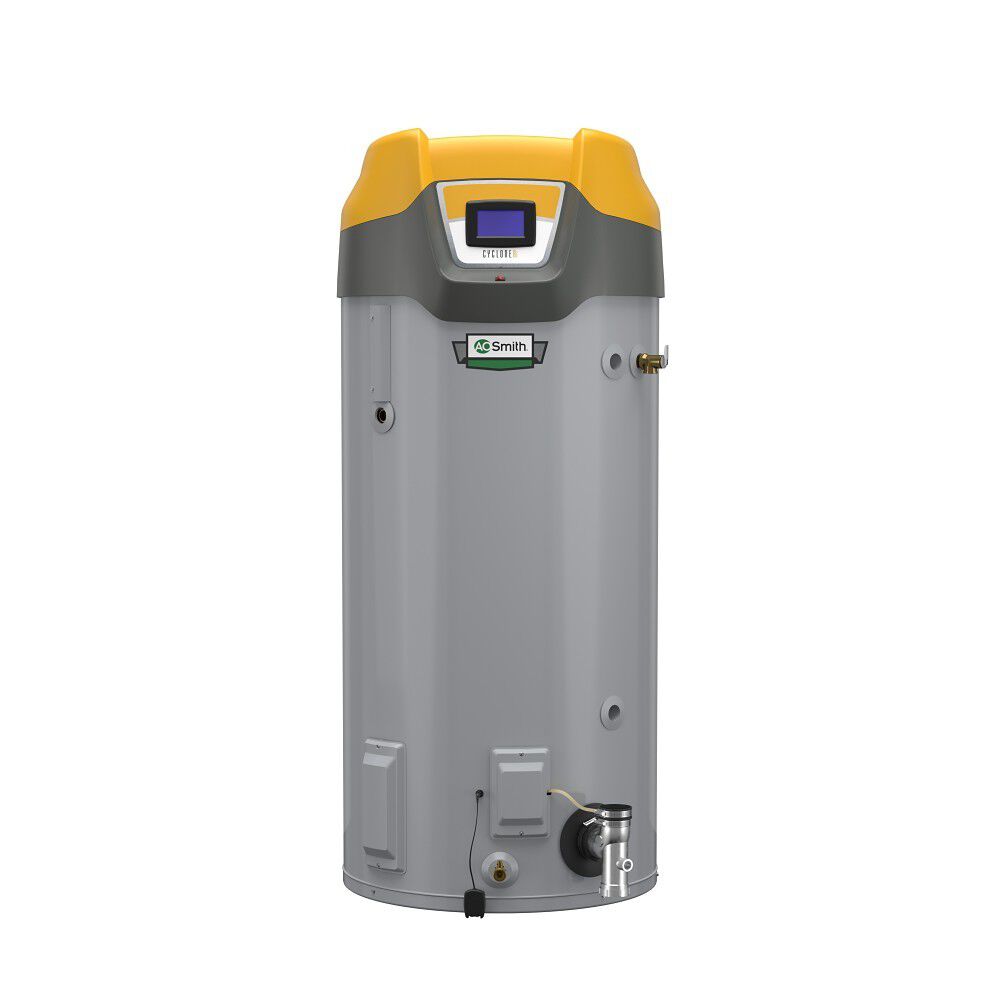

Cyclone® Xi Power Direct Vent Condensing Commercial Gas Water Heater with Modulating Burner

Model BTXL-100 400
Capacity (Gallons)
Fuel Source
ASME Indicator
Maximum BTU's

  • 3-Year Warranty
  • 96% Thermal Efficiency—Maximizes energy savings and reduces operating costs

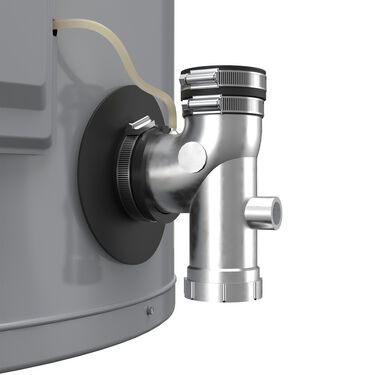

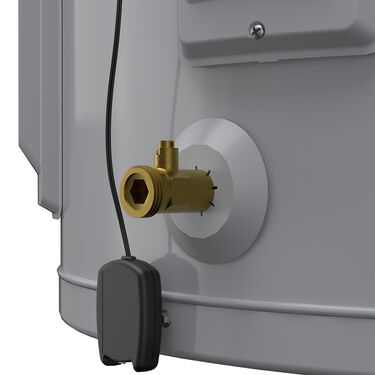

  • Condensing Design—High-efficiency operation with a built-in condensate drain tee for easy maintenance
  • Cyclone® Xi Power Direct Vent Condensing Commercial Gas Water Heater with Modulating Burner
    Model BTXL-100 400
    Product Details
    • 3-Year Warranty
    • 96% Thermal Efficiency—Maximizes energy savings and reduces operating costs
    • Condensing Design—High-efficiency operation with a built-in condensate drain tee for easy maintenance
    • AiQ™ Adaptive Gas Control System—Ensures reliable combustion and adjusts to varying fuel qualities for optimal performance
    • Helical Internal Heat Exchanger—Extends the heat transfer cycle for superior hot water output
    • Top-fired Ultra Low NOx gas burner complies with SCAQMD Rule 1146.2 and other Air Quality Management Districts with similar requirements
    • Blue Diamond® glass-lining and CoreGard® powered anode rod provide superior corrosion resistance
    • Power Direct Vent Design—Allows flexible installation with vertical and horizontal venting options using PVC, CPVC, or polypropylene pipes
    • Features Blue Diamond® glass coating for superior corrosion resistance and a powered anode for extended tank life
    • Includes a 3-year limited tank warranty and 1-year limited parts warranty for peace of mind

    • The Cyclone® Xi Versatile Power Direct Vent gas water heater is a cutting-edge solution designed to deliver exceptional performance and efficiency for commercial applications. With an impressive 96% thermal efficiency, this fully condensing water heater ensures maximum energy savings while providing outstanding hot water output. Its innovative helical heat exchanger keeps hot combustion gases in the tank longer, optimizing the heat transfer cycle for superior results. The Cyclone® Xi is equipped with advanced features like the AiQ™ Adaptive Gas Control system, which adjusts to varying fuel qualities and ensures reliable combustion. Power by natural gas or liquid propane with its touch-screen gas type selection.

      The Cyclone® Xi boasts a Blue Diamond® glass coating for superior corrosion resistance and a powered anode for extended tank life. Its ultra-low NOx gas burner meets stringent air quality standards, making it an environmentally friendly choice. The power direct vent design allows for versatile installation with vertical and horizontal venting options using PVC, CPVC, or polypropylene pipes. Certified by CSA and ASME, this water heater meets national codes and efficiency requirements, ensuring reliability and peace of mind. With a sleek design, advanced electronic controls, and a 3-year limited tank warranty, the Cyclone® Xi is the ideal choice for commercial applications seeking high performance and long-term value.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    75 Gallons
    Rated Storage Volume
    73.9 Gallons
    Thermal Efficiency
    96%
    Maximum BTUs
    100,000
    Power Source
    GAS
    Limited Tank Warranty
    3 Years
    Limited Parts Warranty
    1 Years

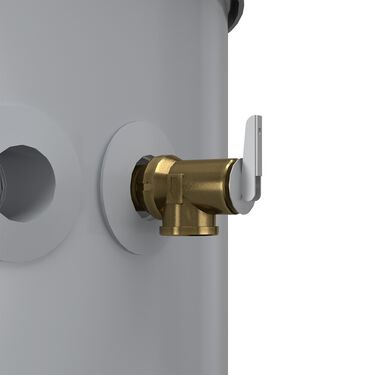

    T&P Relief Valve
    Yes
    Water Connection Location
    TOP
    Water Connection Size
    0.75"
    ASME Certified
    No
    Amperes
    5
    Destination Country
    US

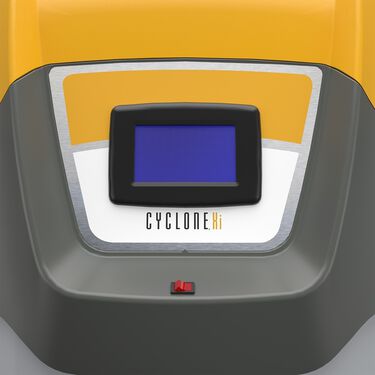

    Digital Display
    Yes
    ENERGY STAR® Certified
    Yes
    Fuel Source
    MULTIPLE
    Height to T&P
    45.62
    Installation Type
    INDOOR
    Minimum BTUs
    100,000
    Application
    COMMERCIAL
    Shipping Height
    76"
    Shipping Length
    37"
    Shipping Width
    34"
    Side Loop
    Yes
    Voltage
    120
    Dimension & Venting
    Type
    Water Heater
    Height
    65.25"
    Diameter
    27.75 in."
    Shipping Weight
    388 lbs
    Vent Type
    Power Direct Vent
    Height to Gas Valve
    60"
