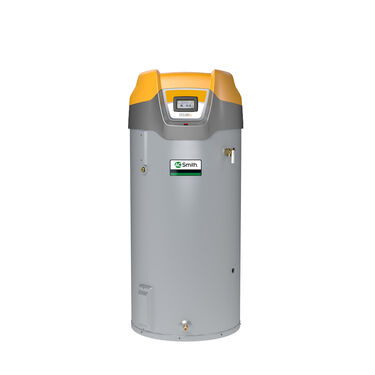

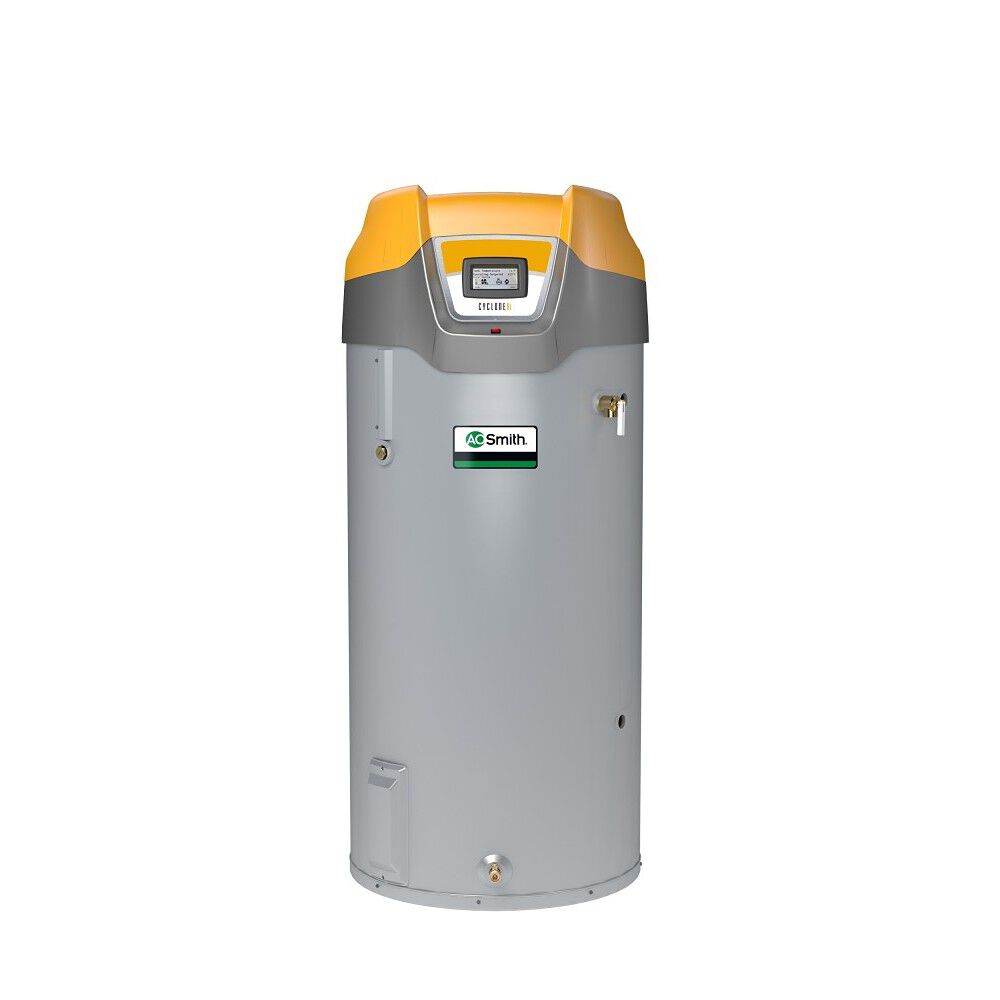

Cyclone® Xi 75-Gallon Power Direct Vent Condensing Commercial Gas Water Heater with Modulating Burner

Model BTXL-100
Capacity (Gallons)
Fuel Source
ASME Indicator
Maximum BTU's
  • ENERGY STAR® certified
  • Delivers up to 115 GPH at 100°F Rise
  • Operates at 96% thermal efficiency, which saves money on operating costs compared to a standard 80% efficient gas water heater
Product Details
  • ENERGY STAR® certified
  • Delivers up to 115 GPH at 100°F Rise
  • Operates at 96% thermal efficiency, which saves money on operating costs compared to a standard 80% efficient gas water heater
  • Exclusive A. O. Smith designed touch display control system delivers precise temperature control up to 181°F, built-in diagnostics and operational information
  • Spiral heat exchanger keeps hot combustion gases in the tank longer to lengthen the heat transfer cycle & reduces scale formation on the heat exchanger
  • Combined vertical and horizontal runs terminating through the roof or an outside wall vents using PVC, CPVC or polypropylene piping
  • Side-mounted hot and cold recirculating taps allows Cyclone® Xi to be installed as part of combination space heating/water heating pplications
  • Top-fired Ultra Low NOx gas burner complies with SCAQMD Rule 1146.2 and other Air Quality Management Districts with similar requirements
  • Blue Diamond® glass-lining and Coregard® anode rod provide superior corrosion resistance
  • 3-year limited tank / 1-year limited parts warranty

  • The Cyclone® Xi is a light-duty, power direct vent, fully condensing commercial gas water heater with an internal helical heat exchanger. This helical heat exchanger helps Cyclone Xi achieve 96% thermal efficiency and deliver outstanding hot water output. BTXL-100 uses up to 100,000 BTU/h of gas to deliver 115 GPH at 100 rise. A. O. Smith offers the largest commercial product selection available, including the most specified commercial unit in the U.S. We offer more than 500 different commercial models, including gas fired, oil-fired and electric configurations, ranging in capacities from 5 to 10,000 gallons, with input range from 50,000 BTU to the equivalent of 4,000,000 BTU. Our comprehensive line is the natural fit for spec jobs requiring everything from the smallest commercial installation up to the largest multi-structure complex.

Specifications
Tech Specs
Nominal Gallon Capacity
75 Gallons
Rated Storage Volume
73.7 Gallons
Thermal Efficiency
96%
Maximum BTUs
100,000
Power Source
GAS
Limited Tank Warranty
3 Years
Limited Parts Warranty
1 Years
T&P Relief Valve
TRUE
Water Connection Location
BOTH
ASME Certified
No
Amperes
5
Destination Country
US
Digital Display
true
Energy Star Certified
true
Fuel Source
PROPANE
Installation Type
INDOOR
Recovery Rise at 90°F
129
Shipping Height
74
Shipping Length
36
Shipping Width
34.5
Side Loop
Yes
Voltage
120
Dimension & Venting
Type
Water Heater
Diameter
27.75 in."
Shipping Weight
382lbs
Vent Type
Power Direct Vent
