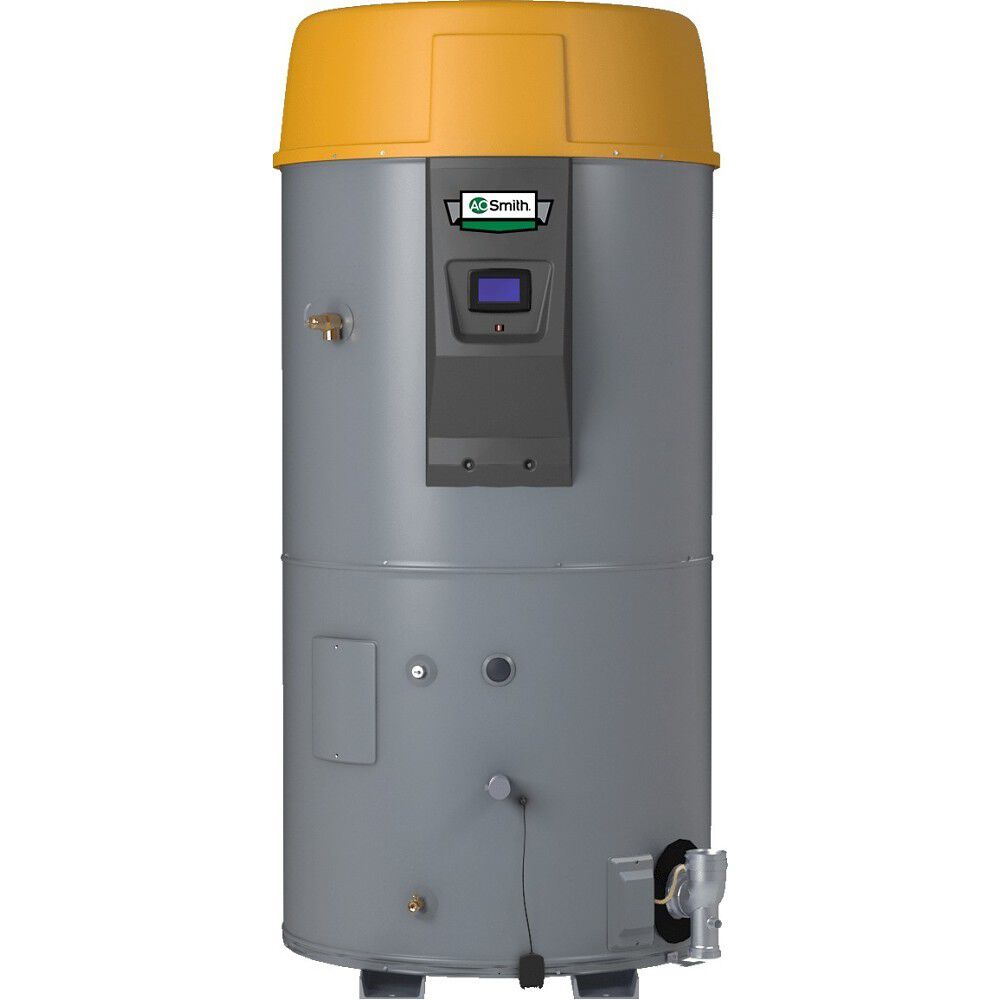

Cyclone® LV Condensing Commercial Gas Water Heater with Modulating Burner

Model BTHL-199A 400
Capacity (Gallons)
Fuel Source
Maximum BTU's

  • ENERGY STAR® certified—Delivers thermal efficiencies of 95% or greater, reducing energy costs and maximizing performance
  • AIQ™ Adaptive Gas Technology—Automatically adjusts input based on demand, ensuring optimal combustion and efficiency
  • Intelligent Control System—Features a color touch screen display with precise temperature control, built-in diagnostics, & remote monitoring via iCOMM™ Wi-Fi connectivity
  • Cyclone® LV Condensing Commercial Gas Water Heater with Modulating Burner
    Model BTHL-199A 400
    Product Details
    • ENERGY STAR® certified—Delivers thermal efficiencies of 95% or greater, reducing energy costs and maximizing performance
    • AIQ™ Adaptive Gas Technology—Automatically adjusts input based on demand, ensuring optimal combustion and efficiency
    • Intelligent Control System—Features a color touch screen display with precise temperature control, built-in diagnostics, & remote monitoring via iCOMM™ Wi-Fi connectivity
    • Down-Fired Pre-Mix Burner—Ensures quiet operation and high efficiency, with no special calibration required during startup
    • Helical Coil Heat Exchanger—Maximizes heat transfer while reducing lime scale buildup, maintaining long-term energy efficiency
    • Space-Saving Design—Allows flexible installation with minimal clearance requirements and eliminates the need for multiple water heaters or storage tanks
    • Leak Detection Module—Alerts users audibly and via iCOMM connectivity in case of leaks, enhancing safety and reliability
    • Intelligent Demand Response (IDR)—Automatically adjusts to large water draws, increasing hot water availability when needed most
    • Meets U.S. Department of Energy and ASHRAE/IES 90.1 efficiency requirements & ultra-low NOx emission standards
    • 5-year limited tank & 1-year limited parts warranty

    • Cyclone® LV Condensing Commercial Gas water heaters with modulating burners deliver exceptional efficiency and reliability for demanding commercial applications. This series features advanced adaptive gas technology that automatically adjusts the input based on demand, ensuring optimal performance. Its helical coil heat exchanger maximizes heat transfer efficiency while reducing lime scale buildup, maintaining energy efficiency over time. The Cyclone® LV achieves thermal efficiencies of 95% or greater, with capacities from 150,000 to 500,000 BTU/h, making it a powerful solution for large-scale hot water needs. The intelligent control system, equipped with a color touch screen display and iCOMM™ Wi-Fi connectivity, allows users to monitor and adjust settings remotely, enhancing convenience and operational control.

      This water heater incorporates innovative features to ensure durability and ease of use. The powered anodes provide long-lasting tank protection in varying water conditions, while the Permaglas® Ultra Coat™ glass lining safeguards the tank and heat exchanger from corrosion. The down-fired pre-mix burner ensures quiet operation and high efficiency, while the space-saving design offers installation flexibility with minimal clearance requirements. The Cyclone LV includes a leak detection module and Intelligent Demand Response (IDR) technology, which senses large water draws and adjusts the differential setpoint to increase hot water availability when needed most. With its robust construction, advanced technology, and user-friendly features, the Cyclone LV sets a high standard for commercial water heating solutions.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    250 Gallons
    Rated Storage Volume
    243.9 Gallons
    Thermal Efficiency
    95%
    Maximum BTUs
    199,900
    Power Source
    GAS
    Limited Tank Warranty
    3 Years
    Limited Parts Warranty
    1 Years
    T&P Relief Valve
    Yes
    Water Connection Size
    1.5"
    ASME Certified
    Yes
    ASME Stamp
    HLW
    Amperes
    5
    Destination Country
    US
    Digital Display
    true
    ENERGY STAR® Certified
    true
    Fuel Source
    MULTIPLE
    Height to Gas Valve
    90.13
    Height to T&P
    62.62
    Installation Type
    INDOOR
    Minimum BTUs
    78,000.00
    Application
    COMMERCIAL
    Shipping Height
    96"
    Shipping Length
    53.5"
    Shipping Width
    50.5"
    Side Loop
    No
    Vent Material
    PVC, CPVC, Polypropylene, AL29-4C Stainless
    Voltage
    120
    Dimension & Venting
    Type
    Water Heater
    Height
    91.5"
    Diameter
    42.13 in."
    Shipping Weight
    1087lbs
