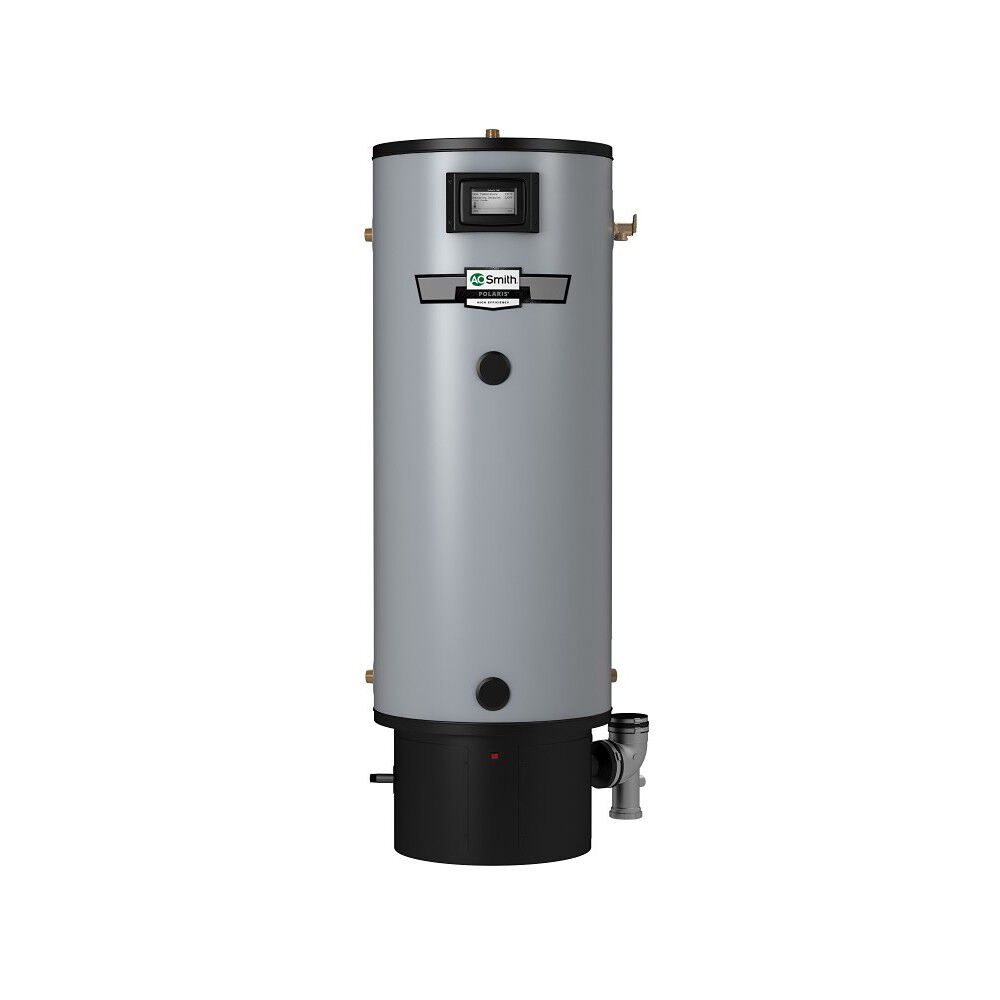

Polaris™ 50-Gallon Power Direct Vent Natural Gas Water Heater

Model GTP-199
3.6 out of 5 Customer Rating
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getAggregateRating, 20ms
  • reviews, product
  • bvseo-msg: Unsuccessful GET. status = 'ERROR', msg = 'Not Found.';
Capacity (Gallons)
Height Classification
Advanced Options
Fuel Source
Maximum BTU's

  • Delivers 253-gallon recovery rate
  • Ultra-Low NOx modulating gas burner maintains high efficiency operation at lower input rates
  • High efficiency condensing design delivers up to X thermal efficiency
  • Product Details
    • Delivers 253-gallon recovery rate
    • Ultra-Low NOx modulating gas burner maintains high efficiency operation at lower input rates
    • High efficiency condensing design delivers up to X thermal efficiency
    • Helical coil internal heat exchanger lengthens heat transfer cycle and reduces lime & scale build-up to maintain high efficiency operation
    • Power direct design vents up to 130 equivalent feet using PVC, CPVC or Polypropylene (solid core only) through a sidewall or roof
    • Full serviceable from the front two access panels & modeular components easily reomvable
    • Tank and helical heat exchanger are constructed of 444 stainless steel for superior corrosion resistance
    • Includes side mounted recirculation taps for easy installation with combination space heating/potable water heating applications
    • Ultra quiet blower and burner to minimize noise
    • 10-year limited tank and parts warranty

    • The ProLine® XE Polaris™ 50-Gallon Power Direct Vent Liquid Propane Gas Water Heater is the high performance answer for today’s hot water needs. It can provide endless hot water* and can be used for a combination of domestic hot water and space heating. Featuring a 50-gallon (nominal) tank and a 199,000 BTU natural gas burner, the Polaris® GTP-199 power direct vent delivers a Thermal Efficiency of 96% and a recovery rate of 253 gallons per hour. It carries a 10-year limited tank and parts warranty, and meets Ultra-Low NOx emission requirements. Environmentally-friendly insulation and factory-installed heat trap nipples reduce heat loss for maximum energy savings. This ProLine® XE water heater is designed with A. O. Smith's superior commercial-grade tank protection. Advanced tank features include stainless steel Coregard™ anode rod, Blue Diamond® glass lining and DynaClean™ automatic sediment-cleaning system, all designed to help protect the tank from the corrosive effects of water and extend the life of the water heater. A. O. Smith’s ProLine® water heaters are residential products built to commercial-grade standard and are only available for purchase through professional wholesalers and contractors.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    50 Gallons
    Rated Storage Volume
    48.5 Gallons
    Thermal Efficiency
    96%
    Maximum BTUs
    199,000
    Power Source
    GAS
    Limited Tank Warranty
    10 Years
    Limited Parts Warranty
    10 Years
    T&P Relief Valve
    TRUE
    Water Connection Location
    SIDE
    Water Connection Size
    1"
    ASME Certified
    No
    Amperes
    5
    Blanket Included
    No
    Destination Country
    US
    Digital Display
    true
    Energy Star Certified
    true
    Fuel Source
    NATURAL
    Height to Gas Valve
    6.00
    Height to T&P
    55.75
    Ignition Type
    Electronic Hot Surface Igniter
    Installation Type
    INDOOR
    Minimum BTUs
    80,000.00
    Application
    RESIDENTIAL
    Product Tier
    ProLine® XE
    Recovery Rise at 90°F
    257
    Shipping Height
    69.25
    Shipping Length
    26
    Shipping Width
    26
    Side Loop
    No
    Voltage
    120
    Dimension & Venting
    Type
    Water Heater
    Height
    63.75"
    Diameter
    22 in."
    Shipping Weight
    199lbs
    Vent Type
    Power Direct Vent
