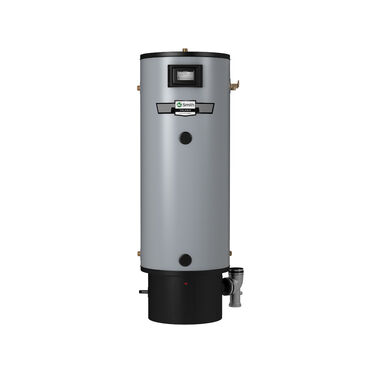

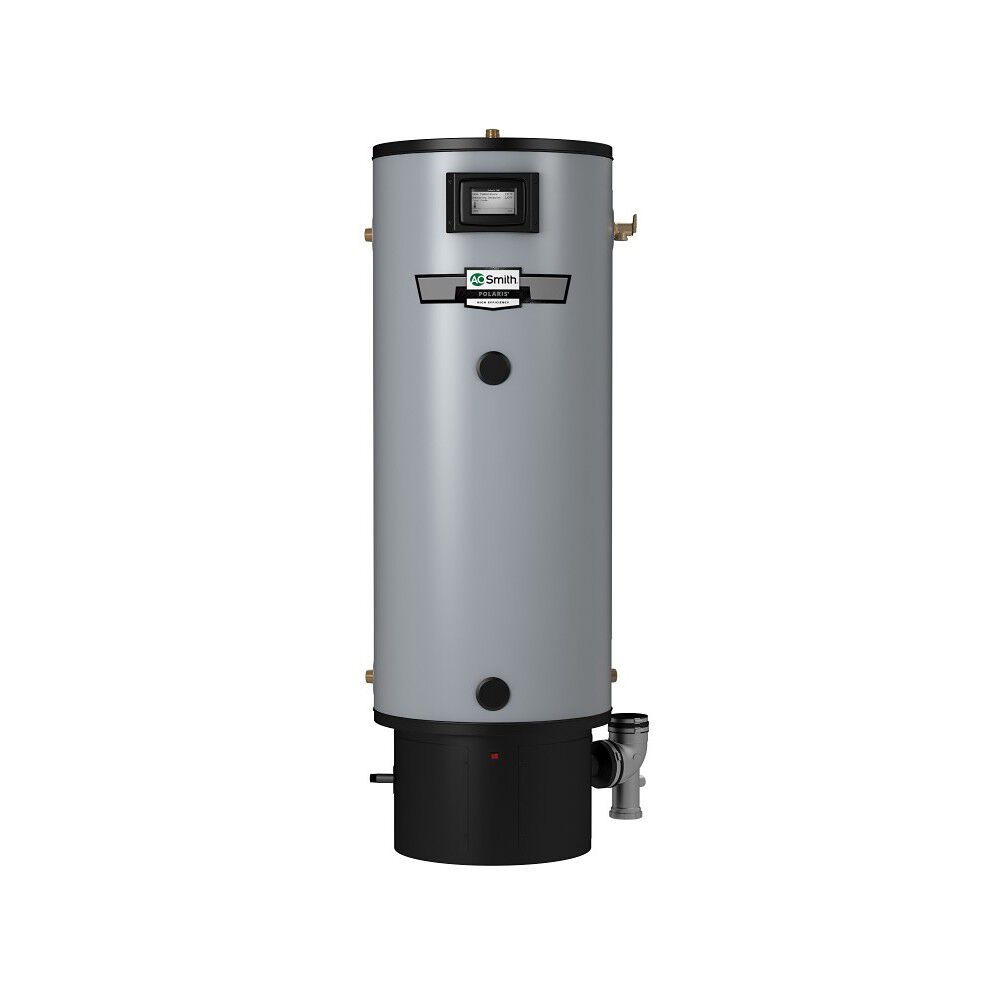

Polaris™ 50-Gallon Power Direct Vent Natural Gas Water Heater

Model GTP-175
5 out of 5 Customer Rating
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getAggregateRating, 23ms
  • reviews, product
  • bvseo-msg: Unsuccessful GET. status = 'ERROR', msg = 'Not Found.';
Capacity (Gallons)
Height Classification
Advanced Options
Fuel Source
Maximum BTU's
  • Delivers 222-gallon recovery rate
  • Ultra-Low NOx modulating gas burner maintains high efficiency operation at lower input rates
  • High efficiency condensing design delivers up to X thermal efficiency
Product Details
  • Delivers 222-gallon recovery rate
  • Ultra-Low NOx modulating gas burner maintains high efficiency operation at lower input rates
  • High efficiency condensing design delivers up to X thermal efficiency
  • Helical coil internal heat exchanger lengthens heat transfer cycle and reduces lime & scale build-up to maintain high efficiency operation
  • Power direct design vents up to 130 equivalent feet using PVC, CPVC or Polypropylene (solid core only) through a sidewall or roof
  • Full serviceable from the front two access panels & modeular components easily reomvable
  • Tank and helical heat exchanger are constructed of 444 stainless steel for superior corrosion resistance
  • Includes side mounted recirculation taps for easy installation with combination space heating/potable water heating applications
  • Ultra quiet blower and burner to minimize noise
  • 10-year limited tank and parts warranty

  • The ProLine® XE Polaris™ 50-Gallon Power Direct Vent Natural Gas Water Heater is the high performance answer for today’s hot water needs. It can provide endless hot water* and can be used for a combination of domestic hot water and space heating. Featuring a 50-gallon (nominal) tank and a 175,000 BTU natural gas burner, the Polaris® GTP-175 power direct vent delivers a Thermal Efficiency of 96% and a recovery rate of 222 gallons per hour. It carries a 10-year limited tank and parts warranty, and meets Ultra-Low NOx emission requirements. Environmentally-friendly insulation and factory-installed heat trap nipples reduce heat loss for maximum energy savings. This ProLine® XE water heater is designed with A. O. Smith's superior commercial-grade tank protection. Advanced tank features include stainless steel Coregard™ anode rod, Blue Diamond® glass lining and DynaClean™ automatic sediment-cleaning system, all designed to help protect the tank from the corrosive effects of water and extend the life of the water heater. A. O. Smith’s ProLine® water heaters are residential products built to commercial-grade standard and are only available for purchase through professional wholesalers and contractors.

Specifications
Tech Specs
Nominal Gallon Capacity
50 Gallons
Rated Storage Volume
48.5 Gallons
Thermal Efficiency
96%
Maximum BTUs
175,000
Power Source
GAS
Limited Tank Warranty
10 Years
Limited Parts Warranty
10 Years
T&P Relief Valve
TRUE
Water Connection Location
SIDE
Water Connection Size
1"
ASME Certified
No
Amperes
5
Blanket Included
No
Destination Country
US
Digital Display
true
Energy Star Certified
true
Fuel Source
NATURAL
Height to Gas Valve
6.00
Height to T&P
56.00
Ignition Type
Electronic Hot Surface Igniter
Installation Type
INDOOR
Minimum BTUs
80,000.00
Application
RESIDENTIAL
Product Tier
ProLine® XE
Recovery Rise at 90°F
226
Shipping Height
69.25
Shipping Length
26
Shipping Width
26
Side Loop
No
Voltage
120
Dimension & Venting
Type
Water Heater
Height
63.5"
Diameter
22 in."
Shipping Weight
200lbs
Vent Type
Power Direct Vent
