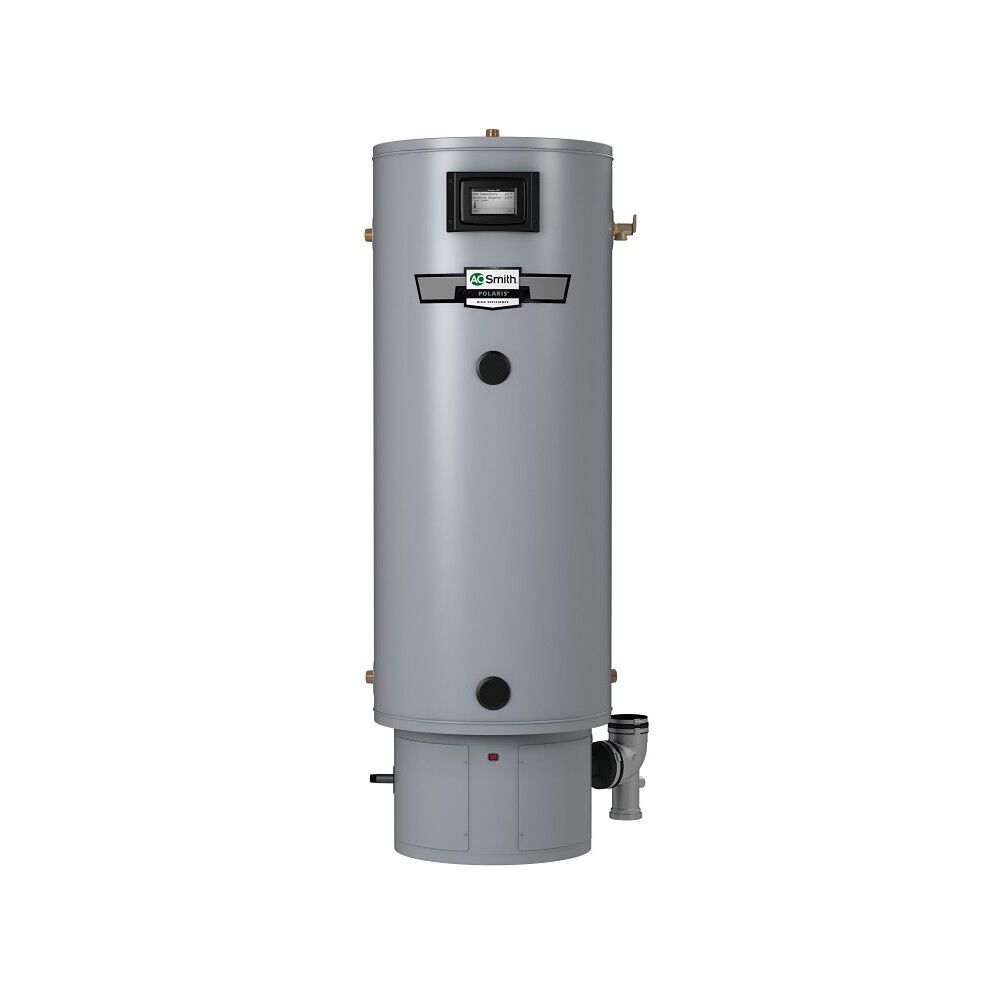

Polaris™ 50-Gallon High Efficiency Commercial Gas Water Heater

Model BTS-175
Capacity (Gallons)
Height Classification
Advanced Options
Fuel Source
Maximum BTU's
  • Condensing design operates at up to 96% thermal efficiency which saves money on operating costs compared to standard gas water heaters
  • Tank and helical heat exchanger are constructed from 444 stainless steel for excellent corrosion resistance
  • Ultra quiet blower and burner to minimize noise
Product Details
  • Condensing design operates at up to 96% thermal efficiency which saves money on operating costs compared to standard gas water heaters
  • Tank and helical heat exchanger are constructed from 444 stainless steel for excellent corrosion resistance
  • Ultra quiet blower and burner to minimize noise
  • Power direct vent design vents using PVC, CPVC or Polypropylene (solid core only) through a sidewall or roof
  • Advanced electronic control features large touchscreen display, precise temperature control and water heater status & diagnostics
  • Fully serviceable from front two access panels
  • Ultra Low NOx modulating gas burner complies with SCAQMD Rule 1146.2 and other Air Quality Management Districts with similar requirements
  • Side-mounted hot and cold recirculating taps can easily be installed with a recirculation system or as a part of a combined domestic & space heating system
  • CSA Certified and ASME rated T&P Relief Valve
  • 3-year limited tank and 1-year limited parts warranty

  • The Polaris is a light duty, fully condensing high efficiency commercial gas water heater. It can provide endless hot water when sized appropriately and can be used for a combination of domestic hot water and space heating. BTS-175 uses 175,000 BTU/h of gas to deliver 222 GPH at 90°F rise. A. O. Smith offers the largest commercial product selection available, including the most specified commercial unit in the U.S. We offer more than 500 different commercial models, including gas fired, oil-fired and electric configurations, ranging in capacities from 5 to 10,000 gallons, with input range from 50,000 BTU to the equivalent of 4,000,000 BTU. Our comprehensive line is the natural fit for spec jobs requiring everything from the smallest commercial installation up to the largest multi-structure complex.

Specifications
Tech Specs
Nominal Gallon Capacity
50 Gallons
Rated Storage Volume
48.5 Gallons
Thermal Efficiency
96%
Maximum BTUs
175,000
Power Source
GAS
Limited Tank Warranty
3 Years
Limited Parts Warranty
1 Years
T&P Relief Valve
TRUE
Water Connection Location
SIDE
ASME Certified
No
Amperes
5
Destination Country
US
Energy Star Certified
true
Fuel Source
PROPANE
Installation Type
INDOOR
Minimum BTUs
80,000.00
Application
COMMERCIAL
Recovery Rise at 90°F
226
Shipping Height
69.25
Shipping Length
26
Shipping Width
26
Side Loop
No
Voltage
120
Dimension & Venting
Type
Water Heater
Diameter
22 in."
Shipping Weight
196lbs
Vent Type
Power Direct Vent
