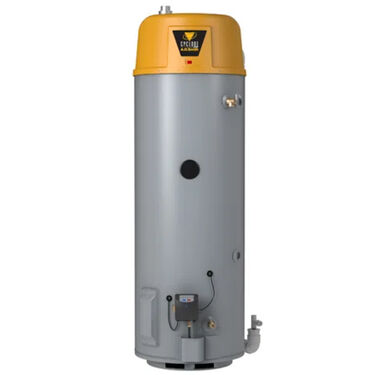

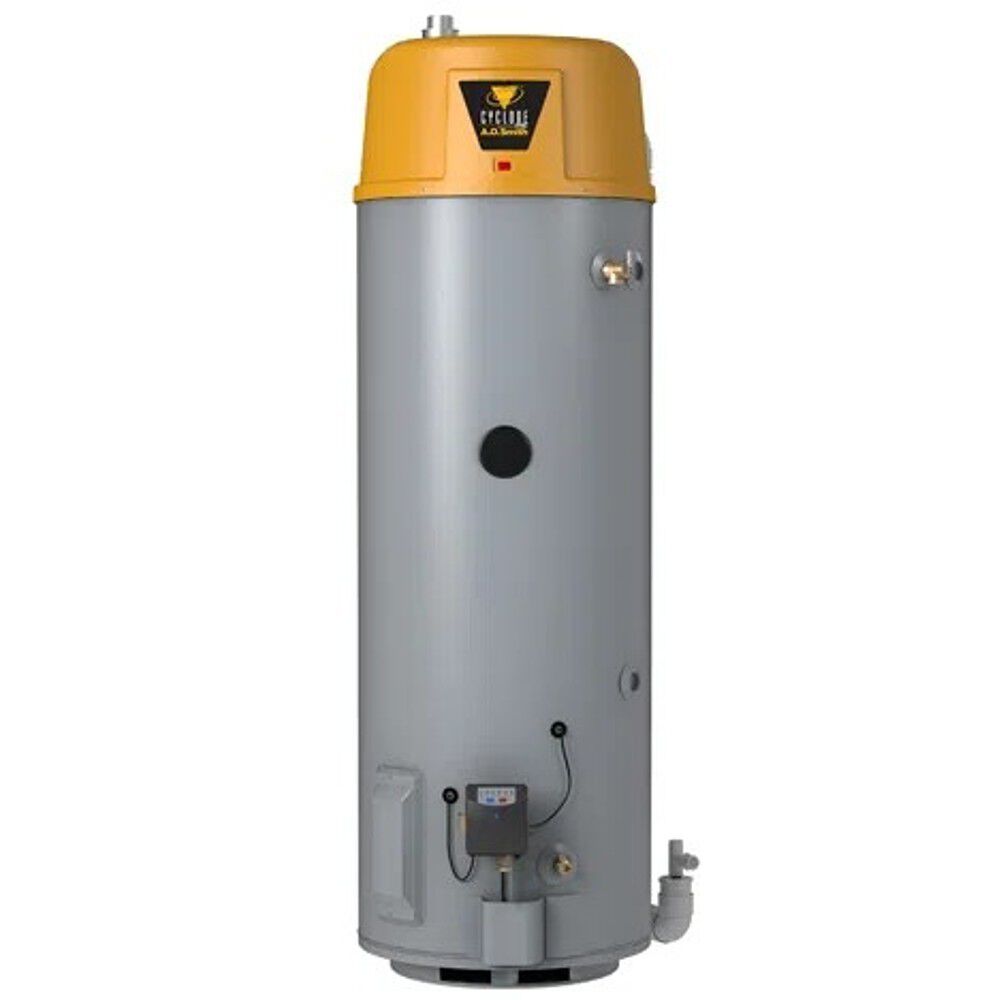

Cyclone® HE 50-Gallon Power Vent Condensing Commercial Gas Water Heater with Modulating Burner

Model BTX-80
5 out of 5 Customer Rating
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getAggregateRating, 8ms
  • reviews, product
  • bvseo-msg: Unsuccessful GET. status = 'ERROR', msg = 'Not Found.';
Capacity (Gallons)

  • Delivers up to 86 GPH at 100°F Rise
  • Produces 94% thermal efficiency, which saves money on operating costs, and increases hot water output compared to standard-efficiency water heaters
  • Intelli-vent™ gas control with silicon nitride hot surface ignitor for more precise control of water temperature and simplified system diagnostics
  • Product Details
    • Delivers up to 86 GPH at 100°F Rise
    • Produces 94% thermal efficiency, which saves money on operating costs, and increases hot water output compared to standard-efficiency water heaters
    • Intelli-vent™ gas control with silicon nitride hot surface ignitor for more precise control of water temperature and simplified system diagnostics
    • Exclusive A. O. Smith designed touch display control system delivers precise temperature control up to 181°F, built-in diagnostics and operational information
    • 22” diameter combined with 94% efficiency can be installed in less space than a larger unit, with equal or better performance
    • Patented eco-friendly Green Choice® Gas Burner design reduces NOx emissions by up to 33% and complies with Low-NOx emission requirements
    • Side-mounted taps allow for water heating plus space heating, radiant floor heating or other applications where a recirculating hot water loop is required
    • Blue Diamond® glass-lining and two heavy duty Coregard® anode rods provide superior corrosion resistance
    • 3-year limited tank and 1-year limited parts warranty

    • The Cyclone® HE is a light-duty, power vent, fully condensing commercial gas water heater with an internal helical heat exchanger, similar to the design of A. O. Smith’s industry-leading Cyclone® models. This helical heat exchanger helps Cyclone® HE achieve 94% thermal efficiency and deliver outstanding hot water output. The Cyclone HE delivers heavy-duty performance for numerous light-duty smaller applications, making it a perfect choice for restaurants, offices and other applications. BTX-80 uses 76,000 BTU/h of gas to deliver 86 GPH at 100°F rise. A. O. Smith offers the largest commercial product selection available, including the most specified commercial unit in the U.S. We offer more than 500 different commercial models, including gas fired, oil-fired and electric configurations, ranging in capacities from 5 to 10,000 gallons, with input range from 50,000 BTU to the equivalent of 4,000,000 BTU. Our comprehensive line is the natural fit for spec jobs requiring everything from the smallest commercial installation up to the largest multi-structure complex.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    50 Gallons
    Rated Storage Volume
    48 Gallons
    UEF
    0.88
    Thermal Efficiency
    94%
    Maximum BTUs
    76,000
    Power Source
    GAS
    Limited Tank Warranty
    6 Years
    Limited Parts Warranty
    1 Years
    T&P Relief Valve
    TRUE
    Water Connection Location
    TOP
    ASME Certified
    No
    Amperes
    5
    Destination Country
    US
    Energy Star Certified
    true
    Fuel Source
    NATURAL
    Installation Type
    INDOOR
    Application
    RESIDENTIAL
    Recovery Rise at 90°F
    96
    Shipping Height
    73
    Shipping Length
    30
    Shipping Width
    25.75
    Side Loop
    No
    Voltage
    120
    Dimension & Venting
    Type
    Water Heater
    Diameter
    22 in."
    Shipping Weight
    225lbs
    Vent Type
    Power Vent
