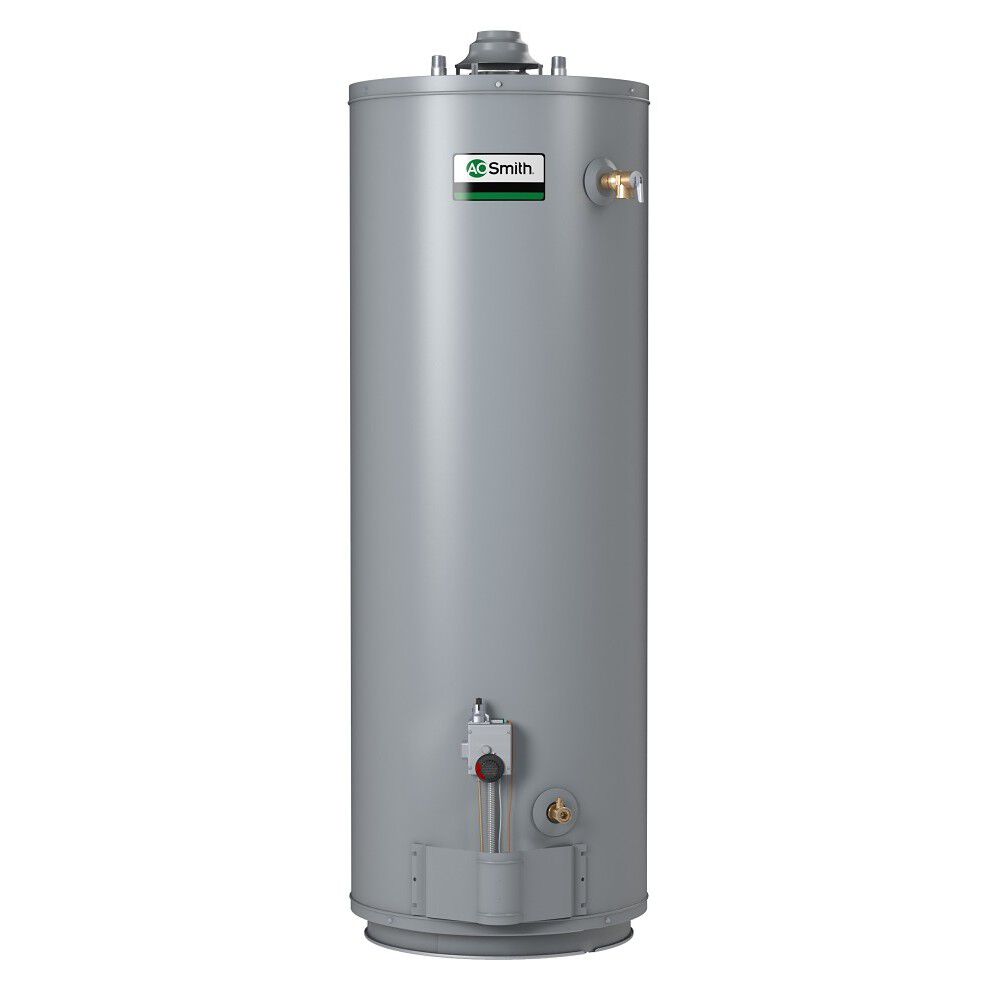

Conservationist® 55-Gallon Atmospheric Vent Commercial Gas Water Heater

Model BT-60
Capacity (Gallons)
Limited Tank Warranty
Height Classification
Advanced Options
Fuel Source
First Hour Rating
Maximum BTU's
Side Loop
Diameter
  • Delivers 52 GPH at 100°F Rise (LP)
  • Fully automated controls with safety shutoff
  • Patented eco-friendly Green Choice® Gas Burner design reduces NOx emissions by up to 33% and complies with Low-NOx emission requirements
Product Details
  • Delivers 52 GPH at 100°F Rise (LP)
  • Fully automated controls with safety shutoff
  • Patented eco-friendly Green Choice® Gas Burner design reduces NOx emissions by up to 33% and complies with Low-NOx emission requirements
  • Push-button piezo ignitor makes lighting pilot fast & easy
  • Patented Blue Diamond® glass tank lining protects against corrosion
  • Enhanced flow brass drain valve designed for easy maintenance and easy operation
  • Eco-Friendly non-CFC foam insulation, external heat traps and specially designed combustion chamber combine for maximum savings on operating costs
  • Factory-installed heat trap nipples for faster installation
  • Maximum hydrostatic working pressure 150 PSI
  • 3-year limited tank and 1-year limited parts warranty

  • Conservationist® BT-60 features fully automated controls with safety shutoff that is accurate, dependable control system requires no electric connections. BT-60 uses 60,000 BTU/h of liquid propane to deliver 52 GPH at 100°F rise. A. O. Smith offers the largest commercial product selection available, including the most specified commercial unit in the U.S. We offer more than 500 different commercial models, including gas fired, oil-fired and electric configurations, ranging in capacities from 5 to 10,000 gallons, with input range from 50,000 BTU to the equivalent of 4,000,000 BTU. Our comprehensive line is the natural fit for spec jobs requiring everything from the smallest commercial installation up to the largest multi-structure complex.

Specifications
Tech Specs
Nominal Gallon Capacity
55 Gallons
Rated Storage Volume
55 Gallons
UEF
0.62
Maximum BTUs
54,000
Power Source
GAS
Limited Tank Warranty
3 Years
Limited Parts Warranty
1 Years
Water Connection Location
TOP
First Hour Rating
83 Gallons
ASME Certified
No
Destination Country
US
Flue Diameter
5.00
Fuel Source
PROPANE
Shipping Height
59.31
Shipping Length
28.13
Shipping Width
25.13
Side Loop
No
Dimension & Venting
Type
Water Heater
Diameter
24 in."
Shipping Weight
185lbs
Vent Type
Atmospheric Vent
