Product Details
- Easy Installation—Plugs into a standard 120 volt wall outlet, & top water connections make it easy to replace an existing gas water heater
- Leak Protection Technology—Smart sensor alerts the user in the event of a leak

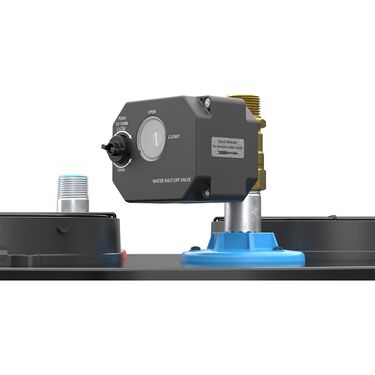

- Shutoff valve automatically closes when a leak is detected

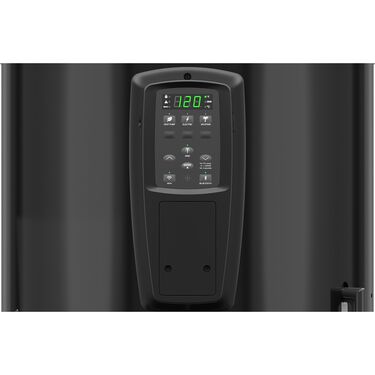

- Digital control makes it simple to set to preferred water temperature
- Whisper-Quiet Operation at 45 dBA
- Equipped with CTA-2045-A port to allow for participation in utility demand response programs for added energy savings
- Choose from Efficiency, Hybrid, or Electric modes for optimal performance and savings

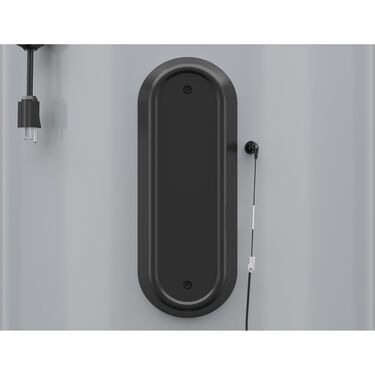

- Dual 900-watt elements, 120 VAC 60Hz single phase 15 amp shared circuit
- Patented Blue Diamond® glass tank lining protects against corrosion
- 10-year limited tank and parts warranty

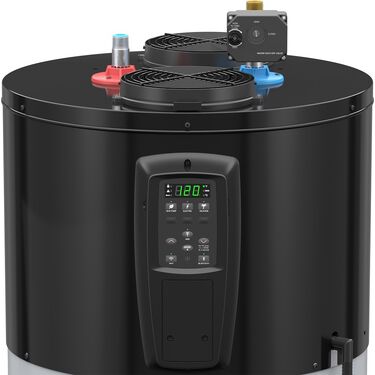

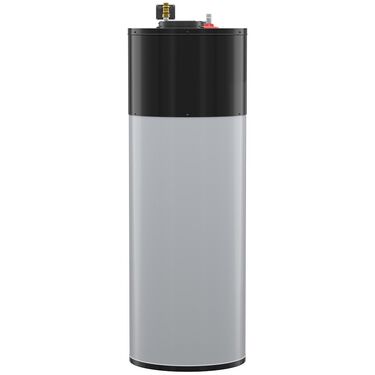

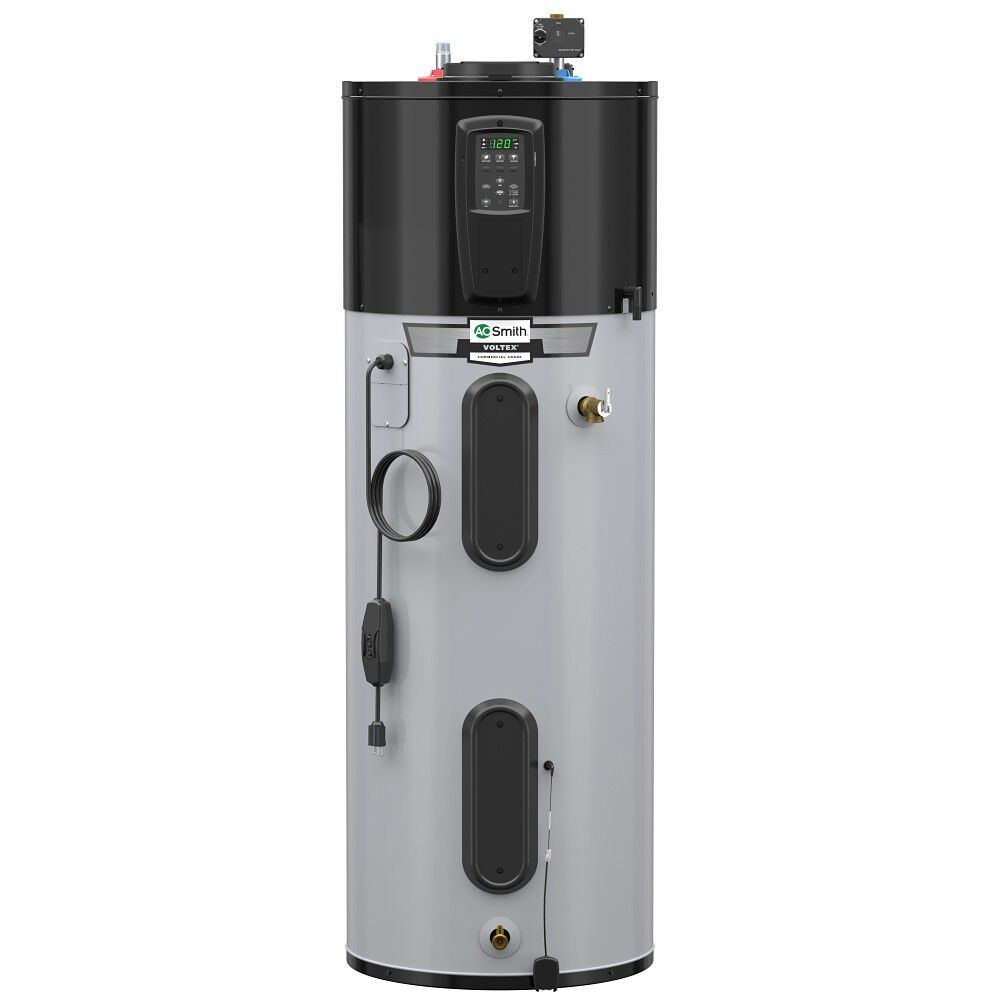

The Voltex® 120V Plug-In Hybrid Electric heat pump water heater from A. O. Smith Water Heaters makes it easier than ever for consumers to electrify to an energy-efficient option to save money on their utility bills. These models plug into a standard wall outlet for easy installation and provide annual savings up to $118 on utility bills* compared to a gas water heater. They have whisper-quiet operation at just 45 dBA.
Specifications
Tech Specs
Nominal Gallon Capacity
66 Gallons
Rated Storage Volume
68 Gallons
UEF
3.2
Power Source
ELECTRIC
Limited Tank Warranty
10 Years
Limited Parts Warranty
10 Years

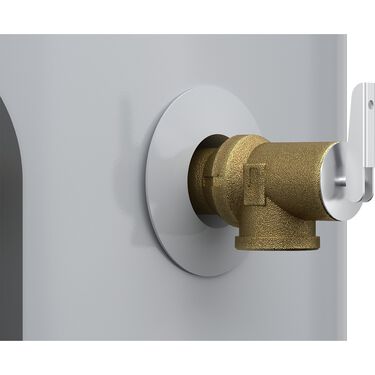

T&P Relief Valve
Yes
Water Connection Location
TOP
Water Connection Size
0.75"
First Hour Rating
76 Gallons
ASME Certified
No
NEEA Certified
Yes
Amperes
9.38
Destination Country
US
Digital Display
Yes
ENERGY STAR® Certified
Yes
Height to T&P
38.25
Installation Type
INDOOR
Max Wattage
900
Number of Elements
2
Application
RESIDENTIAL
Shipping Height
70"
Shipping Length
32"
Shipping Width
28.25"
Side Loop
No
Voltage
120
Dimension & Venting
Type
Water Heater
Height
64"
Diameter
26.5 in."
Width
26.5"
Shipping Weight
289 lbs
