How to Install Electric Water Heaters: What to Expect

Installing an electric water heater involves electrical work, plumbing connections, and local code requirements. Most manufacturers, including A. O. Smith, recommend professional installation to protect both your safety and your warranty coverage.

This guide walks you through what professional installers do during a typical installation. You'll learn what each step involves, why it matters, and what to expect from start to finish. Whether your water heater just failed or you're planning an upgrade, understanding the process helps you ask the right questions and choose a qualified contractor.

Electric water heater installation combines multiple trades and needs specific expertise to be done safely and correctly. A. O. Smith's ProLine® electric water heaters are built with commercial-grade components for durability, but even the best equipment needs proper installation to deliver reliable performance.

What the Job Involves

Installing an electric water heater means working with 240-volt electrical circuits. A. O. Smith's Voltex® 120V plug-in heat pump models offer a simpler alternative that can connect to a standard household outlet. For traditional electric tank water heaters and most heat pump models, 240-volt circuits are required—this is different from the standard 120-volt wiring that powers most outlets in your home.

The plumbing work involves connecting water lines under pressure. Get it wrong, and you're looking at significant water damage. You're also moving a heavy appliance—40 to 80-gallon tanks weigh hundreds of pounds empty and much more when full.

Building codes govern water heater installation, and requirements vary by location. What works in one city might not meet standards in the next. This is where A. O. Smith's certified installer network makes a difference—these professionals know local codes and proper installation requirements for A. O. Smith products.

Why Professionals Make Sense

Safety comes first with 240-volt electrical work. Professional electricians know how to handle these circuits without creating hazards. They verify power is off, make proper connections, and meet safety standards.

Code compliance protects you. A. O. Smith's network of certified installers understands local requirements for electrical circuits, plumbing connections, drain pans, expansion tanks, and more. They pull the necessary permits and coordinate inspections. Most homes operate as closed plumbing systems, which means all tank-type water heaters require thermal expansion tanks to safely manage pressure changes as water heats and expands. Your installer will assess your system and install an expansion tank if needed. You won't face problems later when selling your home or filing an insurance claim.

Water heater warranties require professional installation. A. O. Smith stands behind its products with strong warranty coverage, but that protection requires proper installation by qualified professionals. If something goes wrong with a unit that wasn't installed correctly, warranty coverage may not apply.

Time matters when you need hot water. A professional finishes installation in 2 to 4 hours. Without experience, this could take all day or longer. A. O. Smith's certified installers have the right tools, know potential problems, and can handle unexpected issues because they're trained on these systems.

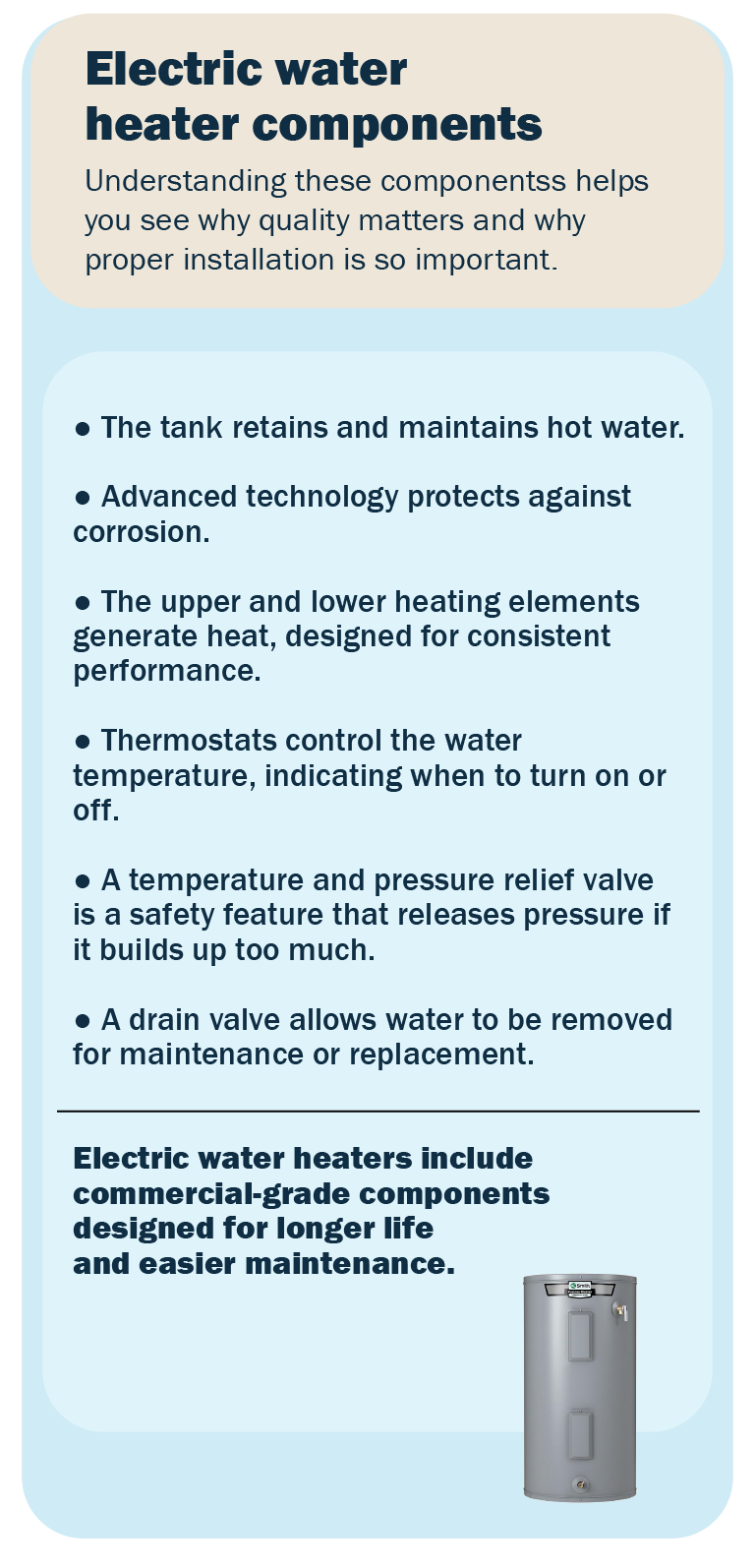

Thermostats control water temperature, telling heating elements when to turn on and off. The temperature and pressure relief valve is a safety feature that releases pressure if it builds up too much. The drain valve lets you remove water for maintenance or replacement—A. O. Smith designs these for easier draining and better sediment removal.

A. O. Smith's ProLine® electric water heaters include commercial-grade components designed for longer life and easier maintenance. These aren't standard residential parts—they're built to the durability standards used in commercial applications, which means better performance and fewer repairs over the unit's lifespan.

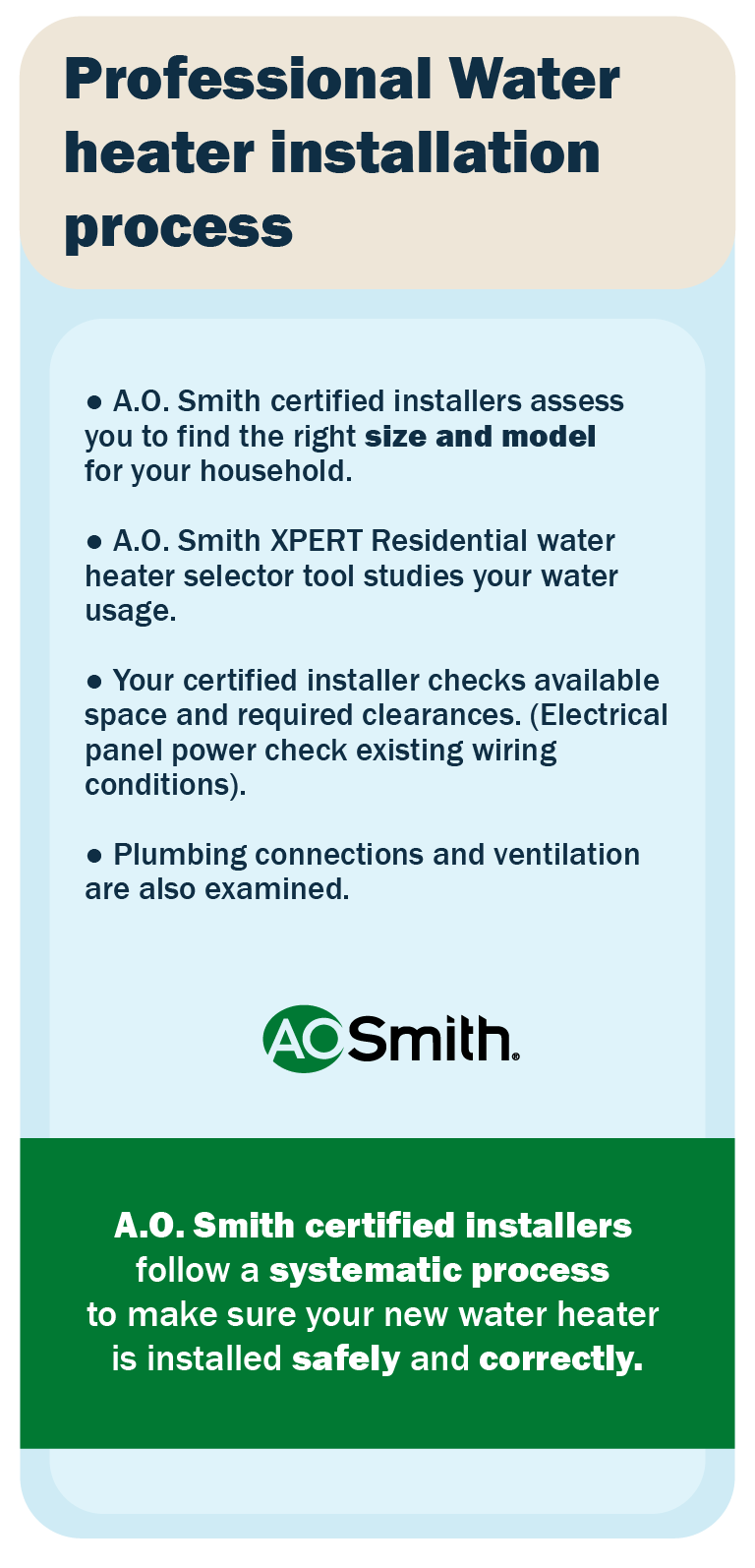

A. O. Smith's certified installers start by assessing your hot water needs and checking your current setup. This assessment makes sure you get the right size and model for your household.

Sizing Your New Water Heater

Getting the right size matters. Too small means running out of hot water. Too large means paying to heat water you don't use. A. O. Smith's XPERT Residential Water Heater Selector looks at peak hour demand, which is the busiest time for hot water in your house. It considers shower habits, whether people shower back-to-back or at the same time, and how many appliances use hot water.

The tool also factors in your local climate. Incoming water temperature varies significantly between Minnesota winters and Florida summers, which affects how hard your water heater works. The XPERT Selector accounts for your zip code to provide accurate sizing recommendations for A. O. Smith products.

The first hour rating tells you how much hot water a unit can deliver during that busy period when everyone needs it. A. O. Smith's ProLine® models are designed with strong first hour ratings to meet household demand without oversizing the tank.

Site Assessment

Your certified installer checks available space and required clearances. They look at your electrical panel to verify it can handle the water heater's power requirements. Existing wiring gets inspected for adequate gauge and condition.

Plumbing connections get examined to see what adapters or modifications might be needed. The installer checks for a drain pan or determines if one needs installation. For water heaters in confined spaces, ventilation matters.

Code requirements vary by location. Your A. O. Smith certified installer knows what your area requires for expansion tanks, seismic strapping, or electrical protection. They've been trained on proper installation practices and have access to A. O. Smith's technical support if questions come up.

Permits and Scheduling

Professional installers handle permit applications with your local building department. They schedule required inspections for electrical and plumbing work. They know local codes and understand what needs approval. They coordinate timing with you to minimize disruption.

Preparing the Installation Area

The floor gets checked for level, with corrections made if needed. A proper drain pan gets verified or installed—especially important if your water heater sits above living spaces. Adequate clearances per A. O. Smith's specifications are confirmed.

The installer makes sure there's good access to controls, the drain valve, and the temperature and pressure relief valve. A. O. Smith designs ProLine® units with maintenance in mind, but proper positioning during installation is still important.

Installing Your New A. O. Smith Water Heater

The new ProLine® unit goes in the drain pan and gets leveled. Proper leveling affects performance and drainage. The installer positions it for optimal access to all components you might need to reach.

The cold water inlet and hot water outlet get oriented correctly. Proper clearances on all sides allow safe operation and maintenance access.

The temperature and pressure relief valve prevents dangerous pressure buildup. It needs correct installation with a proper discharge pipe. That pipe must be the correct diameter to match the valve outlet and made from appropriate materials like copper or CPVC, depending on local codes.

The discharge pipe ends at the correct height above the floor—typically 6 inches. It can't have restrictions or caps on the end because it needs to discharge freely if the valve opens. Wrong installation of this component creates serious safety hazards.

Water line connections use dielectric unions, which prevent corrosion between dissimilar metals. Cold water supply connects to the inlet. Hot water outlet connects to your household system. Flexible connectors often make installation easier.

Electrical Connections

This is where professional expertise matters most. Most residential electric water heaters need 240-volt circuits with proper wire gauge for the amperage—typically 10-gauge wire for a 30-amp circuit. The breaker size must match circuit requirements.

Inside the junction box, wires get connected properly with the ground wire connected to the green ground screw. All connections must be secure and code-compliant. Depending on local code, you might need a disconnect switch near the water heater or GFCI protection in certain locations like garages.

A. O. Smith's certified installers make sure all safety requirements are met and everything is wired to code. They've been trained on the electrical requirements specific to ProLine® models and understand how the system should operate. Mistakes here cause fires or electrocution—this isn't the place to cut corners.

Regular maintenance helps your ProLine® water heater last longer and work more efficiently. Most of these tasks are simple, though many homeowners prefer scheduling annual service calls with certified installers who can handle everything at once.

Once a year, drain a few gallons from the tank to flush out sediment that settles at the bottom. This sediment buildup reduces efficiency and can speed up corrosion. Test the temperature and pressure (T&P) relief valve to make sure this safety feature still works properly.

Every few years, check the anode rod. If more than 6 inches of the wire core is exposed, it's time for a replacement. Some A. O. Smith models use powered anode rods that never need replacing—one less thing to worry about.

Watch for changes in your water heater's performance. Rust-colored water, strange noises from the tank, visible leaks, or not enough hot water can all signal problems. Keep the area around your unit clear and note any unusual sounds or smells.

Most electric water heaters last 10-12 years with proper care. Keep track of when yours was installed—you'll need that information if you ever file a warranty claim. If you notice any performance issues, contact a certified A. O. Smith installer for diagnosis and repair.

A. O. Smith works with a network of certified installers who are trained on proper installation practices and familiar with our product specifications. These professionals are licensed, insured, and have access to A. O. Smith technical support if questions come up during installation.

Good installers do more than just swap out water heaters. They understand local building codes, pull the necessary permits, handle inspections, and can help you choose the right size unit for your home. They should offer clear pricing, realistic timelines, and provide warranties on their installation work.

When talking with potential installers, ask about their experience with A. O. Smith products and whether they're part of our certified network. Find out what their installation includes—like hauling away your old unit and providing all necessary materials. Ask how long the job typically takes and request references from recent installations.

Working with certified installers gives you an extra layer of protection. They understand A. O. Smith's warranty requirements and know how to install ProLine® features correctly for optimal performance. If issues come up, they can reach our technical support team directly rather than troubleshooting on their own.

A. O. Smith's ProLine® electric water heaters range from 30 to 80 gallons. The right size depends on more than just how many people live in your home—your hot water habits matter too.

As a starting point, 1-2 people typically need 30-40 gallons. Three people usually do well with 40-50 gallons. Four-person households often need 50-60 gallons, while five or more people generally require 60-80 gallons.

Your actual needs depend on how your family uses hot water. Do multiple people shower within the same hour each morning? Does someone take long showers or fill a large bathtub regularly? Do you run the dishwasher and washing machine during peak bathroom times? These patterns affect sizing more than just counting heads.

A. O. Smith's XPERT Residential Water Heater Selector accounts for your specific usage patterns and local climate. The tool factors in your incoming water temperature and recommends ProLine® models that match your needs without oversizing or undersizing.

ProLine® water heaters use commercial-grade components—not just marketing language, but actual parts built to commercial specifications. This includes heavier-duty heating elements, enhanced tank protection, and better-designed drain valves. These features deliver strong first hour ratings during peak demand, energy-efficient operation, and durability that outlasts standard residential models.
