ProLine XE® Voltex® AL 80-Gallon Smart Hybrid Electric Heat Pump Water Heater

Model HPTS-80 200
5 out of 5 Customer Rating
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getAggregateRating, 7ms
  • reviews, product
  • bvseo-msg: Unsuccessful GET. status = 'ERROR', msg = 'Not Found.';
Capacity (Gallons)

  • Delivers 95-gallon first hour rating
  • Save over $600 per year or $6,000 over 10 years in energy costs compared to standard electric water heaters
  • ENERGY STAR® certified, 4X more efficient than a standard electric water heater of similar gallon capacity
  • Product Details
    • Delivers 95-gallon first hour rating
    • Save over $600 per year or $6,000 over 10 years in energy costs compared to standard electric water heaters
    • ENERGY STAR® certified, 4X more efficient than a standard electric water heater of similar gallon capacity
    • Equipped with iCOMM Smart Connectivity allowing you to control your water heater & receive alerts/notifications via the A. O. Smith app
    • Leak Protection Technology includes leak detection & alerts, smart anode for added tank protection and optional automatic shut-off valve compatible
    • Up to $850 in Local Utility Rebates may be available in your area. See rebate finder for details

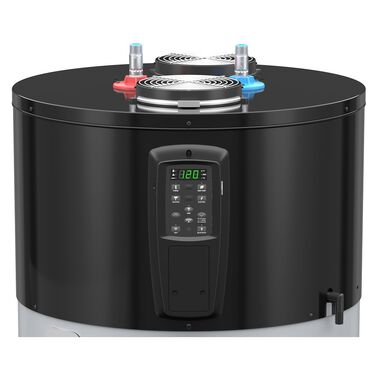

    • User-friendly electronic interface allows easy control of temperature setting, operating modes and communicates diagnostics
    • Flexible design includes top & front water connections and zero clearance requirements
    • Quiet operation in the industry at 45 decibels
    • 10-year limited tank and parts warranty

    • The Voltex AL Smart Hybrid Electric heat pump water heater from A. O. Smith is the most cost-effective, energy-efficient option available for consumers who want to save money on their utility bills. Voltex AL combines annual savings more than $600 per year* on utility bills with new leak protection features to support homeowner peace of mind like leak detection and optional automatic water shutoff.

      Featuring an 80-gallon tank, the HPTS-80 is an exceptionally efficient water heater with a 3.88 Uniform Energy Factor (UEF).

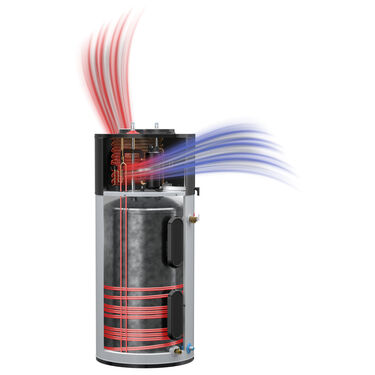

      This heat pump technology delivers tremendous savings by generating heat through the heat pump technology instead of the heating elements. It offers premium features including a user-friendly display, vacation mode to save money while you are away, and a heavy duty anode that protects your tank for 10 years. In addition to the heat pump technology, this model also has two heating elements that help the water heater recover quickly during periods of high demand. This Heat Pump is Northwest Energy Efficiency Alliance (NEEA) Tier 3 qualified.

      This ProLine® XE water heater is designed with A. O. Smith's superior commercial-grade tank protection. Advanced tank features include stainless steel CoreGard™ anode rod, Blue Diamond® glass lining and DynaClean™ automatic sediment-cleaning system, all designed to help protect the tank from the corrosive effects of water and extend the life of the water heater. All of these features are accompanied by a 10-year limited tank warranty.

      A. O. Smith’s ProLine® water heaters are residential products built to commercial-grade standards and are only available for purchase through professional wholesalers and contractors.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    80 Gallons
    Rated Storage Volume
    82 Gallons
    UEF
    3.88
    Power Source
    ELECTRIC
    Limited Tank Warranty
    10 Years
    Limited Parts Warranty
    10 Years
    T&P Relief Valve
    Yes
    Water Connection Location
    BOTH
    Water Connection Size
    0.75"
    First Hour Rating
    95 Gallons
    ASME Certified
    No
    NEEA Certified
    true
    Amperes
    23.6
    Destination Country
    US
    Digital Display
    true
    ENERGY STAR® Certified
    true
    Height to T&P
    54.50
    Installation Type
    INDOOR
    Max Wattage
    4,500
    Number of Elements
    2
    Application
    RESIDENTIAL
    Product Tier
    ProLine® XE
    Shipping Height
    78"
    Shipping Length
    32"
    Shipping Width
    28.25"
    Side Loop
    No
    Voltage
    208 - 240
    Dimension & Venting
    Type
    Water Heater
    Height
    69"
    Diameter
    26.5 in."
    Width
    26.5"
    Shipping Weight
    307lbs
    Maintenance & Troubleshooting
    Troubleshooting

    ProLine XE® Hybrid Electric Heat Pump Water Heater - Top Service Items - 001 Error Code

    ProLine XE® Hybrid Electric Heat Pump Water Heater - Top Service Items - 021 Error Code

    ProLine XE® Hybrid Electric Heat Pump Water Heater - Top Service Items - 022 Error Code

    ProLine XE® Hybrid Electric Heat Pump Water Heater - Top Service Items - 044 Error Code

    ProLine XE® Hybrid Electric Heat Pump Water Heater - Top Service Items - 048 Error Code

    ProLine XE® Hybrid Electric Heat Pump Water Heater - Top Service Items - 081 Error Code

    ProLine XE® Hybrid Electric Heat Pump Water Heater - Top Service Items - Condensate Pump Installation

    ProLine XE® Hybrid Electric Heat Pump Water Heater - Top Service Items - Replacing the Lower Heating Element

    ProLine XE® Hybrid Electric Heat Pump Water Heater - Top Service Items - Replacing the Upper Heating Element

    Marketing Videos
    ProLine XE® AL Smart Hybrid Electric Heat Pump Water Heater - Application and Installation
    ProLine XE® AL Smart Hybrid Electric Heat Pump Water Heater - Counter Loop
    ProLine XE® Hybrid Electric Heat Pump Water Heater - Features and Benefits
    ProLine XE® Voltex® AL Smart Hybrid Electric Heat Pump Water Heater - How it works
    Take advantage of market incentives with ENERGY STAR® A.O. Smith water heaters
