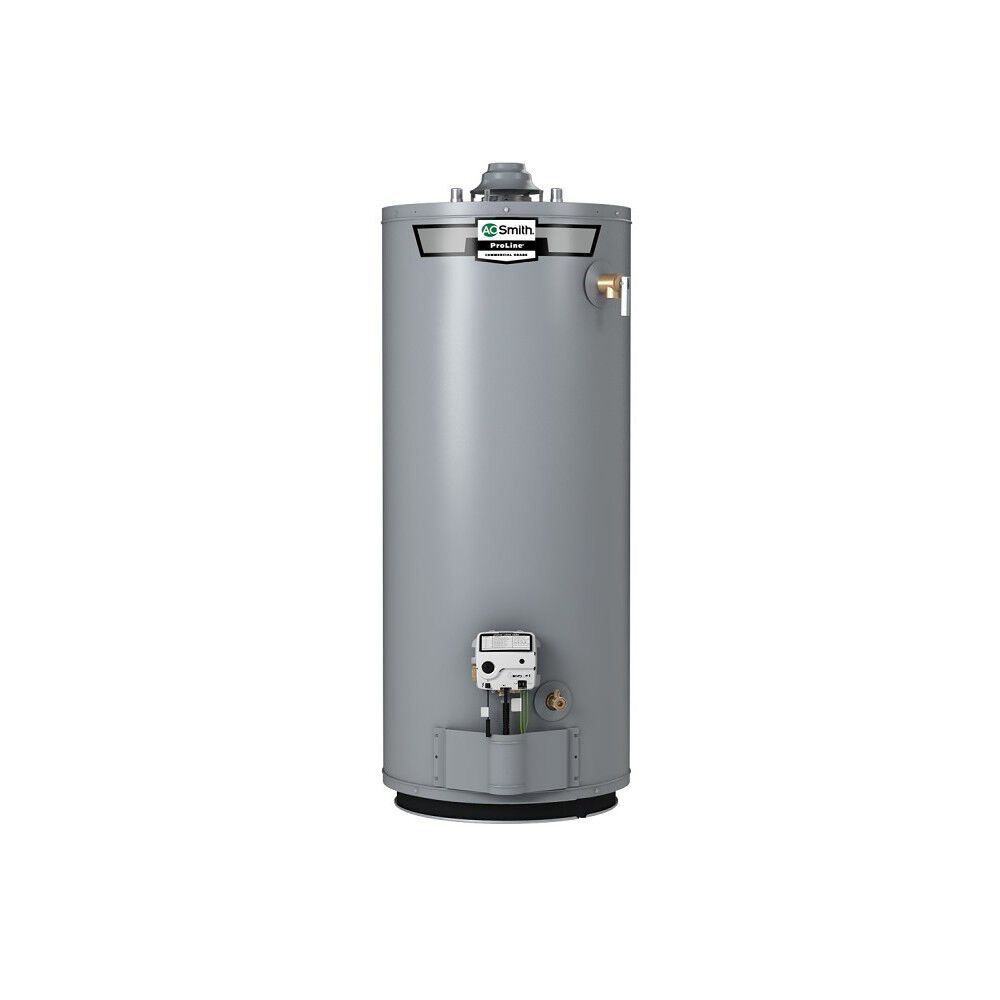

ProLine® 30-Gallon Atmospheric Vent Short Natural Gas Water Heater

Model XCRL-30 400
3.1 out of 5 Customer Rating
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getAggregateRating, 12ms
  • reviews, product
  • bvseo-msg: Unsuccessful GET. status = 'ERROR', msg = 'Not Found.';
Capacity (Gallons)
Limited Tank Warranty
Height Classification
Advanced Options
Fuel Source
Blanket
Find a Local Pro
What to Expect from this Model
modal-clock
tooltip
Number of minutes you can enjoy a shower before running out of hot water. Assumes a 2.1 GPM flow rate
19 minutes
single shower length
modal-frame
tooltip
Number of back-to-back showers you can take without running out of hot water. Assumes a 2.1 GPM flow rate and an 8 minute shower length
2.4 showers
back-to-back
modal-frame
tooltip
Number of showers you can take at the same time without running out of hot water. Assumes a 2.1 GPM flow rate and an 8 minute shower length
2 showers
at the same time
modal-tank-capacity
tooltip
Biggest tub this water heater will fill without running out of hot water. Assumes a 5.0 GPM flow rate, and a 67% fill level
50 gallons
max tub size
modal-cost
tooltip
The estimated annual cost to operate this water heater in your location
$301/year
est. energy cost
Based on location results for Columbus, OH 43215
modal-edit
Edit Location / Advanced Settings
Specifications
Tech Specs
Nominal Gallon Capacity
30 Gallons
Rated Storage Volume
28 Gallons
UEF
0.59
Thermal Efficiency
78%
Maximum BTUs
35,500
Power Source
GAS
Limited Tank Warranty
10 Years
Limited Parts Warranty
10 Years
Water Connection Location
TOP
Water Connection Size
0.75"
First Hour Rating
66 Gallons
ASME Certified
No
Blanket Included
No
Destination Country
US
Flue Diameter
4.00
Fuel Source
NATURAL
Height to Gas Valve
12.50
Height to T&P
39.50
Ignition Type
Pilot with Piezo Igniter
Installation Type
INDOOR
Application
RESIDENTIAL
Recovery Rise at 90°F
37
Shipping Height
49.94"
Shipping Length
24.13"
Shipping Width
21.13"
Side Loop
No
Dimension & Venting
Type
Water Heater
Height
46.25"
Diameter
20 in."
Shipping Weight
118lbs
Find a Replacement
Current Product
Option 2
ProLine® 30-Gallon Atmospheric Vent Short Natural Gas Water Heater

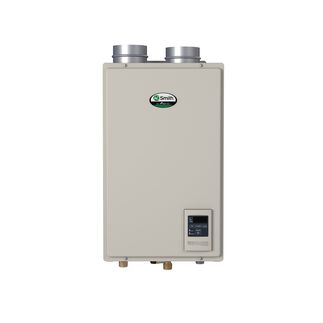

ProLine® XE Ultra-Low NOx Indoor 120,000 BTU Condensing Natural Gas Tankless Water Heater
XCRL-30
ATI-140H
current Product
option 1
Rebates up to $300 +
Rebates up to $300 +
Nominal Capacity
30 Gallons
Rated Storage Volume
28 Gallons
Diameter
20 in."
Width
13.87"
Depth
23.5"
10.81"
Height
46.25"
22.87"
Shipping Weight
118lbs
53lbs
Power Source
GAS
GAS
Limited Tank Warranty
10 Years
0 Years
Limited Parts Warranty
10 Years
5 Years
Water Connection Location
TOP
BOTTOM
Water Connection Size
0.75"
First Hour Rating
66 Gallons
Thermal Efficiency
78%
0%
